Overview

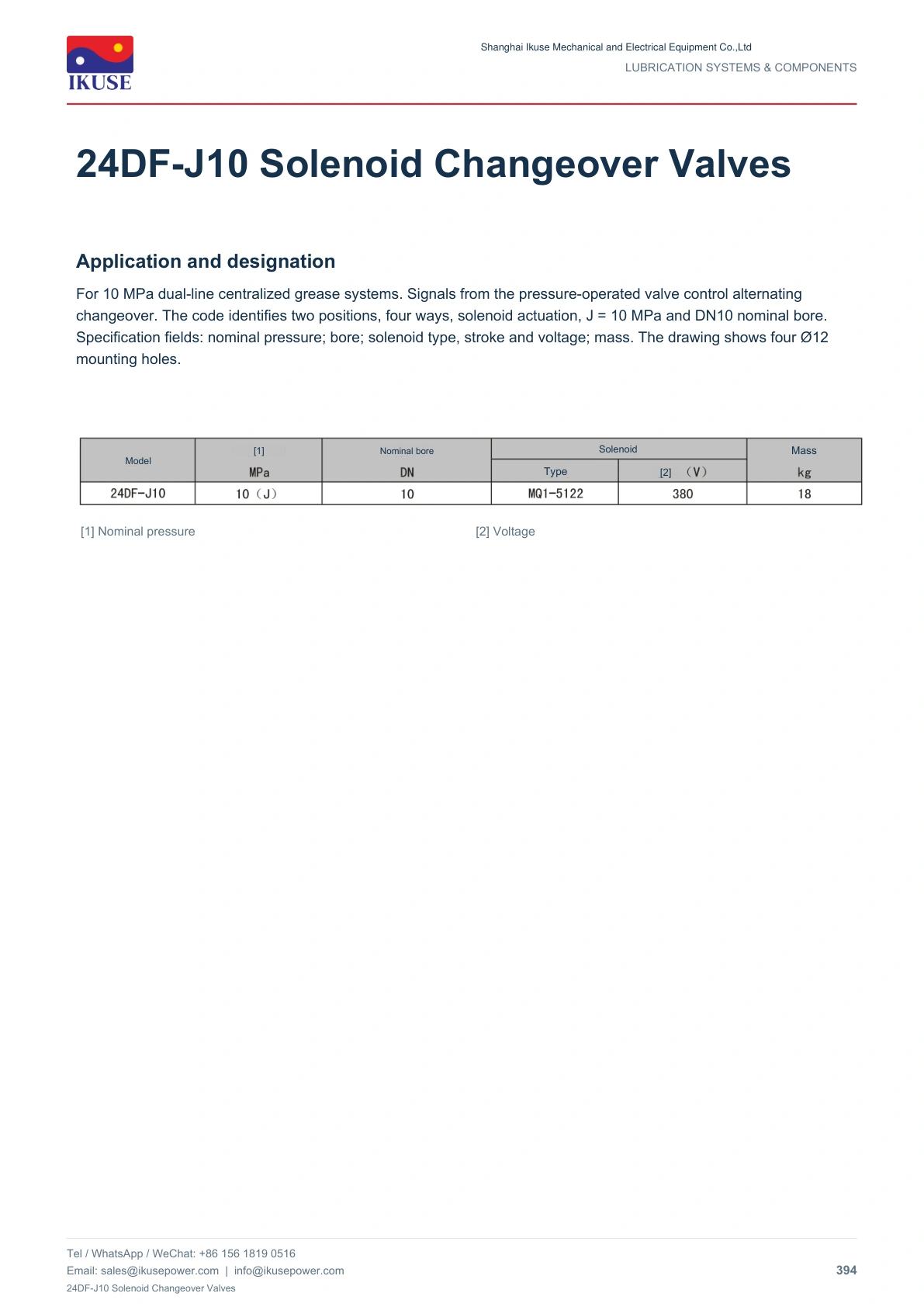

For 10 MPa dual-line centralized grease systems. Signals from the pressure-operated valve control alternating changeover. The code identifies two positions, four ways, solenoid actuation, J = 10 MPa and DN10 nominal bore. Specification fields: nominal pressure; bore; solenoid type, stroke and voltage; mass. The drawing shows four Ø12 mounting holes.
Selection and operation
Check the voltage, stroke and mounting dimensions of the associated solenoid.
Technical documentation
Specifications, installation dimensions and diagrams are provided in the following sheets and the attached PDF. Use the data for the selected model and configuration. Check the connections, operating medium and installation space before ordering.
