Overview
Combines an outer-ring flexible pin connection with a brake wheel for torque transmission and braking.

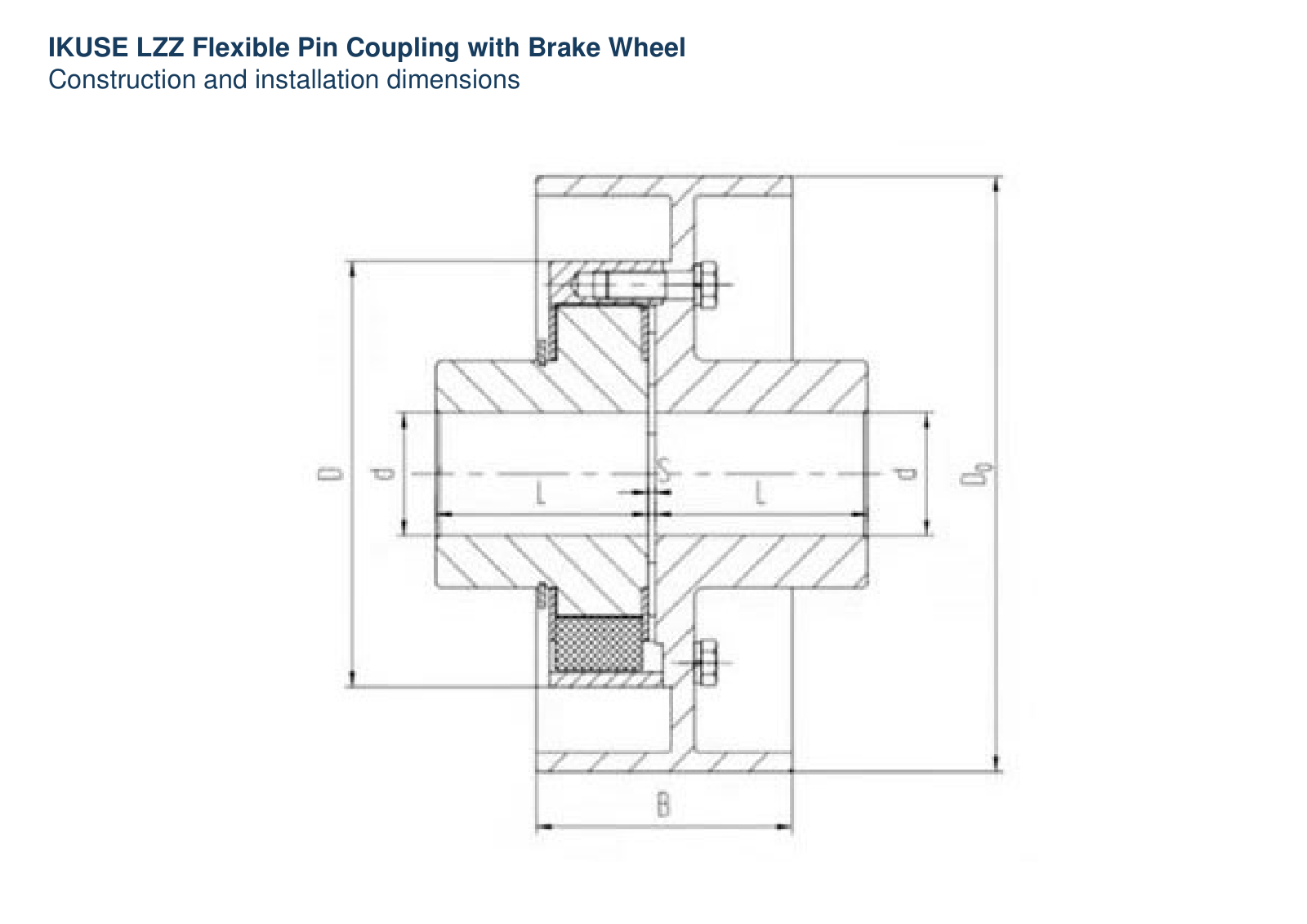

Construction
Pin-type torque transmission, brake wheel and replaceable elastic elements.
Applications
Industrial drives and general machinery equipped with a brake.

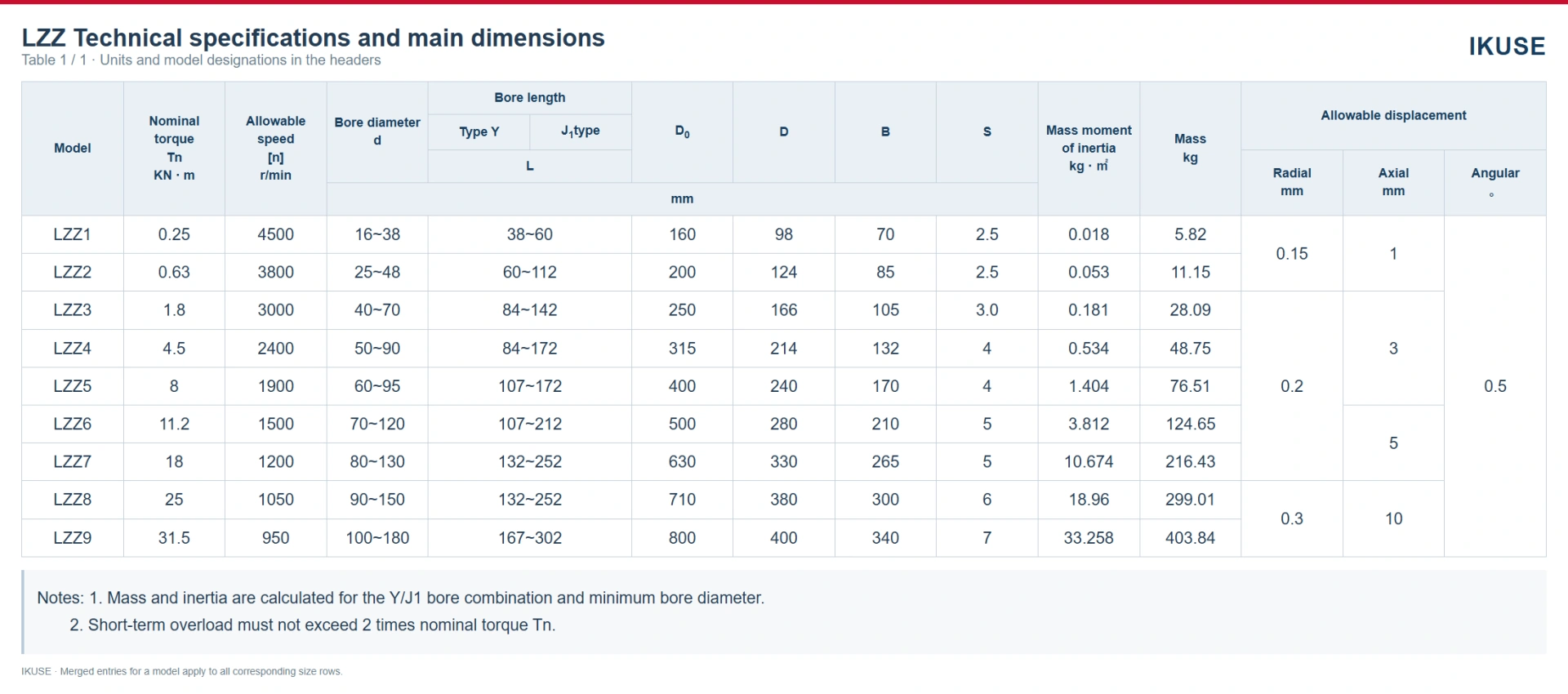

Selection
Check wheel dimensions, brake interface and speed together. Do not directly apply the dimensions of the basic LZ coupling.
Ordering information
Specify equipment type, transmitted power, operating speed, load characteristics, both shaft diameters and extension lengths, shaft-end separation and installation space. Include any brake, dynamic-balancing or elastic-element requirements.
