Product overview
Perforated wear components used at mill discharge or compartment boundaries. Grates, discharge plates and diaphragm parts require separate identification by function, location and assembly scope.
Design and configuration
Aperture or slot shape, dimensions, distribution, plate thickness and rear flow paths all affect the arrangement. Check individual segments, complete ring layout, supporting structures and part quantities.
Operating conditions and installation
Confirm whether the supply covers individual plates, a complete plate set or an assembly with supports. Mill grates must not be confused with crusher or cooler grates; changes to apertures require a review of equipment and process requirements.
Inspection and maintenance
Record wear location, remaining profile, impact marks, local damage, support and fixing condition. Reassess the lining when feed, media size or operating mode changes. For composite liners, also inspect rubber and interfaces.
Information for enquiries
Provide mill model, discharge or compartment arrangement, assembly and part drawings, aperture requirements, rear supports, fixing details, part numbers and quantities. State feed, grinding media and existing discharge or wear conditions.

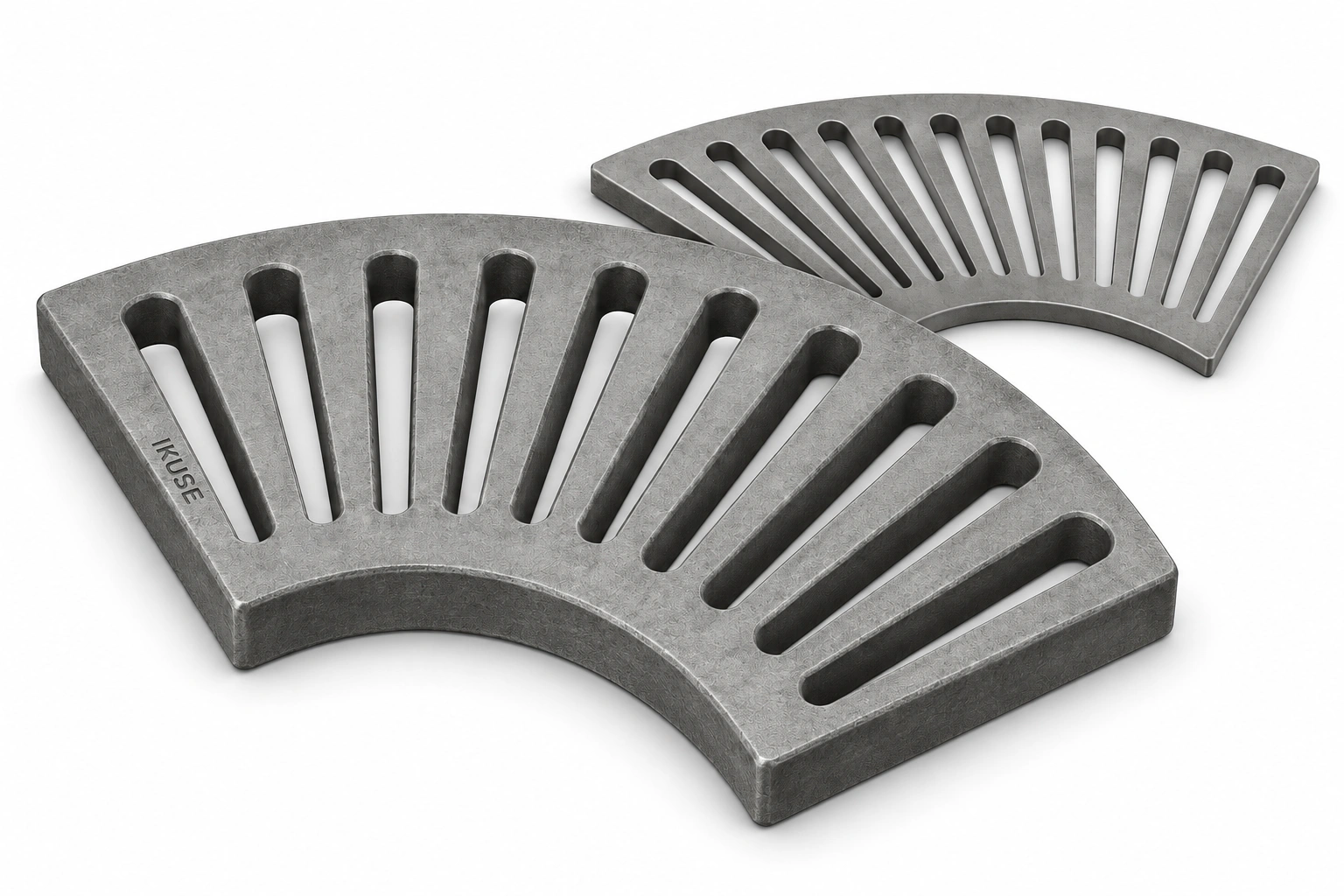

Product illustration
Illustrations show typical structural arrangements. Materials, dimensions, interfaces and supply scope are subject to the approved drawings and technical documents.
