IKUSE · Industrial Valves
Ball, gate, globe, check, control and butterfly valves.
Jacketed Valves

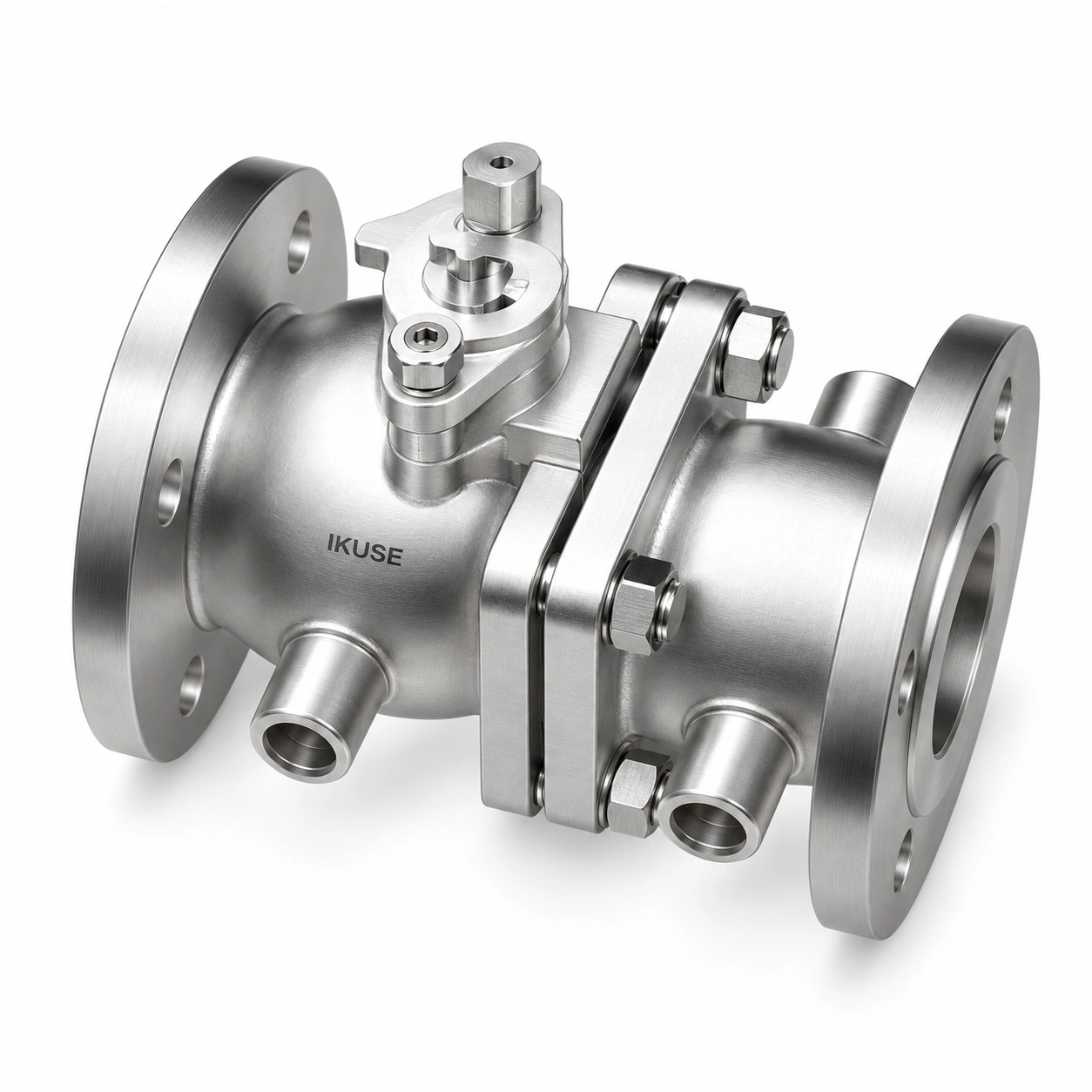

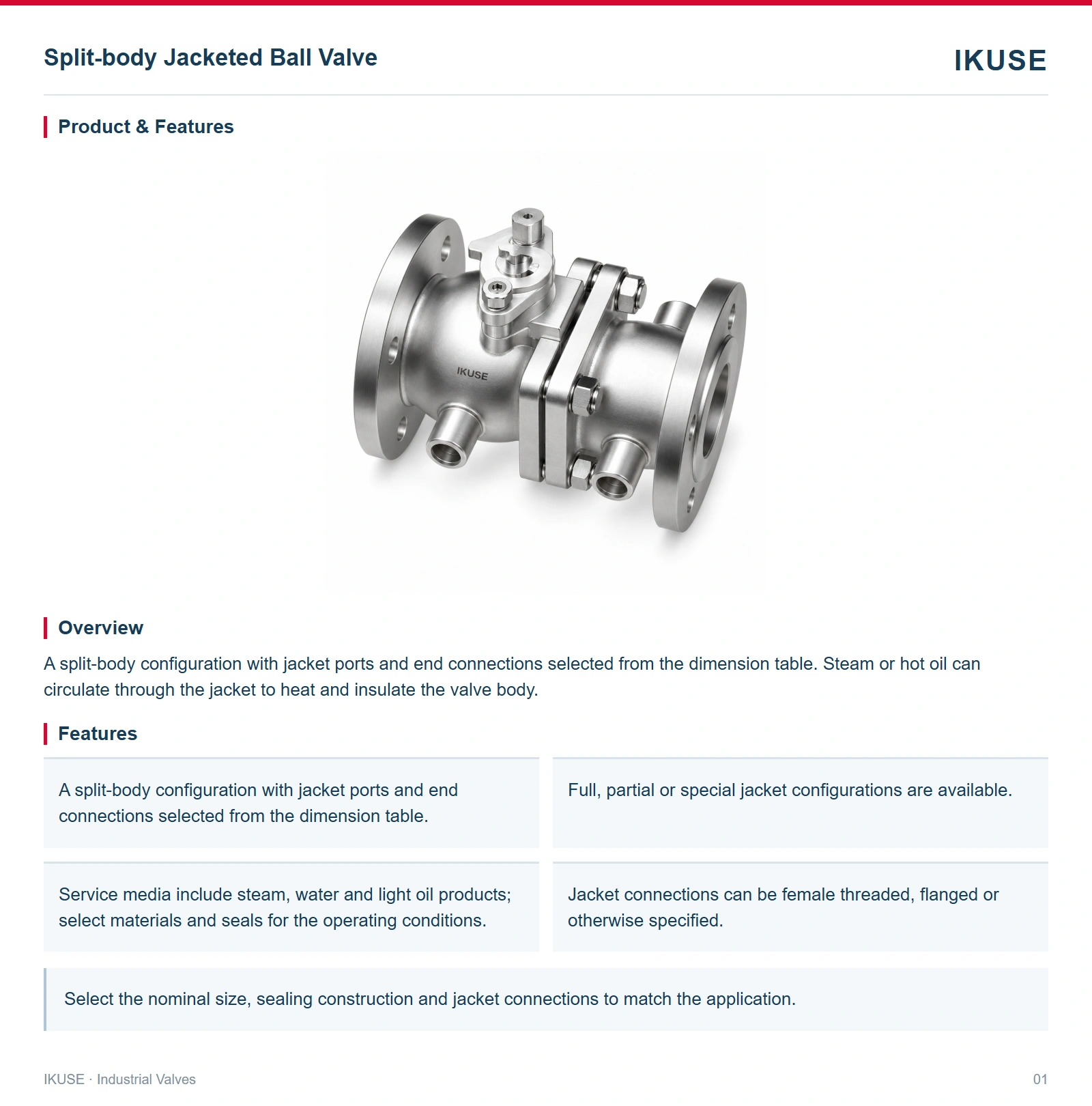

IKUSE Split-body Jacketed Ball Valve

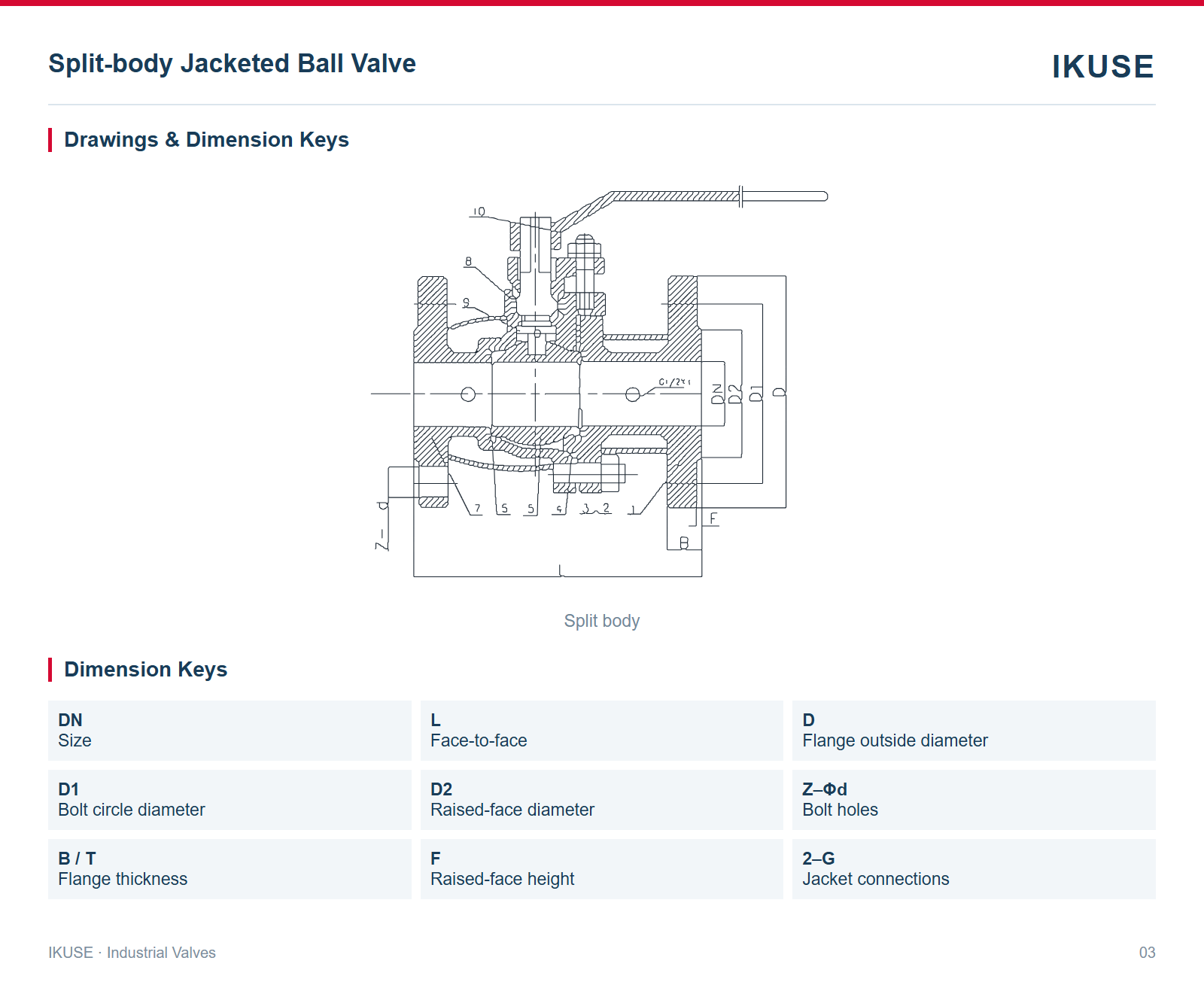

A split-body configuration with jacket ports and end connections selected from the dimension table. Steam or hot oil can circulate through the jacket to heat and insulate the valve body.
Price
Price on request
Submit requirements for a customized quote
PN
1.6 MPa
Seal
PPL
Size
DN15–200
Brand
IKUSE
Body material
304 / 316L
Service Hotline
+86 156 1819 0516

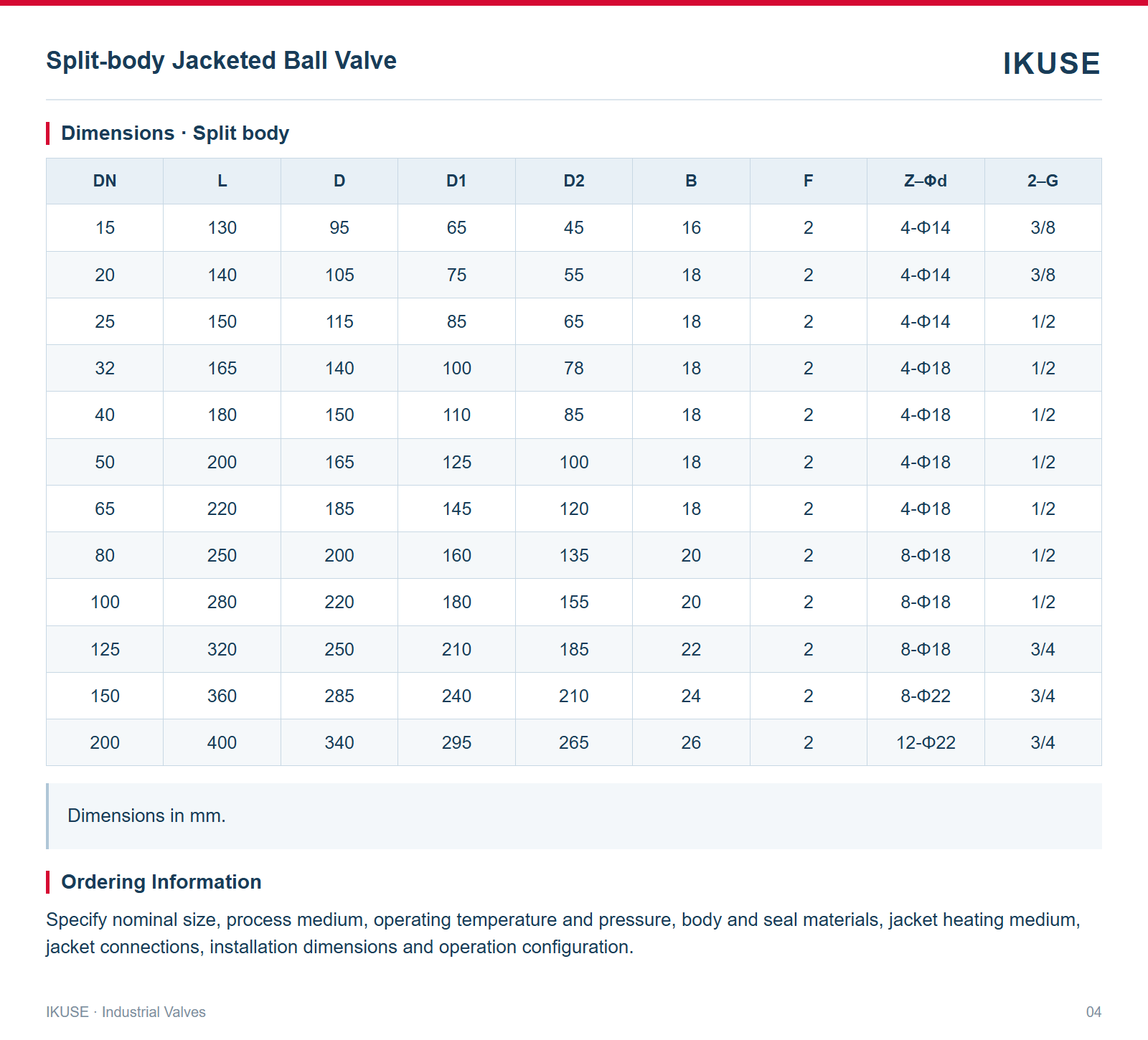

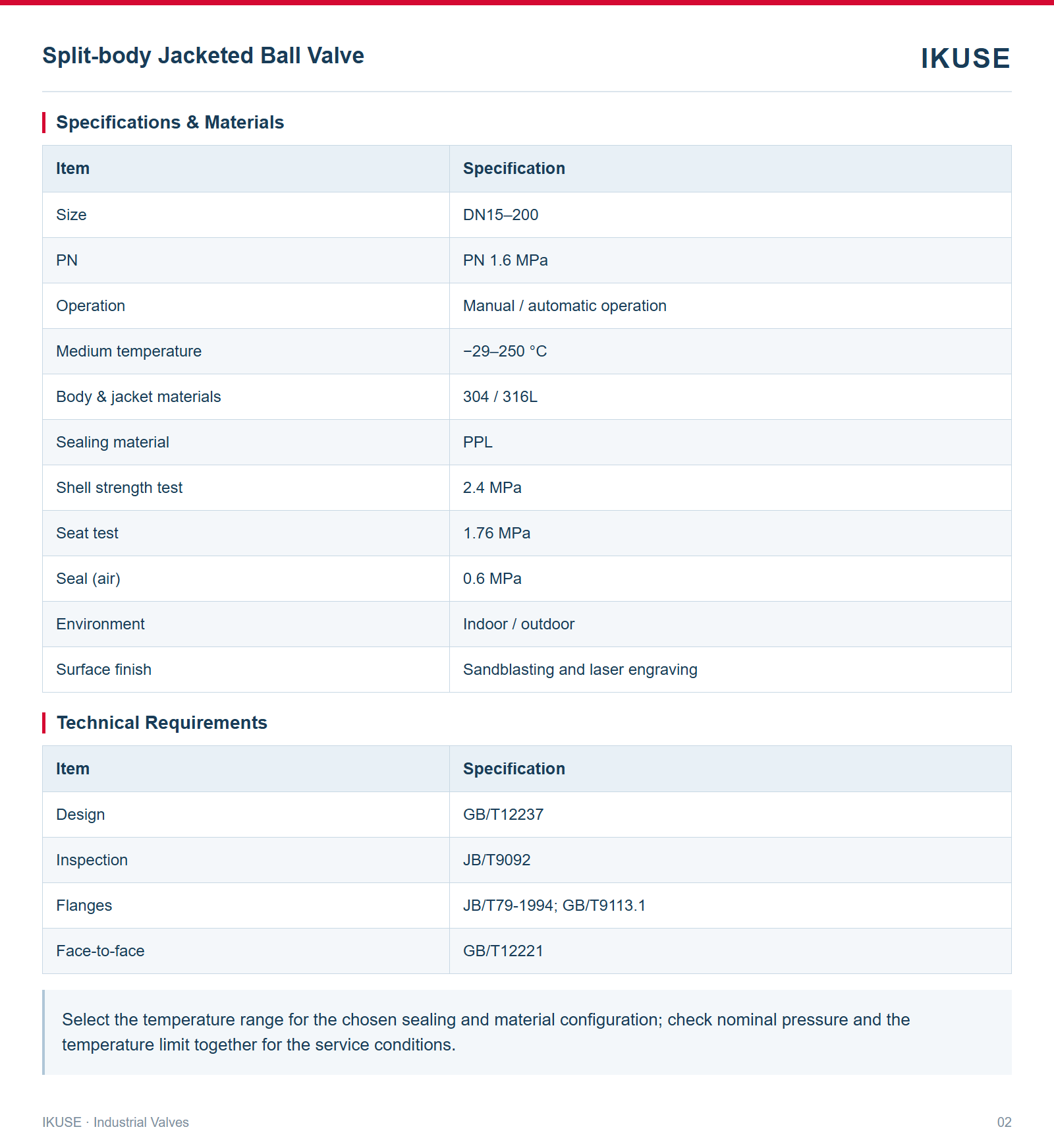

Technical Parameters
Technical Specifications
| PN | 1.6 MPa |
| Seal | PPL |
| Size | DN15–200 |
| Brand | IKUSE |
| Body material | 304 / 316L |
Product Details
