Overview

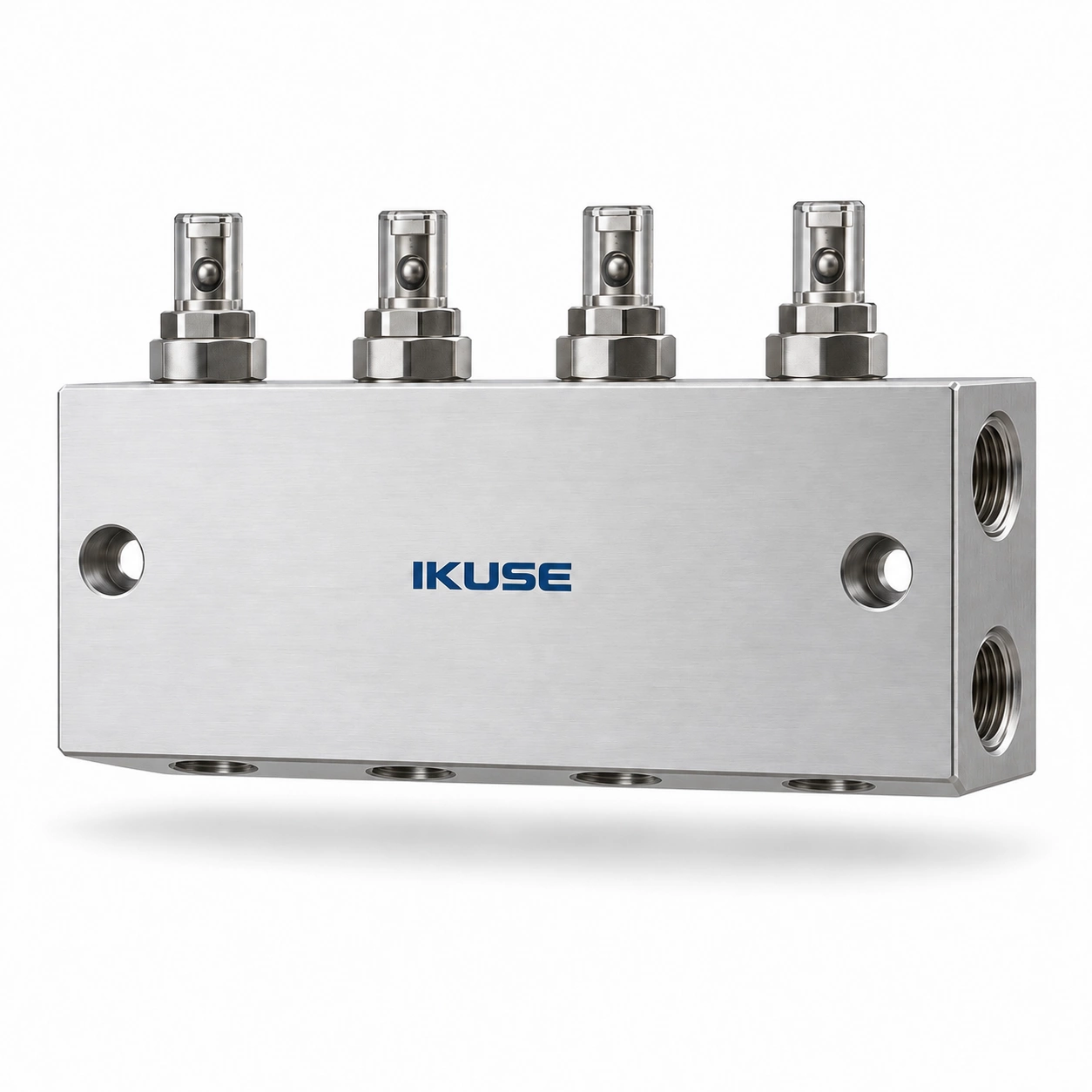

For 20 MPa dual-line centralized grease systems. All outlets are on the bottom and each receives lubricant on both piston directions. Indicator rods show operation; adjusting screws set delivery. Use the specified grease or oil above N68; the source gives penetration at least 265 × 0.1 mm and labels it NLGI 0-1. Ambient temperature: −10 to 80 °C. Operate below 10 MPa with oil.
Selection and operation
For oil service, reduce the pressure as specified in the catalogue. Select the version according to the number of outlets and delivery.
Technical documentation

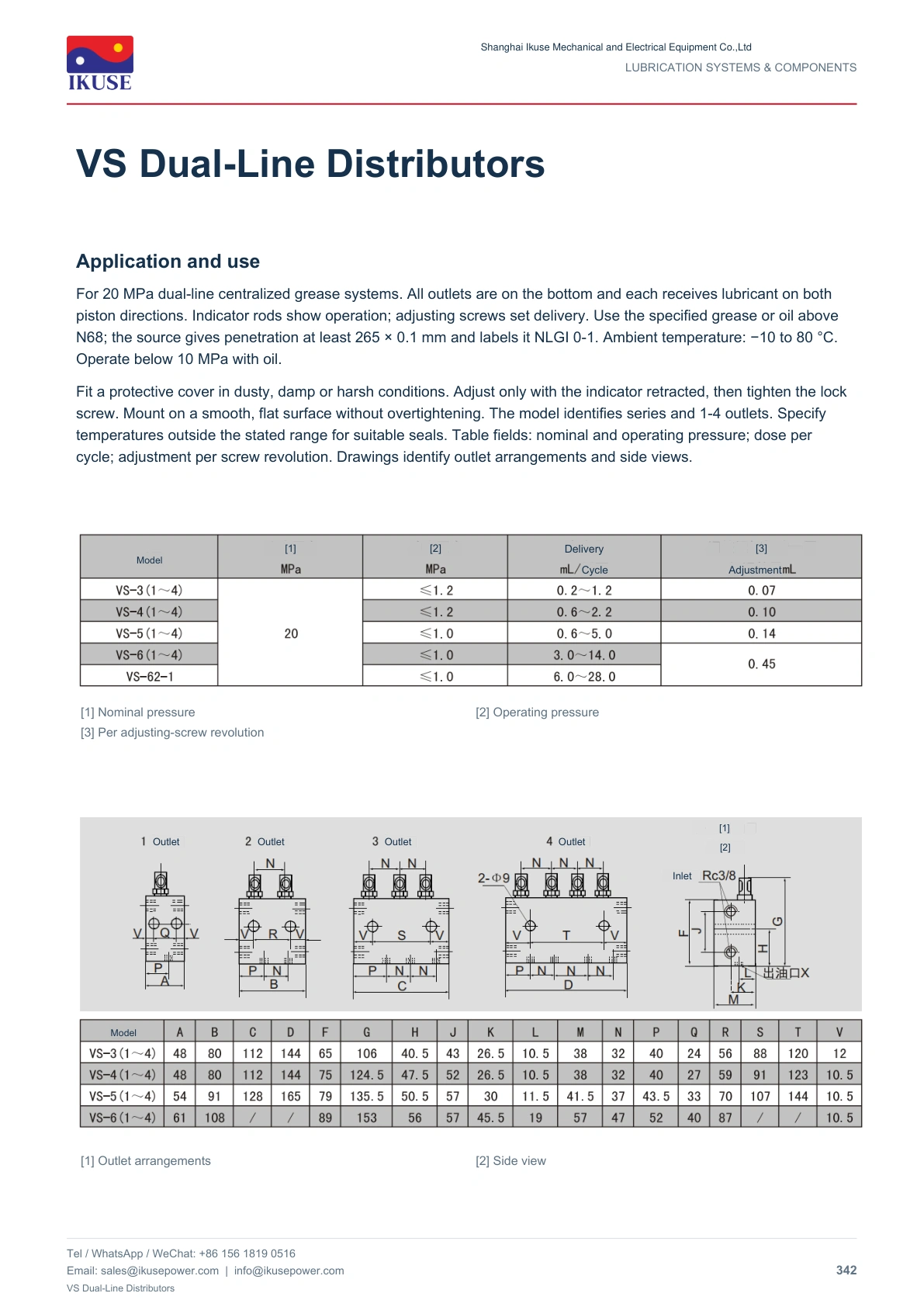

Specifications, installation dimensions and diagrams are provided in the following sheets and the attached PDF. Use the data for the selected model and configuration. Check the connections, operating medium and installation space before ordering.
