Overview
For the ends of the two mains in a 10 MPa electric end-of-line dual-line grease system. The assembly converts differential pressure to an electrical changeover signal. The valve and limit switch share a base. Supply pressure enters one piston chamber while the other unloads; at a difference of 3.5-4.5 MPa, the piston overcomes its spring and closes the switch contact. Reversing the mains reverses the movement.
Selection and operation
Connect a distributor downstream of the valve to renew the grease inside it. Allow access for inspection of the switch.
Technical documentation

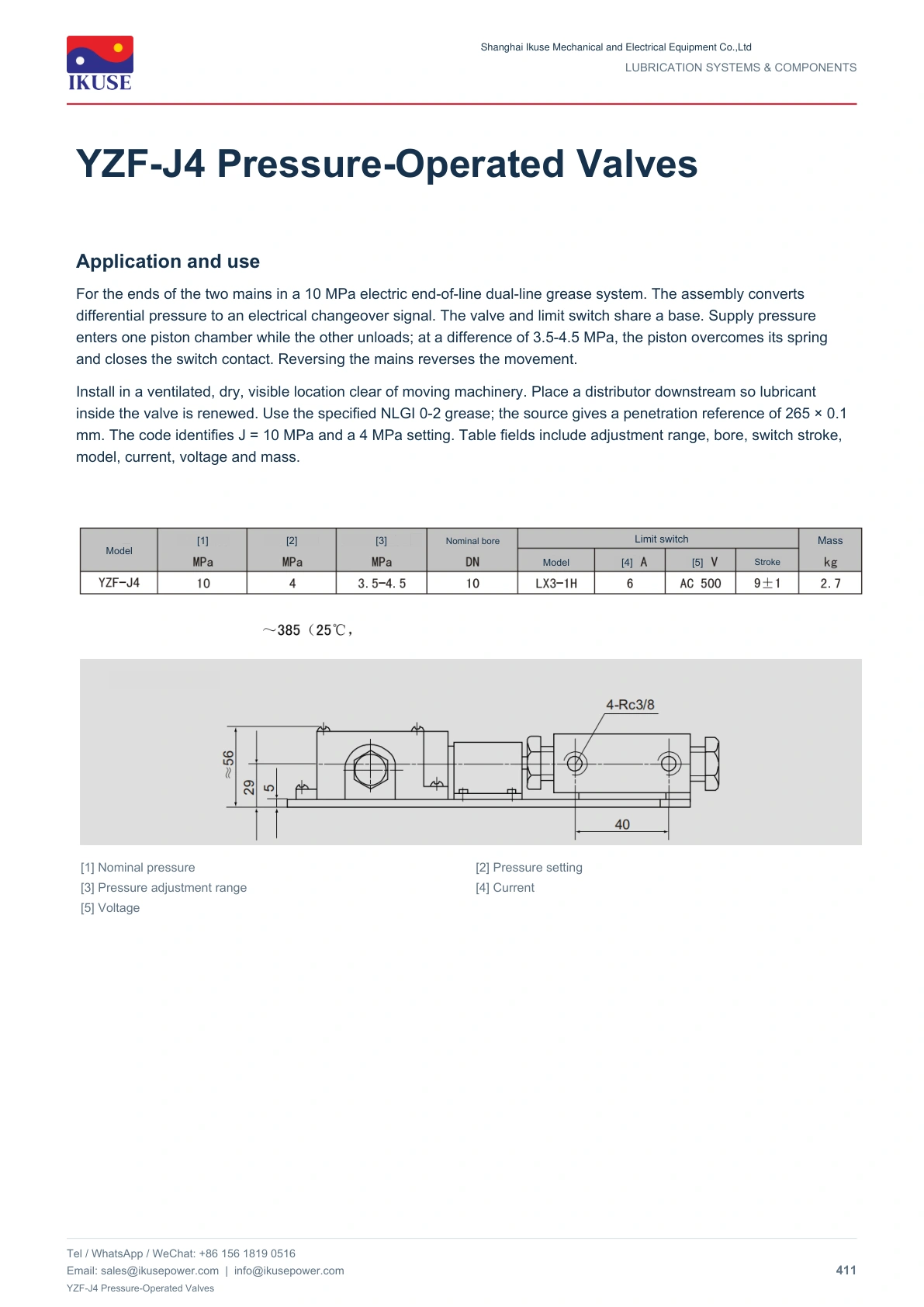

Specifications, installation dimensions and diagrams are provided in the following sheets and the attached PDF. Use the data for the selected model and configuration. Check the connections, operating medium and installation space before ordering.
