产品概述 / Overview
用于 10 MPa 双线集中喷射润滑系统，通过分配器向喷射阀定量供油，可用于开式齿轮、托轮及导轨等摩擦部位。
For 10 MPa dual-line centralized spray systems, metering oil through distributors to spray valves for open gears, support rollers and guideways.
For 10 MPa dual-line centralized spray systems, metering oil through distributors to spray valves for open gears, support rollers and guideways.
选型与使用 / Selection and Service

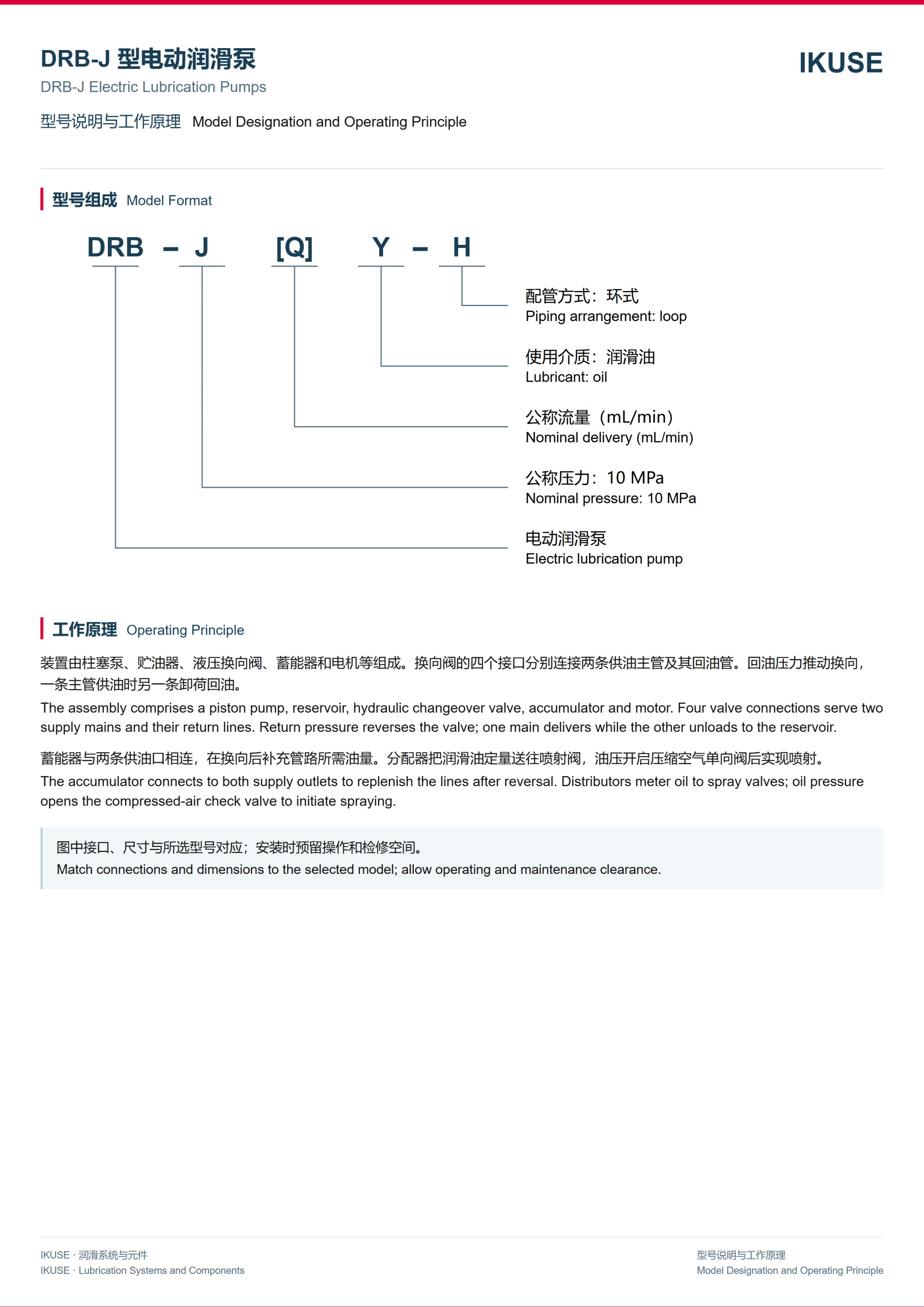

适用黏度不低于 120 cSt 的润滑油；环式管路配置包含换向阀和蓄能器。
Use lubricating oil of at least 120 cSt. The loop arrangement includes a changeover valve and accumulator.
Use lubricating oil of at least 120 cSt. The loop arrangement includes a changeover valve and accumulator.

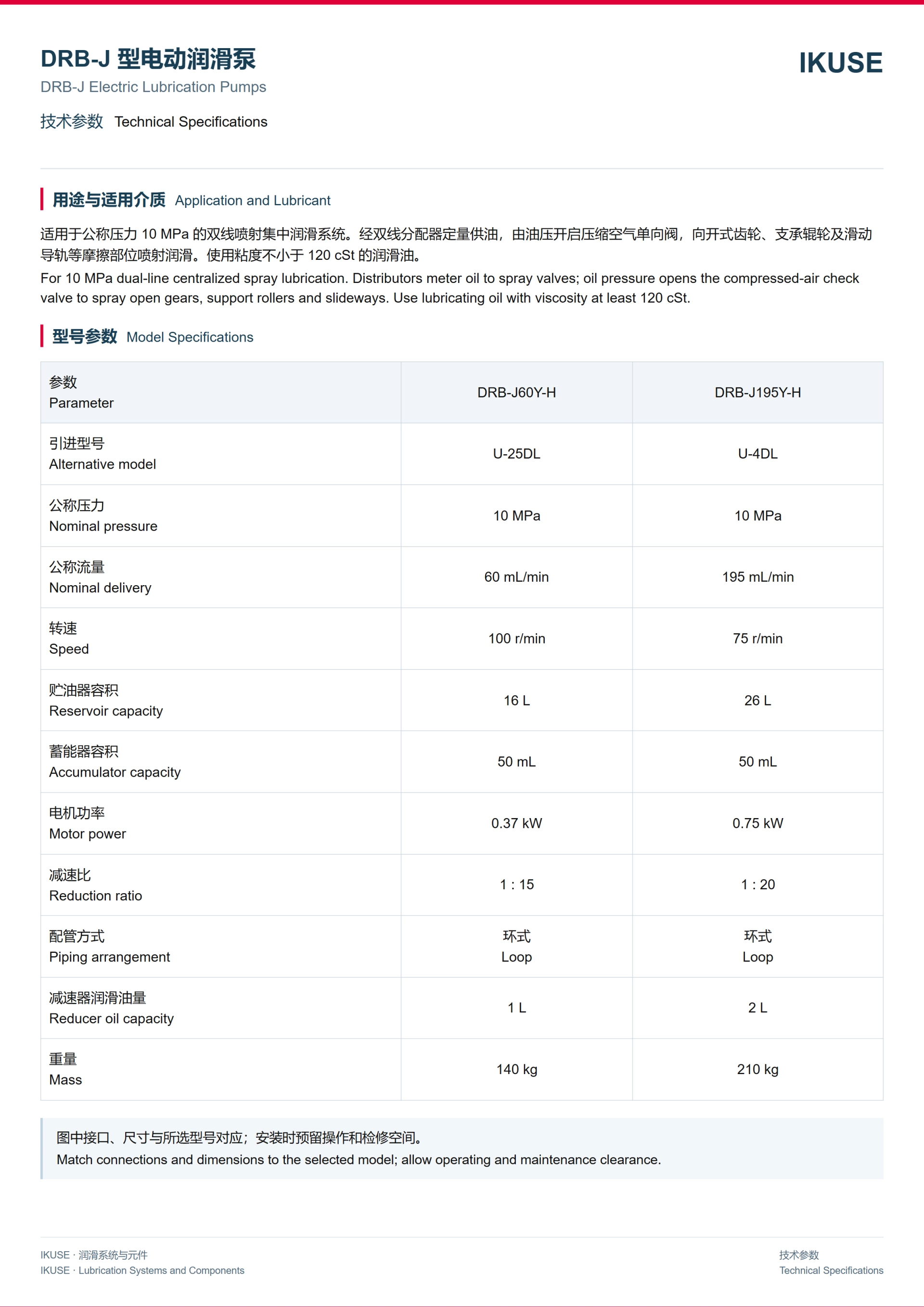

技术资料 / Technical Data

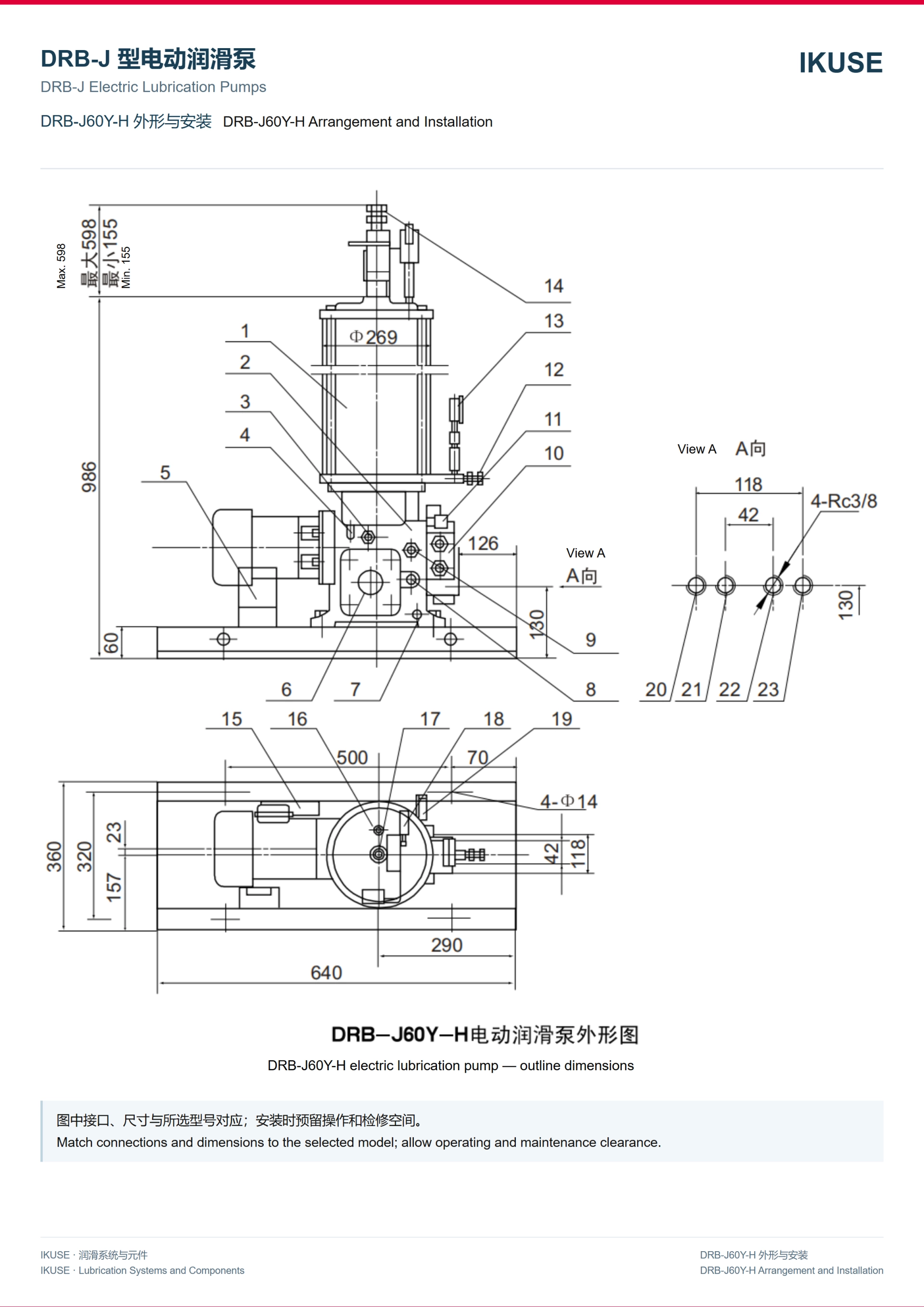

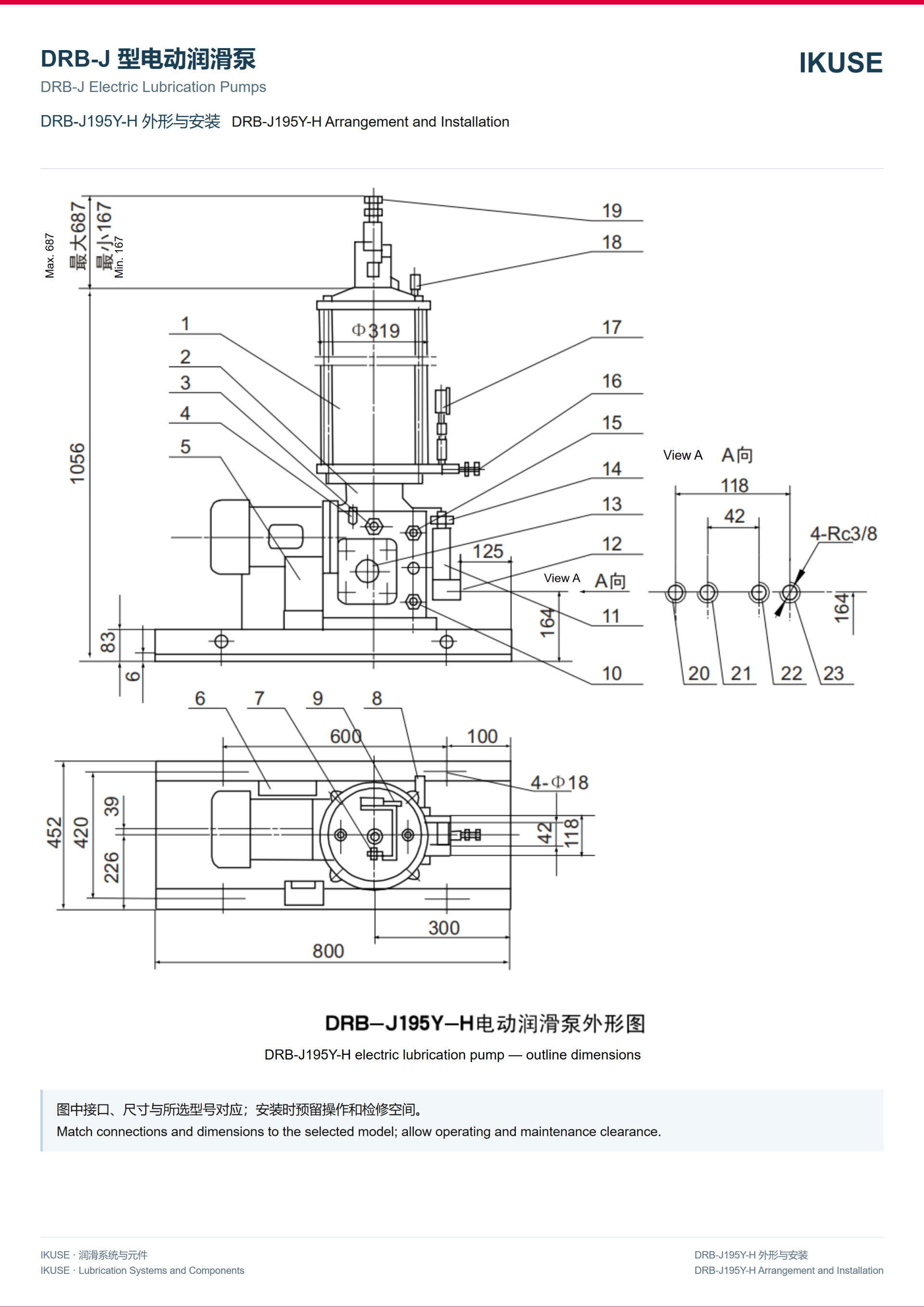

技术图表及安装尺寸按所选型号对应。接口形式、压力等级、适用介质及安装空间请结合对应规格确认。
Use the technical sheets and installation dimensions for the selected model. Check connection form, pressure rating, lubricant compatibility and installation clearance.
Use the technical sheets and installation dimensions for the selected model. Check connection form, pressure rating, lubricant compatibility and installation clearance.
