产品概述 / Overview

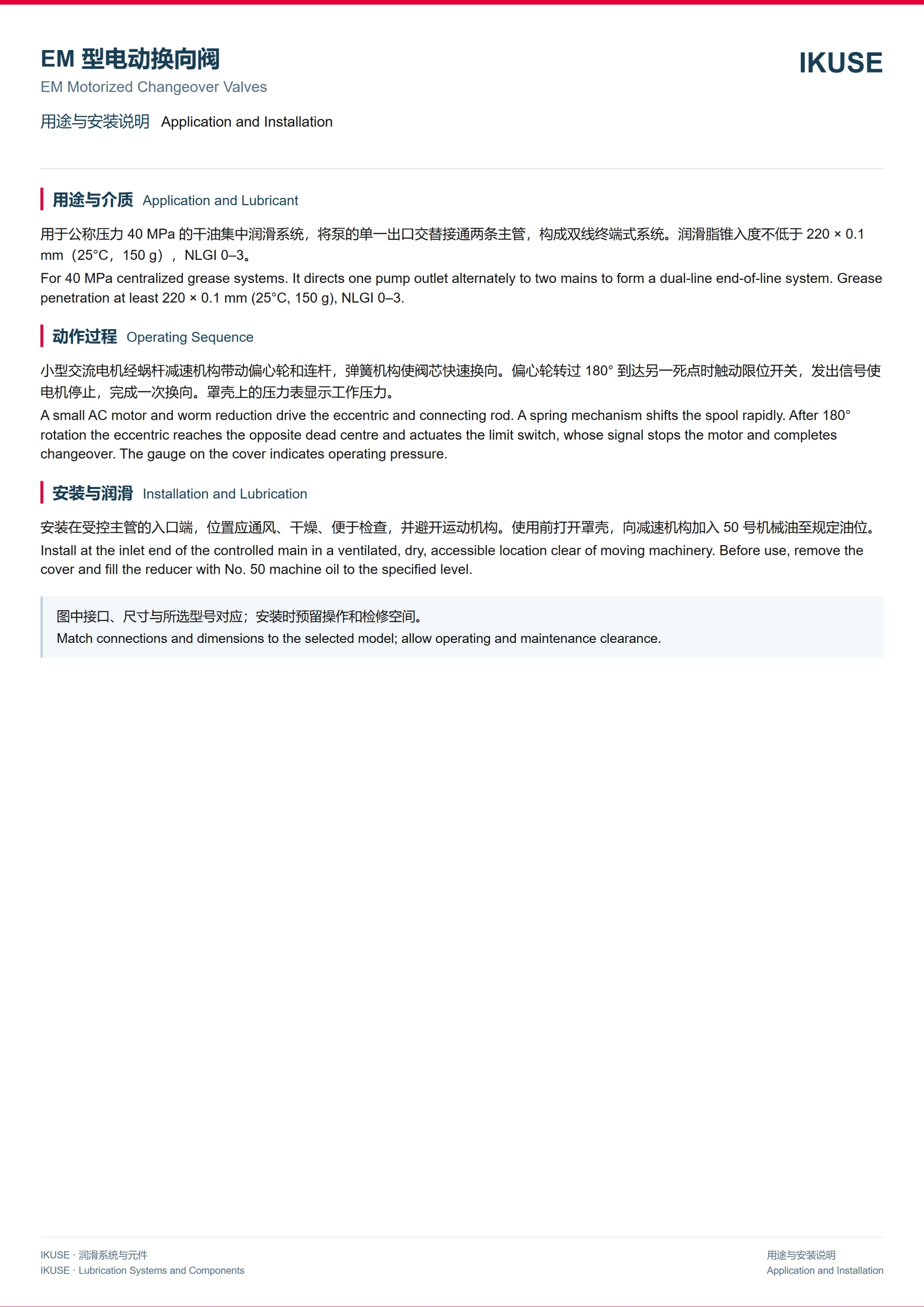

将润滑泵的单一出口交替接通两条主管路，用于 40 MPa 双线终端式集中润滑系统。
Alternately directs one pump outlet to two mains in 40 MPa dual-line end-of-line centralized systems.
Alternately directs one pump outlet to two mains in 40 MPa dual-line end-of-line centralized systems.
选型与使用 / Selection and Service

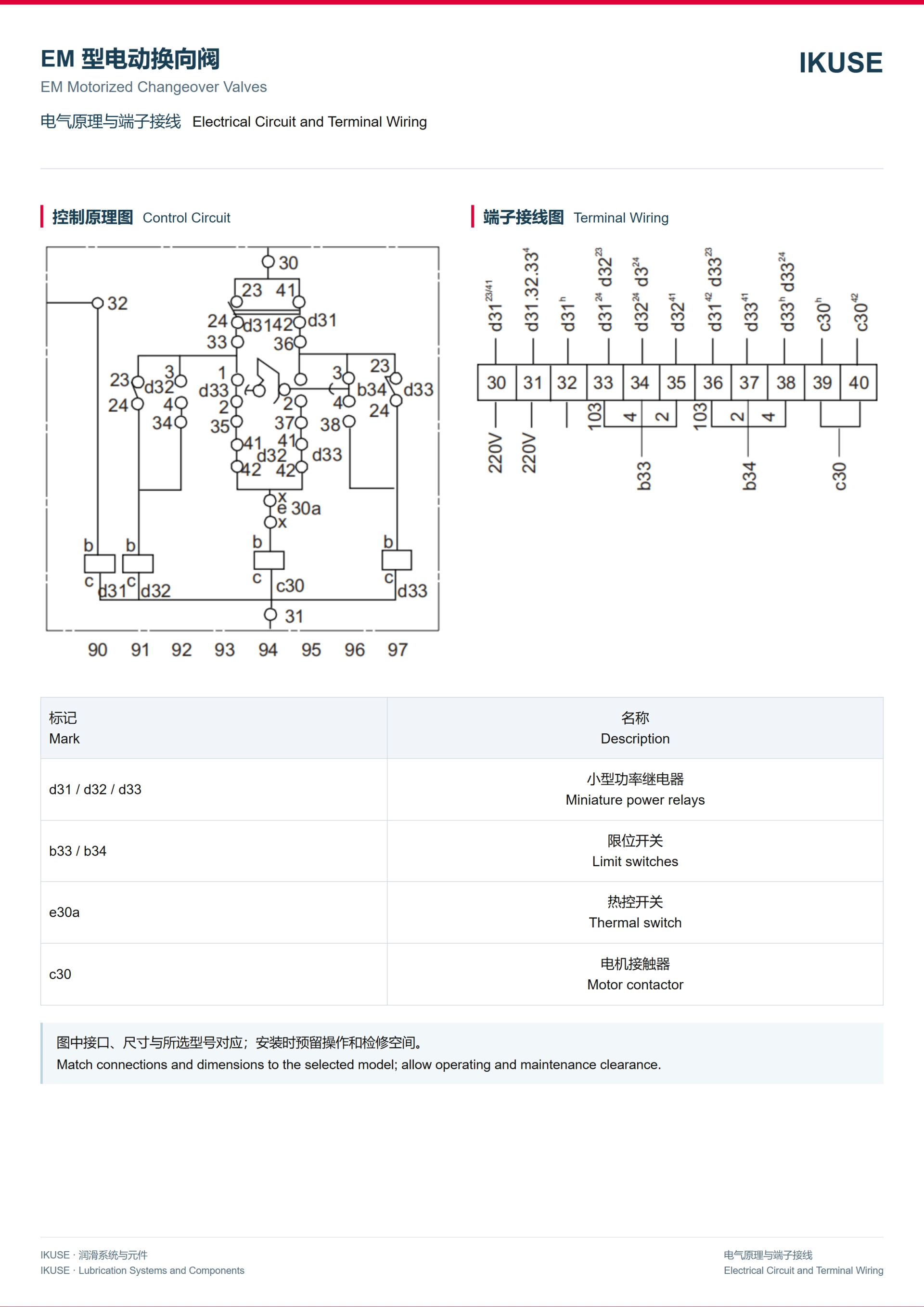

由限位开关反馈换向位置；安装于干燥通风且便于检修的位置。
Limit switches provide position feedback; install in a dry, ventilated location accessible for service.
Limit switches provide position feedback; install in a dry, ventilated location accessible for service.
技术资料 / Technical Data

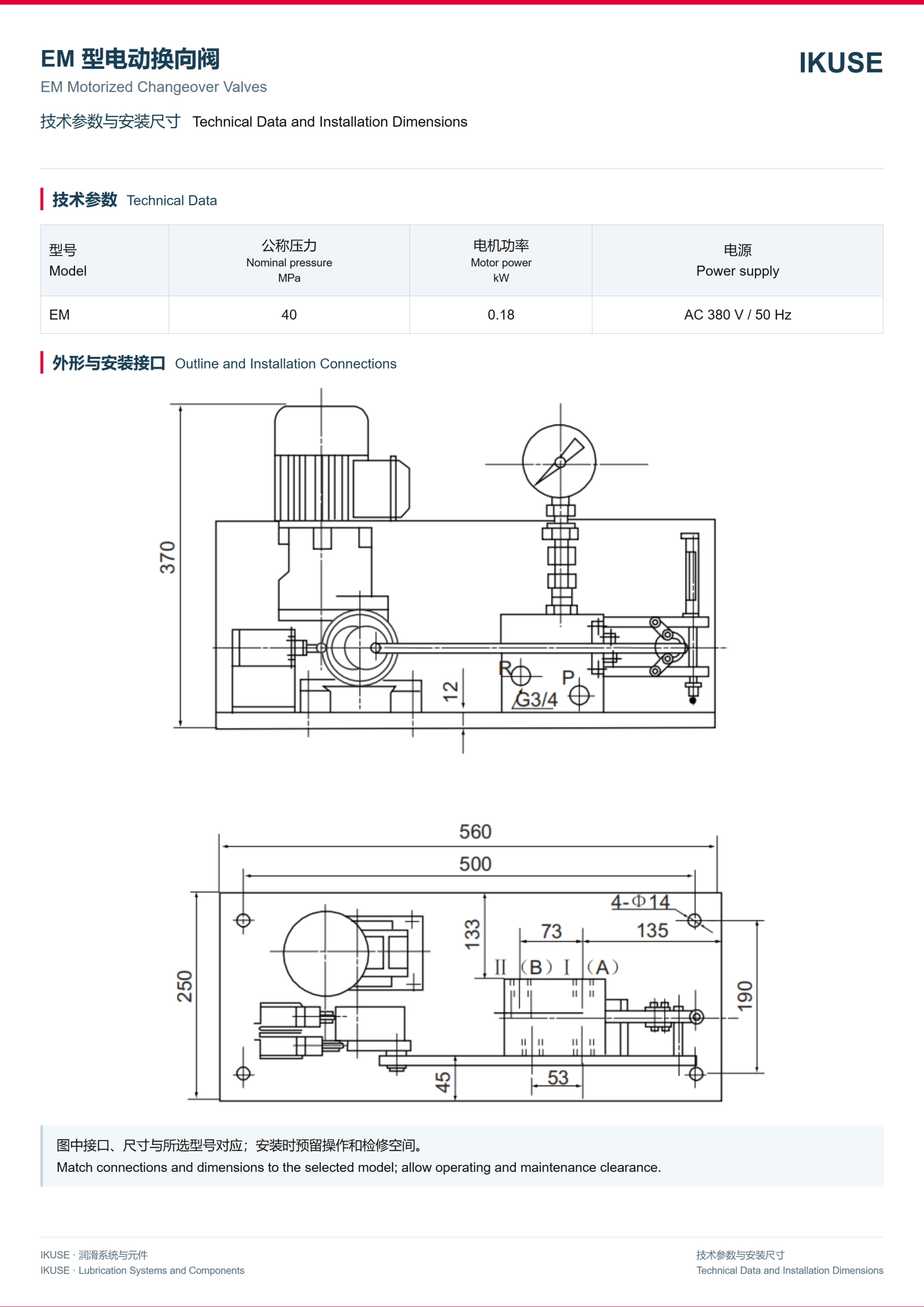

技术图表及安装尺寸按所选型号对应。接口形式、压力等级、适用介质及安装空间请结合对应规格确认。
Use the technical sheets and installation dimensions for the selected model. Check connection form, pressure rating, lubricant compatibility and installation clearance.
Use the technical sheets and installation dimensions for the selected model. Check connection form, pressure rating, lubricant compatibility and installation clearance.
