产品概述 / Overview

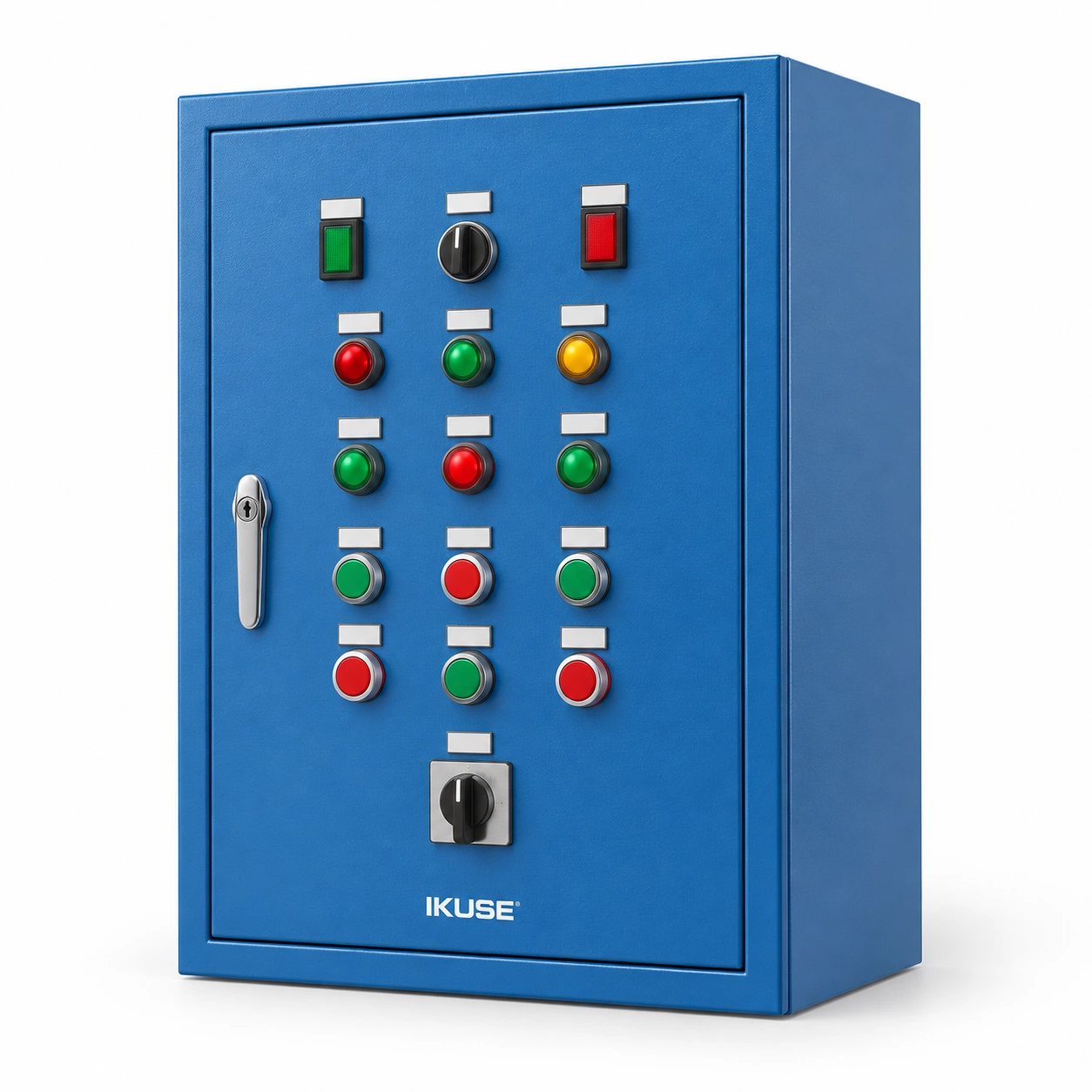

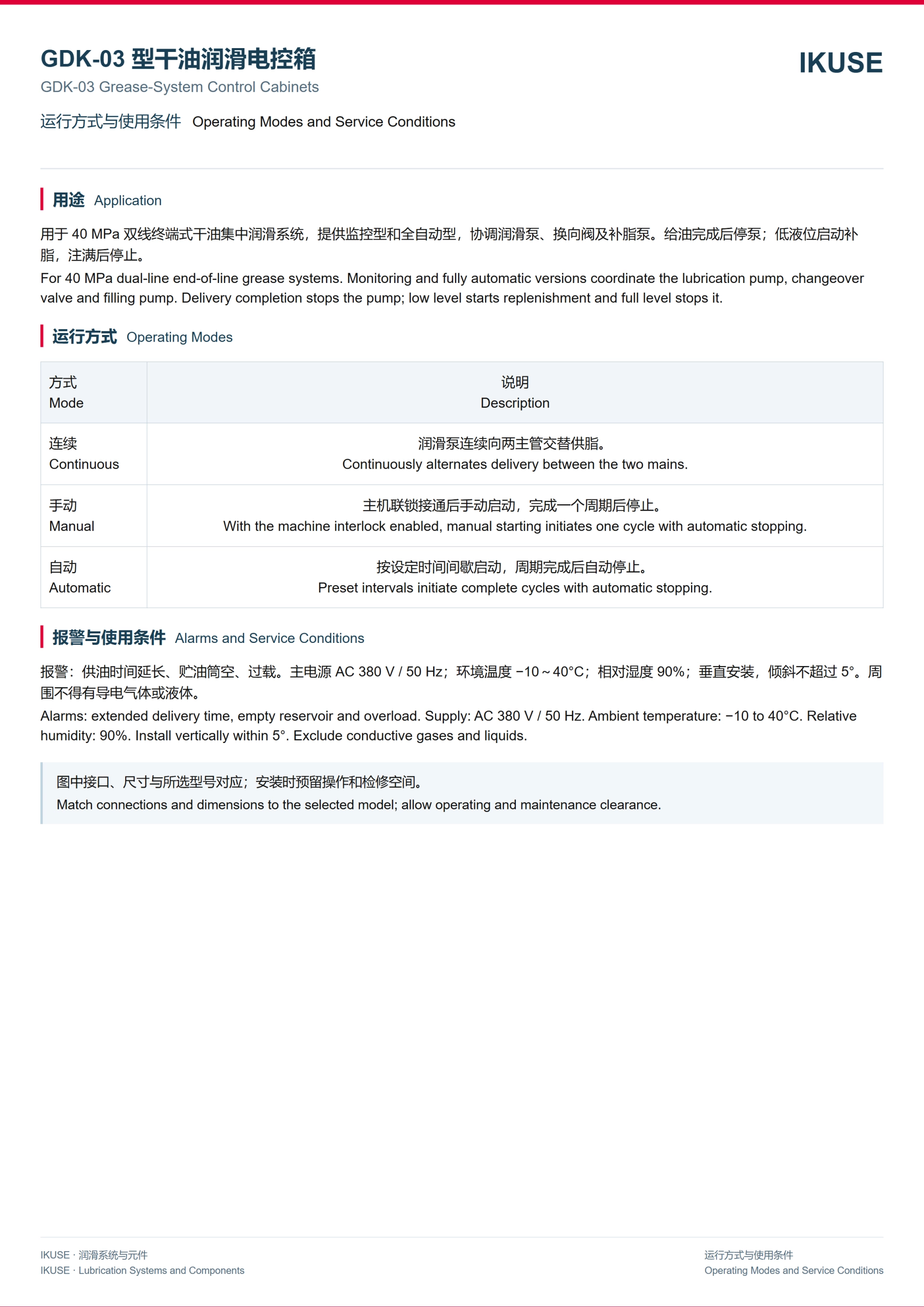

用于 40 MPa 双线终端式润滑系统，协调润滑泵、换向阀和加油泵，提供连续、手动和自动运行模式。
For 40 MPa dual-line end-of-line systems, coordinating lubrication pump, changeover valve and filling pump with continuous, manual and automatic modes.
For 40 MPa dual-line end-of-line systems, coordinating lubrication pump, changeover valve and filling pump with continuous, manual and automatic modes.
选型与使用 / Selection and Service
具有循环完成停泵、低液位自动补脂及故障报警功能，按主机联锁和端子图接线。

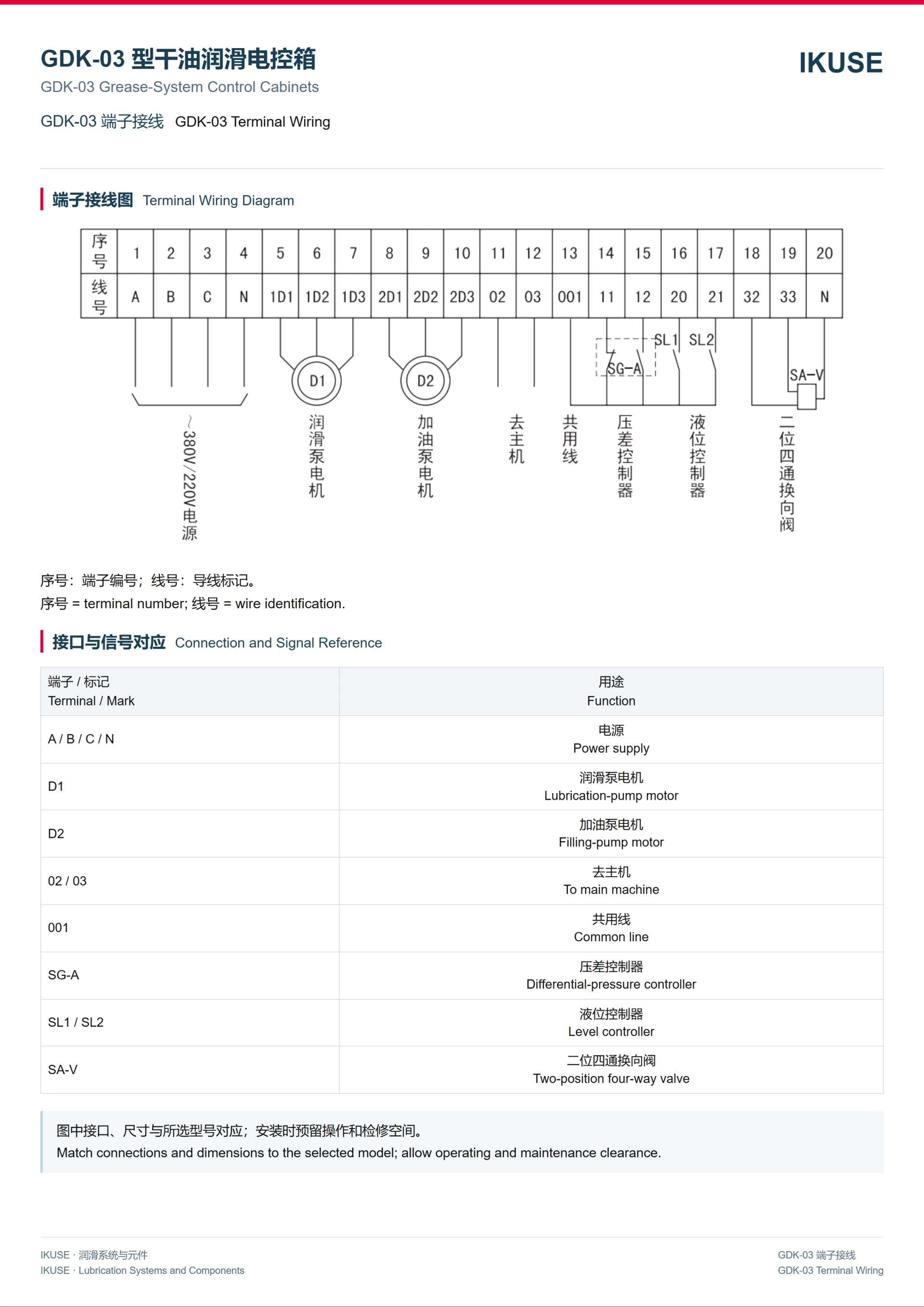

Provides stopping at cycle completion, automatic low-level replenishment and fault alarms; wire to the machine interlock and terminal diagram.
Provides stopping at cycle completion, automatic low-level replenishment and fault alarms; wire to the machine interlock and terminal diagram.
技术资料 / Technical Data

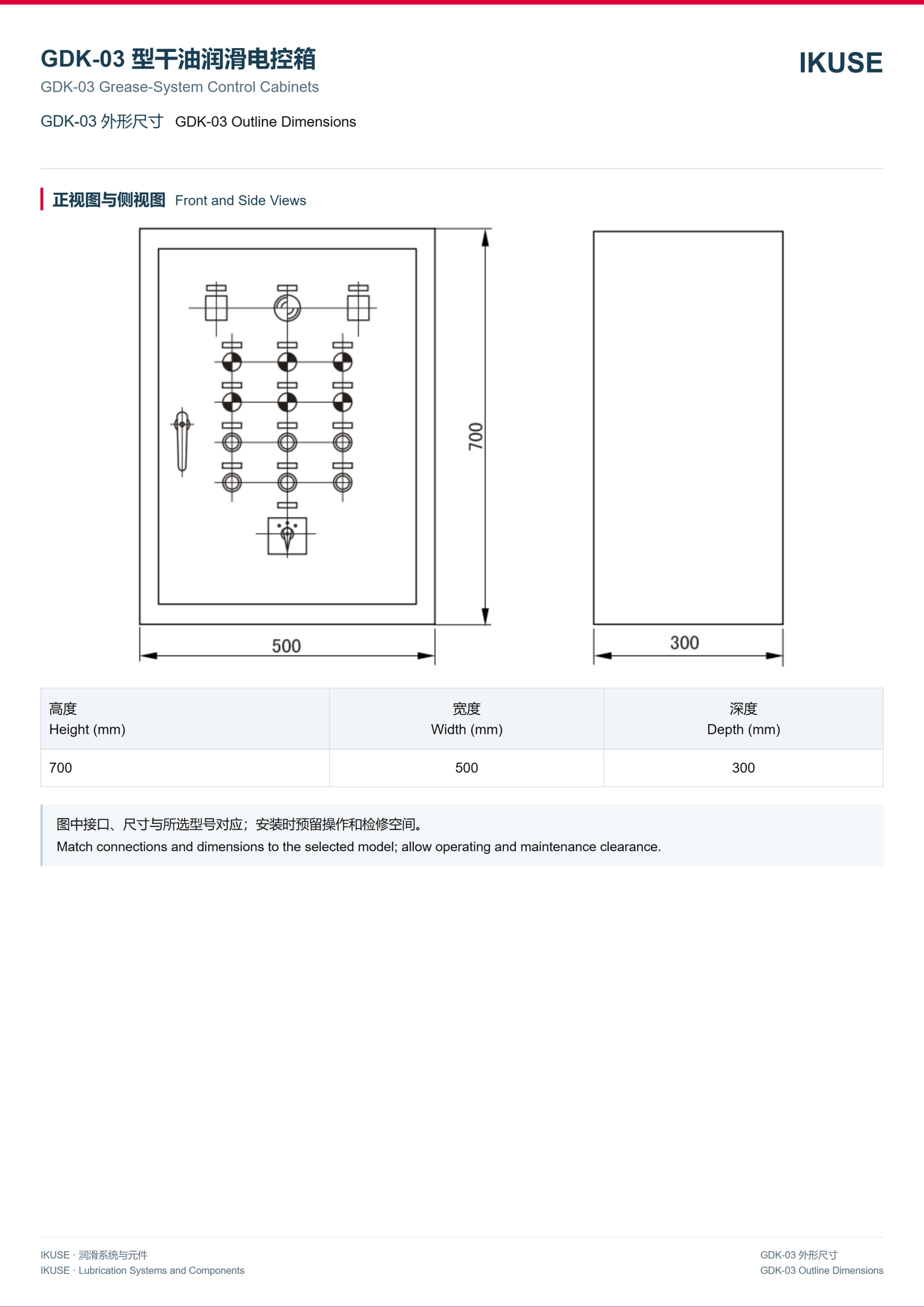

技术图表及安装尺寸按所选型号对应。接口形式、压力等级、适用介质及安装空间请结合对应规格确认。
Use the technical sheets and installation dimensions for the selected model. Check connection form, pressure rating, lubricant compatibility and installation clearance.
Use the technical sheets and installation dimensions for the selected model. Check connection form, pressure rating, lubricant compatibility and installation clearance.
