产品概述 Overview

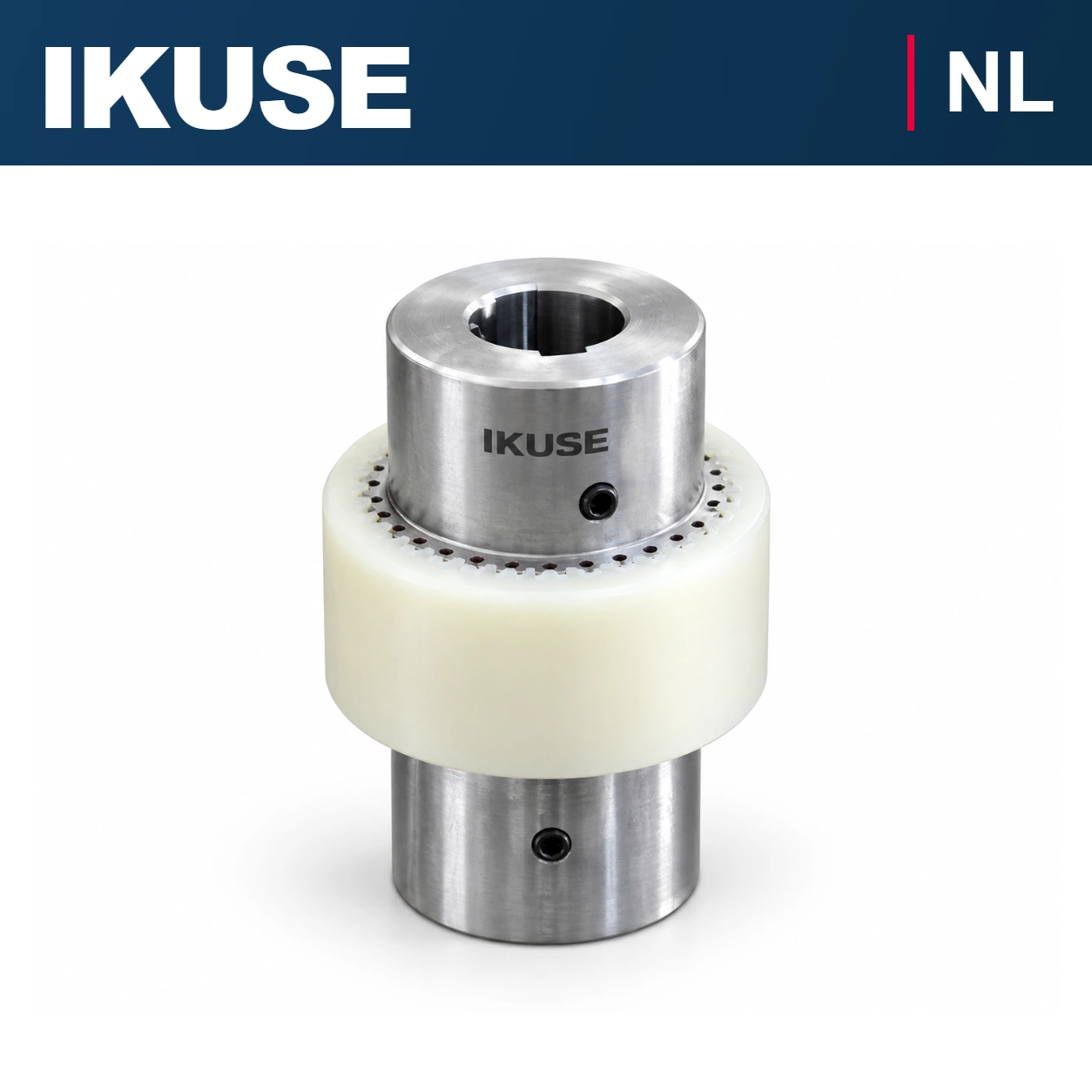

由金属外齿轴套与尼龙内齿圈配合传递转矩。
Metal toothed hubs engage a nylon sleeve to transmit torque.
Metal toothed hubs engage a nylon sleeve to transmit torque.

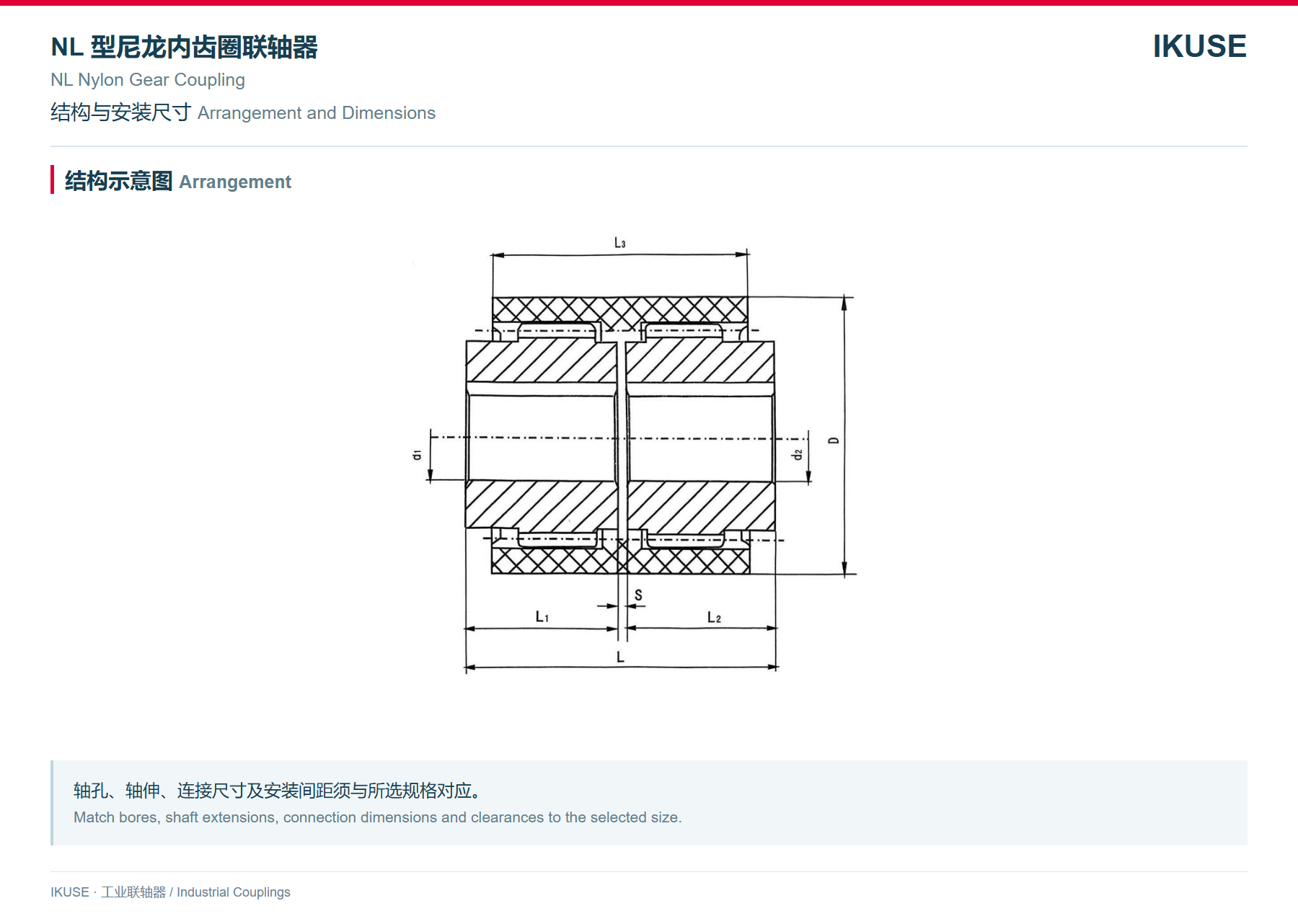

结构与使用 Construction and Service
核对尼龙套、轴套及轴孔；定期检查尼龙齿圈磨损。
Check the nylon sleeve, hubs and bores; inspect sleeve tooth wear periodically.
Check the nylon sleeve, hubs and bores; inspect sleeve tooth wear periodically.

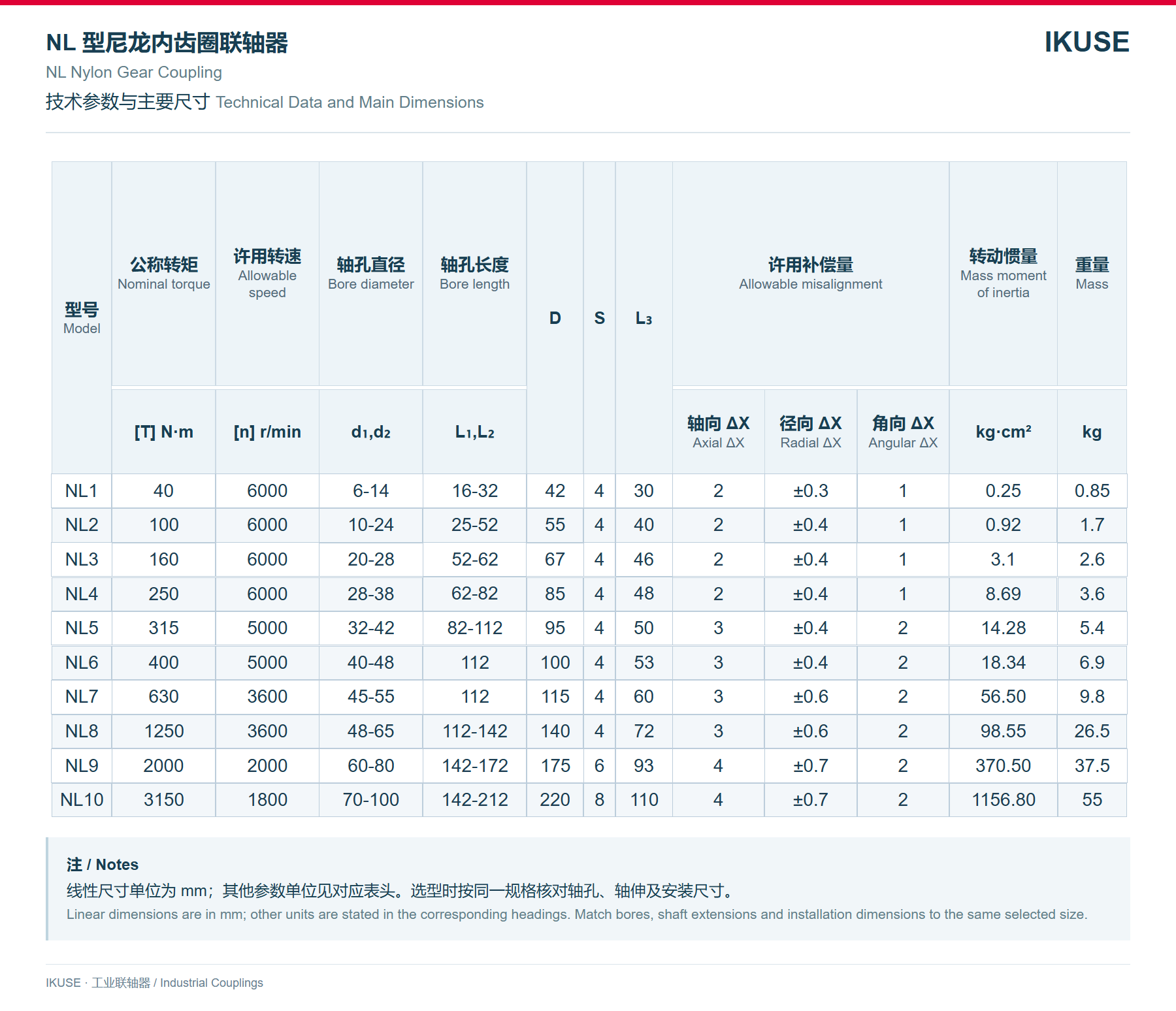

技术参数与主要尺寸 Technical Data and Dimensions
转矩、转速、轴孔和安装尺寸应按同一规格对应核对。
Check torque, speed, bore and installation dimensions for the same selected size.
Check torque, speed, bore and installation dimensions for the same selected size.
订货信息 Ordering
请提供功率、工作转速、负载特性、两端轴径与轴伸长度、轴端间距以及安装环境；涉及制动、动平衡和弹性元件配置时请一并说明。
Specify power, operating speed, load characteristics, both shaft diameters and extension lengths, shaft separation and installation conditions. Include any brake, balancing or elastic-element requirements.
Specify power, operating speed, load characteristics, both shaft diameters and extension lengths, shaft separation and installation conditions. Include any brake, balancing or elastic-element requirements.
