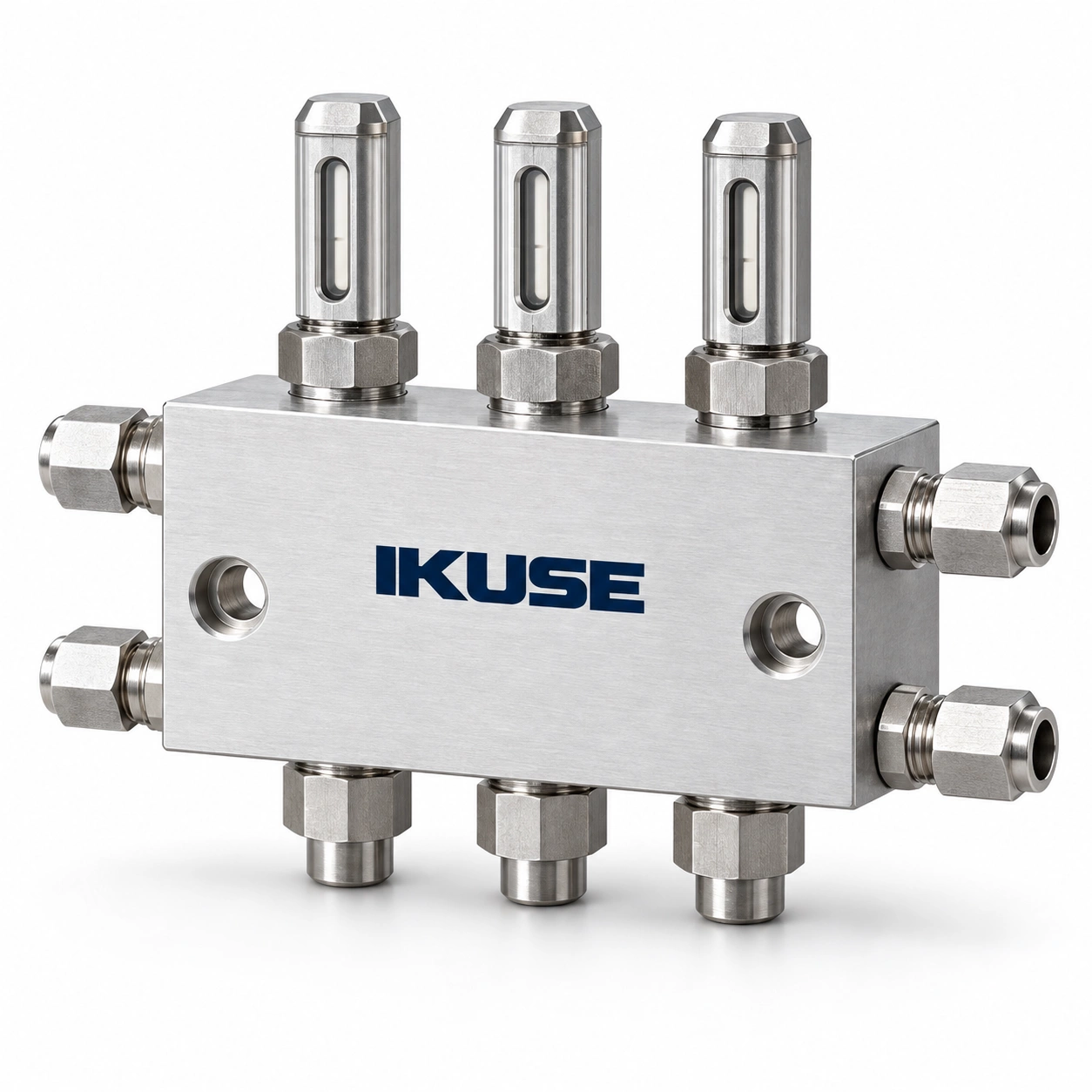

产品概述 / Overview
用于 10 MPa 双线集中润滑系统，依靠两条主管路交替加压定量供脂，具有动作指示和给油量调节。
Meters grease in 10 MPa dual-line systems using alternating main pressure, with motion indication and dose adjustment.
Meters grease in 10 MPa dual-line systems using alternating main pressure, with motion indication and dose adjustment.

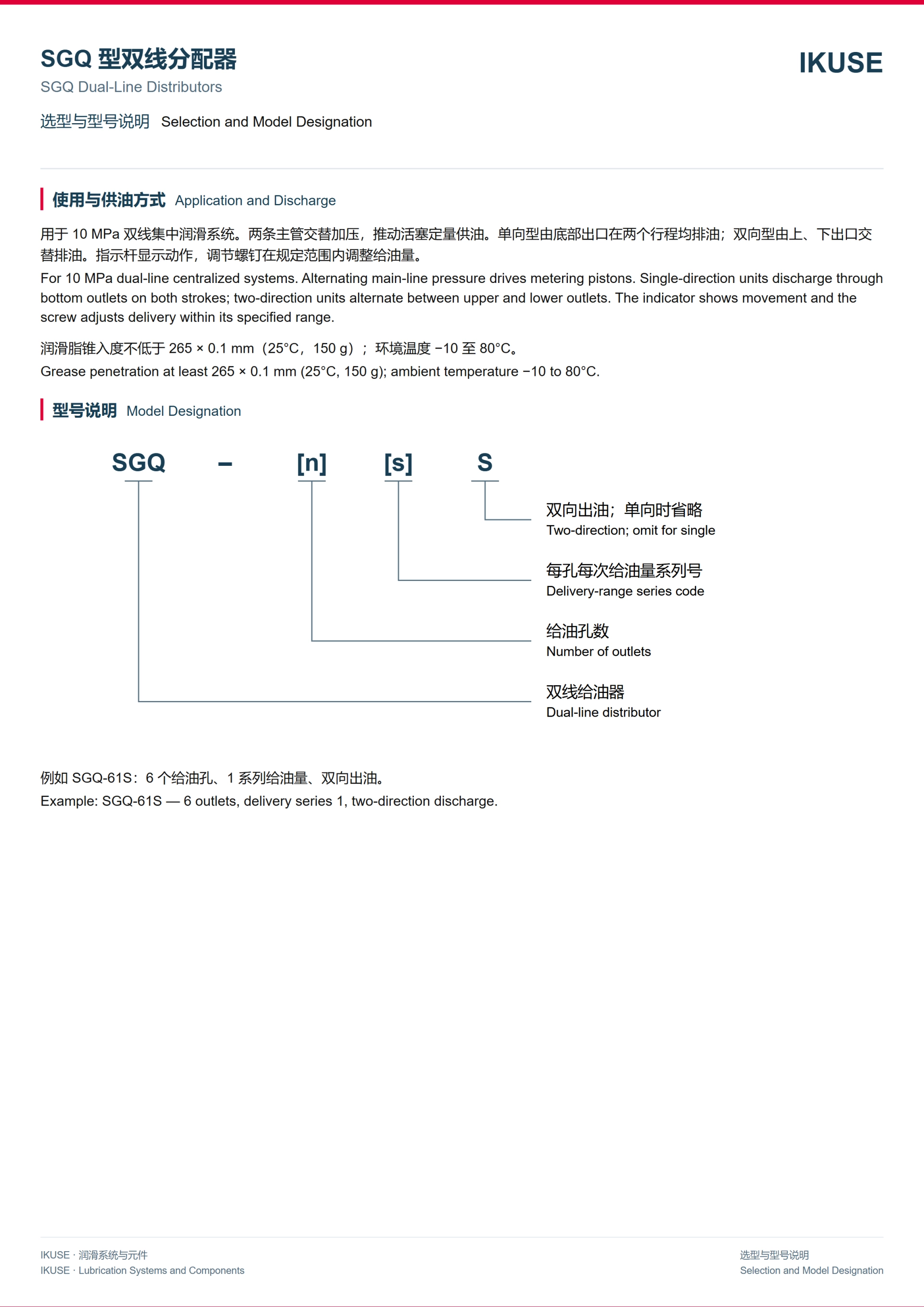

选型与使用 / Selection and Service
提供单向和双向出油形式；按润滑点数量和单点给油量选型。
Single- and two-direction discharge versions are available; select by point count and dose per point.
Single- and two-direction discharge versions are available; select by point count and dose per point.

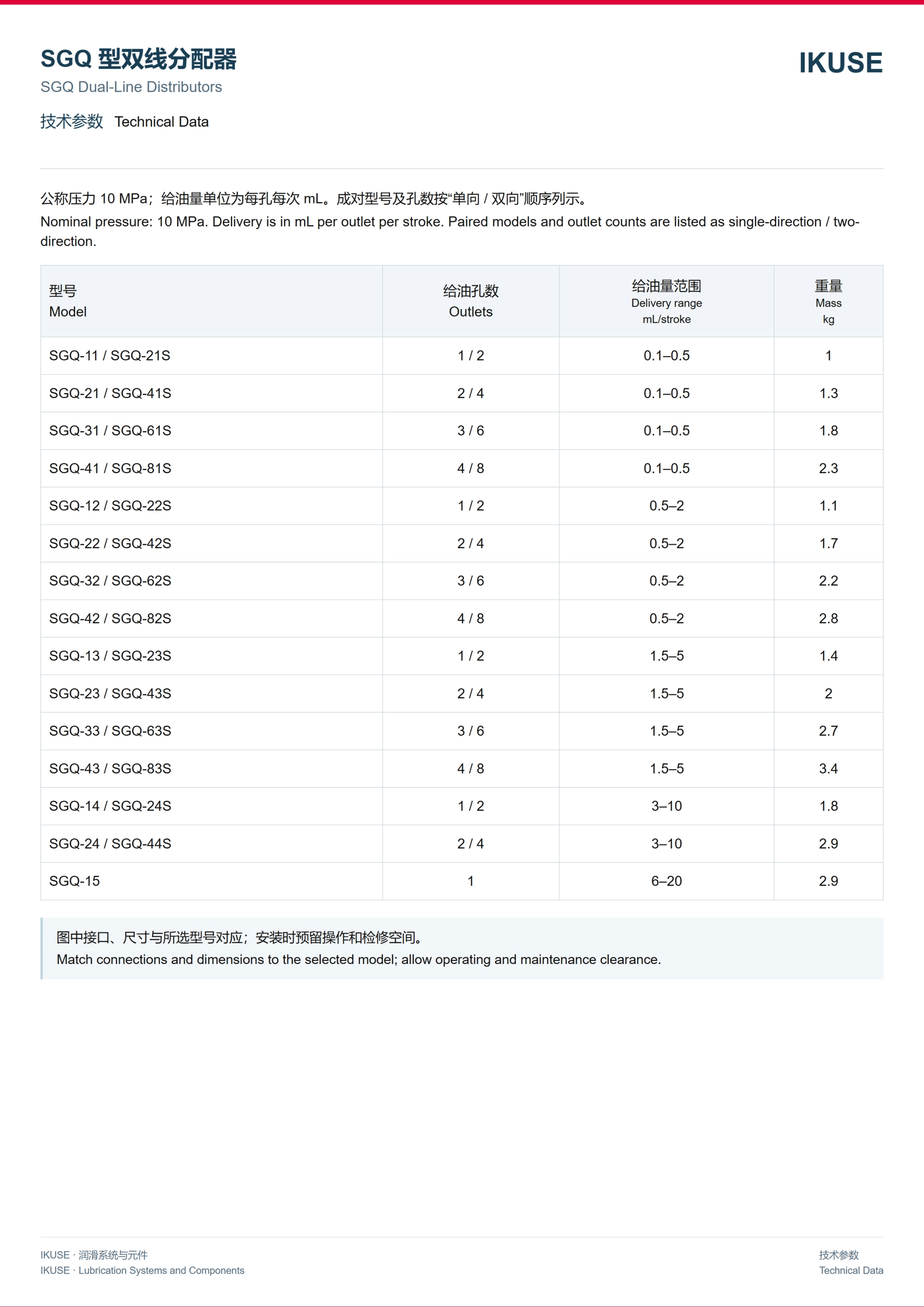

技术资料 / Technical Data

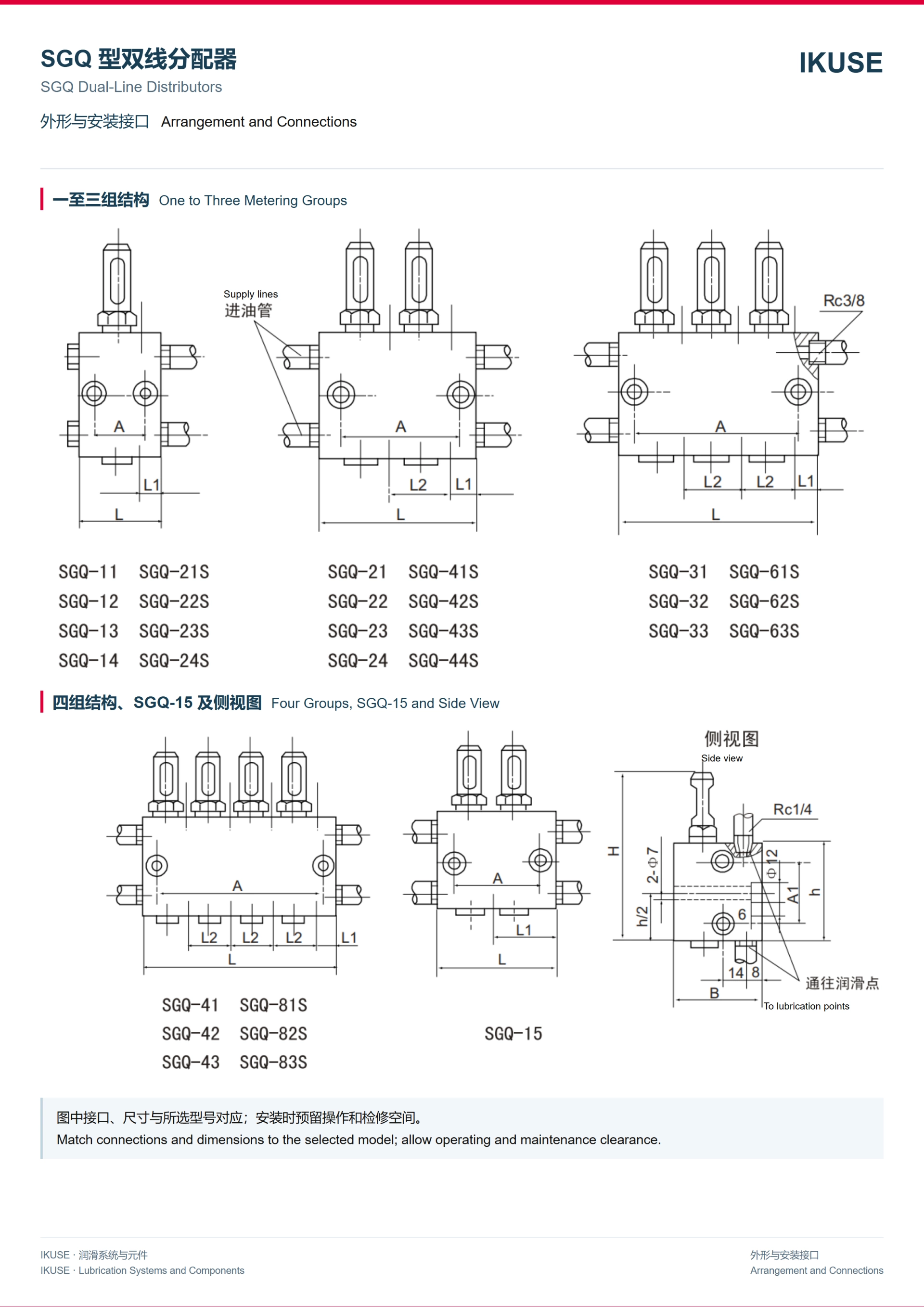

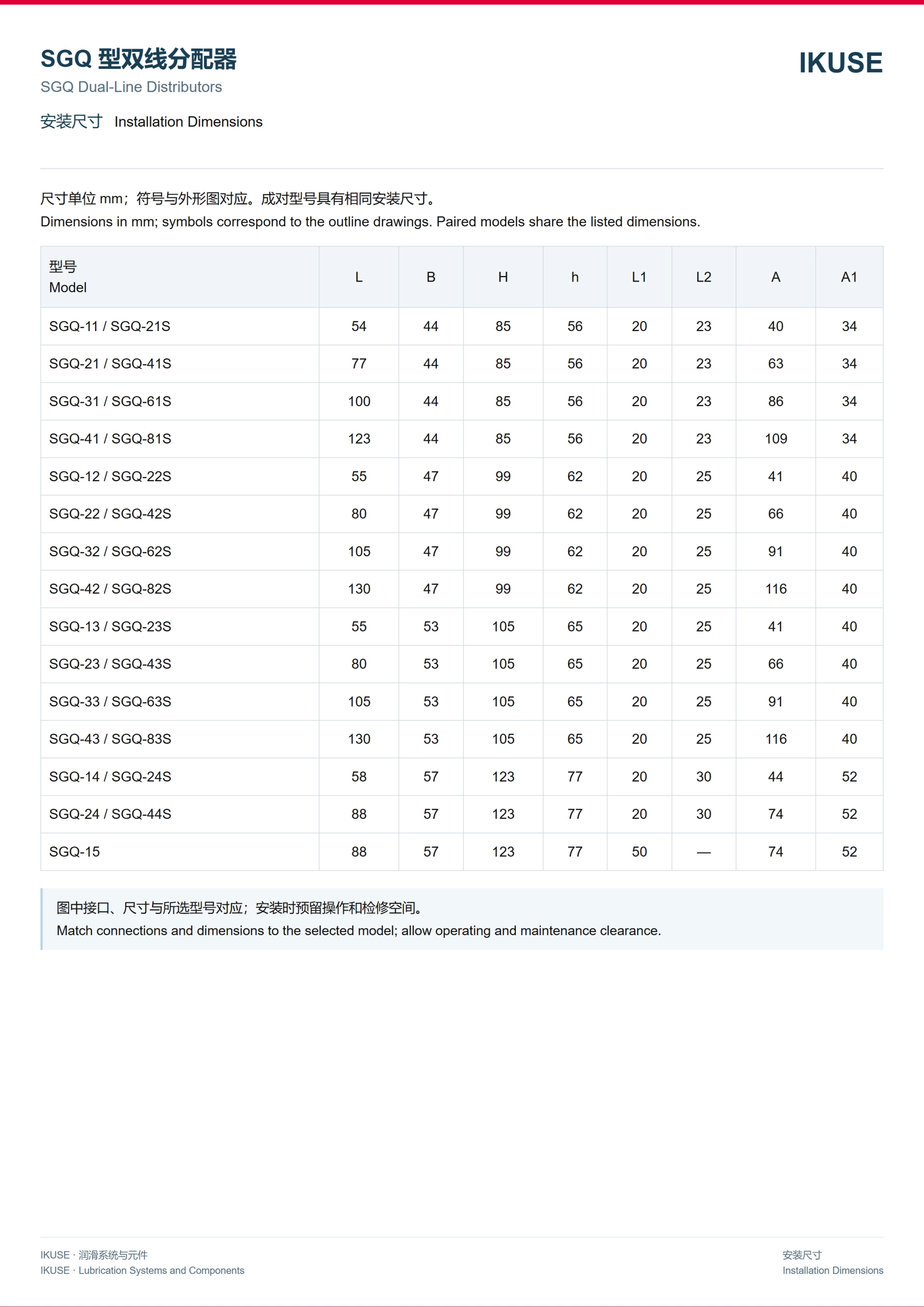

技术图表及安装尺寸按所选型号对应。接口形式、压力等级、适用介质及安装空间请结合对应规格确认。
Use the technical sheets and installation dimensions for the selected model. Check connection form, pressure rating, lubricant compatibility and installation clearance.
Use the technical sheets and installation dimensions for the selected model. Check connection form, pressure rating, lubricant compatibility and installation clearance.
