产品概述 / Overview
用于小型设备的手动双线终端式润滑系统，可直接安装在主机上。
For manual dual-line end-of-line lubrication of small machines, with direct mounting on the machine.
For manual dual-line end-of-line lubrication of small machines, with direct mounting on the machine.

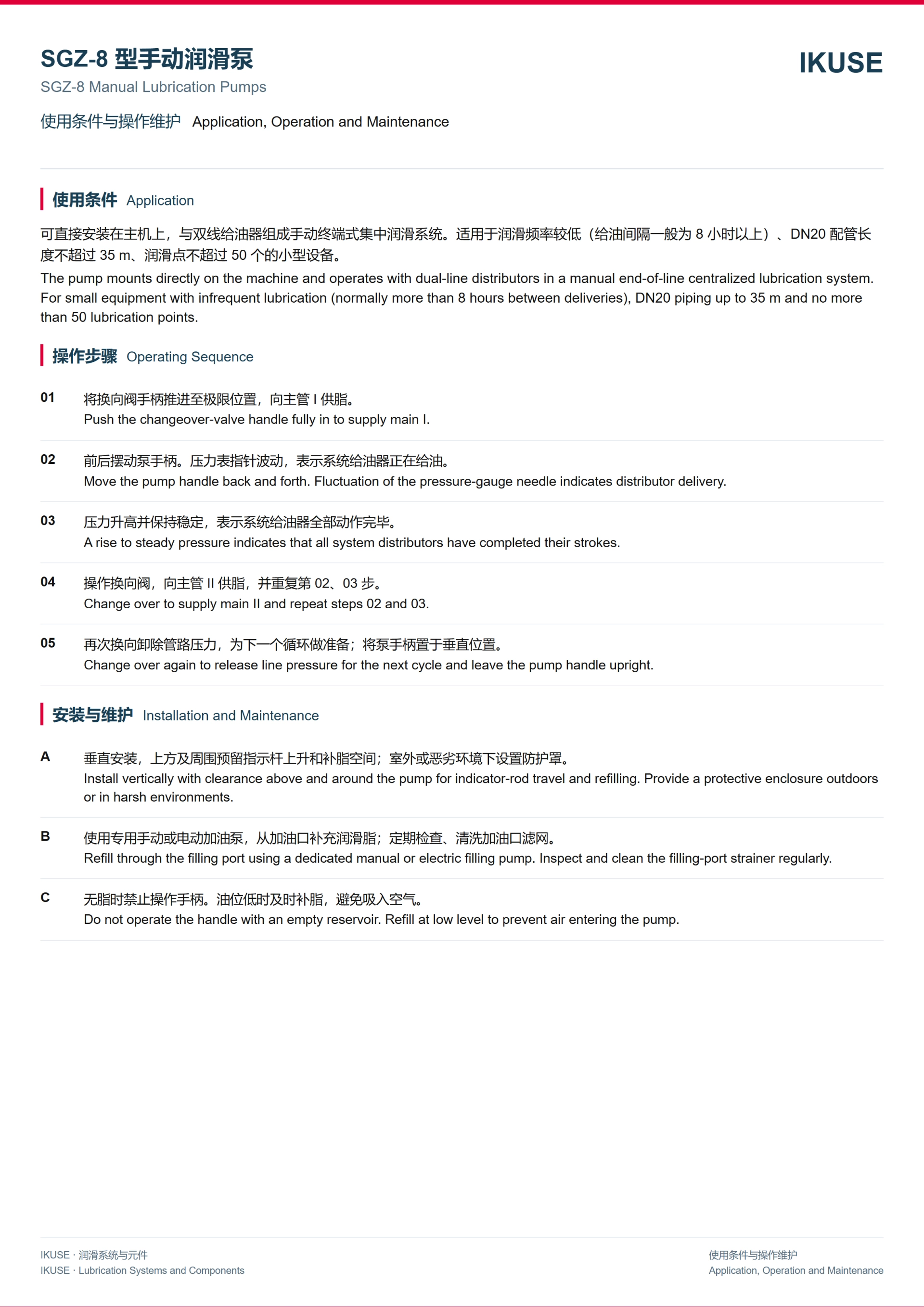

选型与使用 / Selection and Service
适用于管路长度不超过 35 m、润滑点不超过 50 个的配置，环境温度 0–40°C。
For configurations with piping up to 35 m and no more than 50 points; ambient temperature 0–40°C.
For configurations with piping up to 35 m and no more than 50 points; ambient temperature 0–40°C.

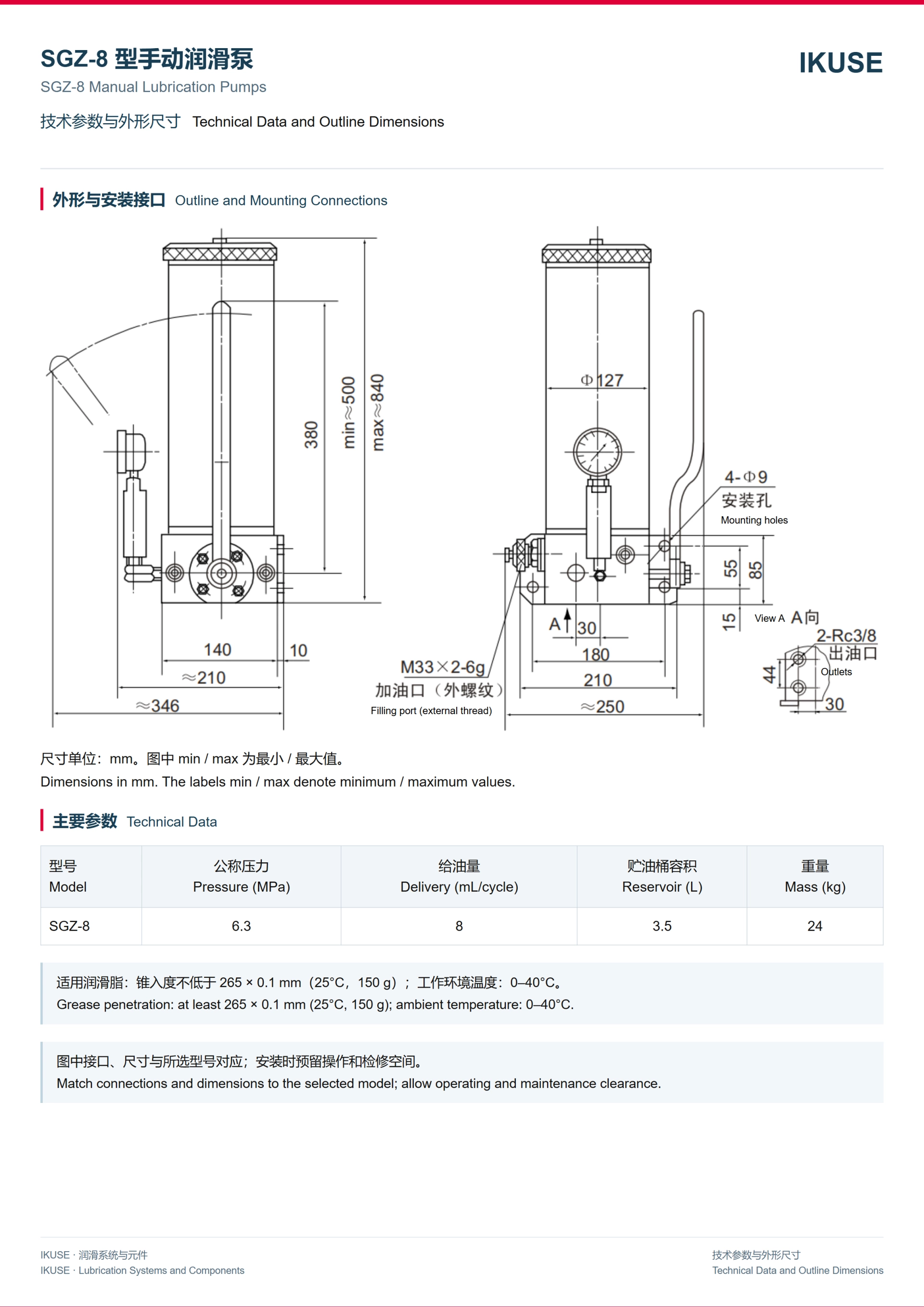

技术资料 / Technical Data
技术图表及安装尺寸按所选型号对应。接口形式、压力等级、适用介质及安装空间请结合对应规格确认。
Use the technical sheets and installation dimensions for the selected model. Check connection form, pressure rating, lubricant compatibility and installation clearance.
Use the technical sheets and installation dimensions for the selected model. Check connection form, pressure rating, lubricant compatibility and installation clearance.
