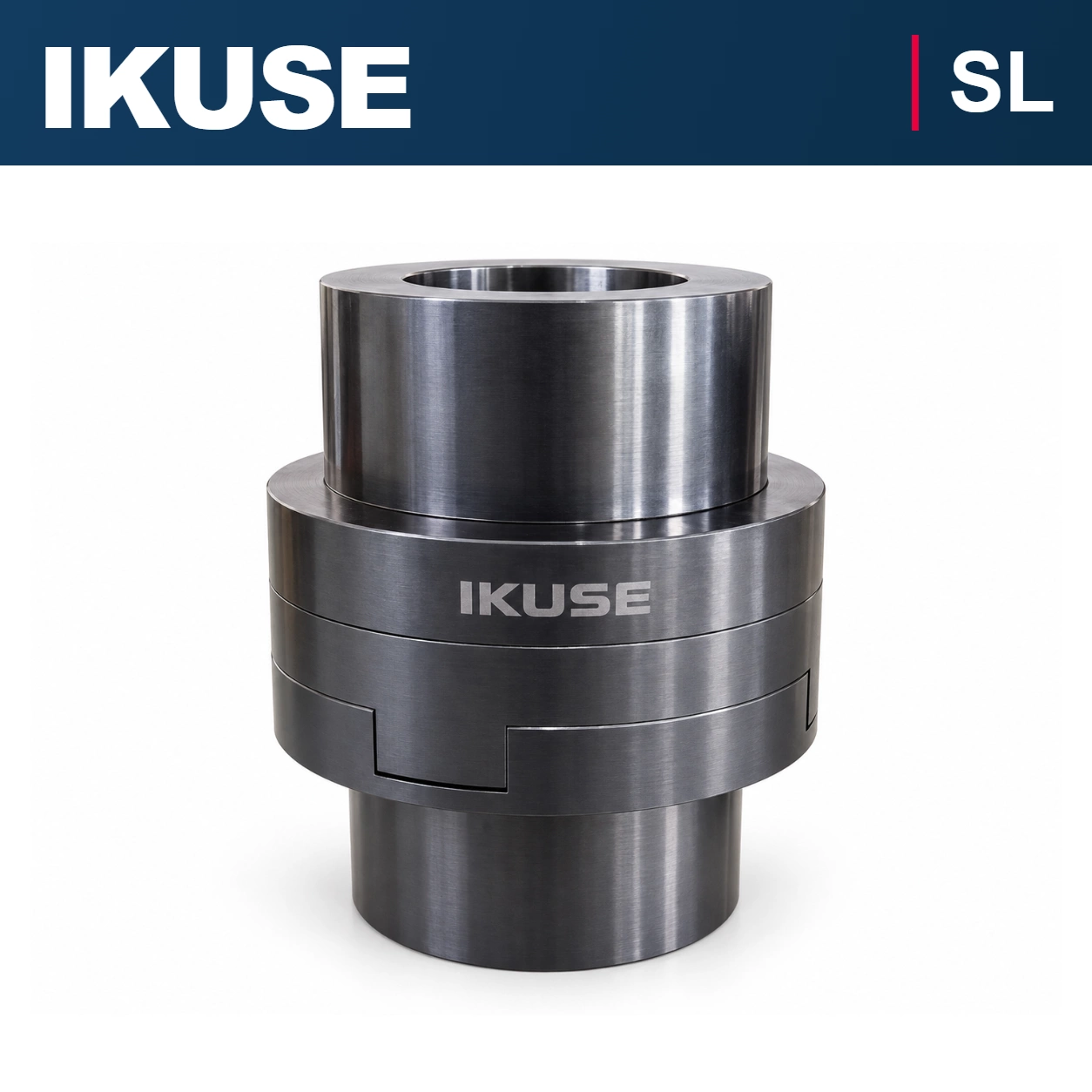

产品概述 Overview
通过中间滑块连接两端半联轴器，利用滑动配合传递转矩。
An intermediate sliding block connects the two coupling halves and transmits torque through sliding contact.
An intermediate sliding block connects the two coupling halves and transmits torque through sliding contact.

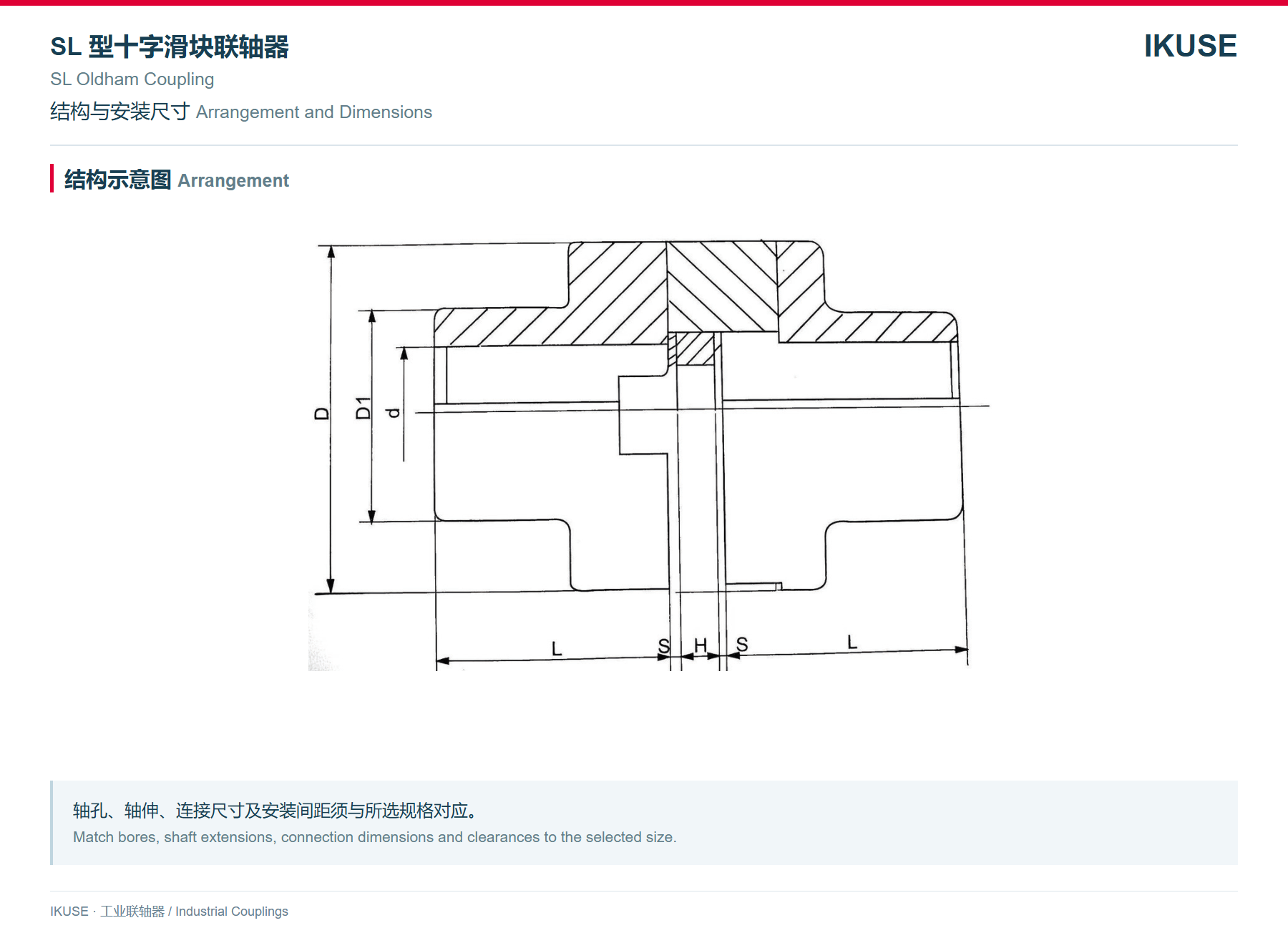

结构与使用 Construction and Service
按对应结构核对滑块材料、配合间隙及两端轴孔；检查滑块磨损。
Check block material, fit clearance and both bores for the selected arrangement; inspect block wear.
Check block material, fit clearance and both bores for the selected arrangement; inspect block wear.

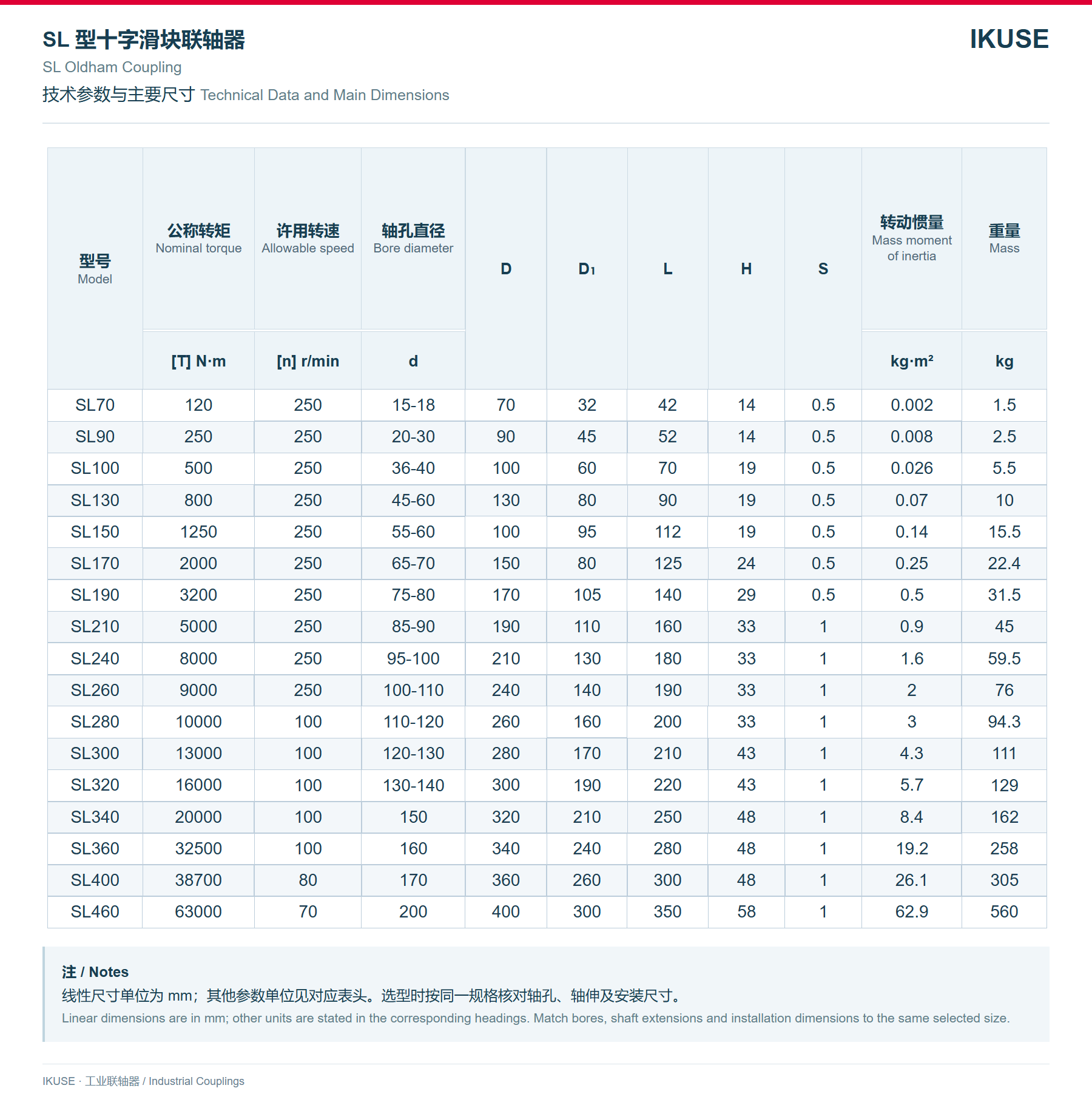

技术参数与主要尺寸 Technical Data and Dimensions
转矩、转速、轴孔和安装尺寸应按同一规格对应核对。
Check torque, speed, bore and installation dimensions for the same selected size.
Check torque, speed, bore and installation dimensions for the same selected size.
订货信息 Ordering
请提供功率、工作转速、负载特性、两端轴径与轴伸长度、轴端间距以及安装环境；涉及制动、动平衡和弹性元件配置时请一并说明。
Specify power, operating speed, load characteristics, both shaft diameters and extension lengths, shaft separation and installation conditions. Include any brake, balancing or elastic-element requirements.
Specify power, operating speed, load characteristics, both shaft diameters and extension lengths, shaft separation and installation conditions. Include any brake, balancing or elastic-element requirements.
