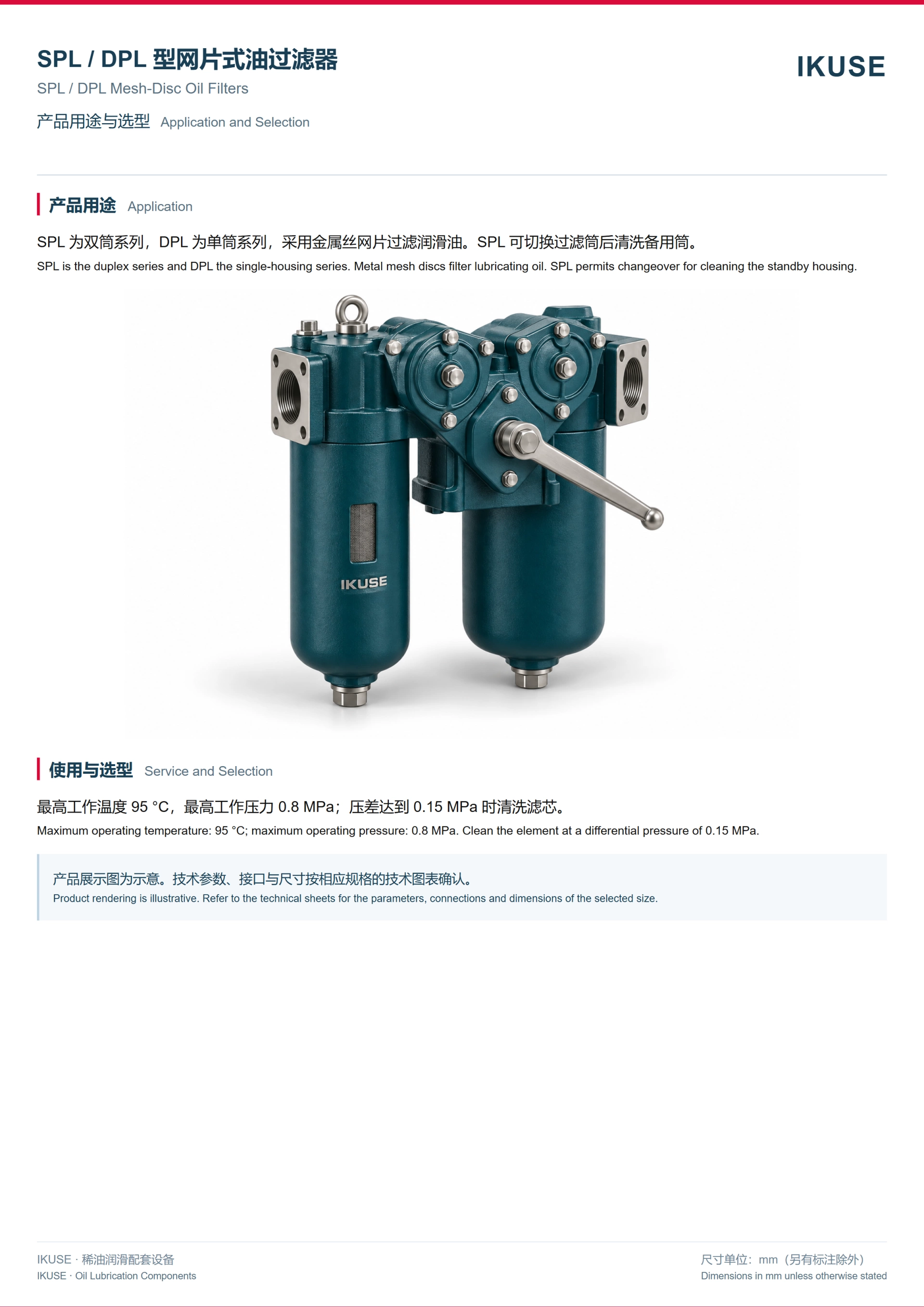

产品概述 / Overview
SPL 为双筒系列，DPL 为单筒系列，采用金属丝网片过滤润滑油。SPL 可切换过滤筒后清洗备用筒。
SPL is the duplex series and DPL the single-housing series. Metal mesh discs filter lubricating oil. SPL permits changeover for cleaning the standby housing.
SPL is the duplex series and DPL the single-housing series. Metal mesh discs filter lubricating oil. SPL permits changeover for cleaning the standby housing.
使用与选型 / Service and Selection
最高工作温度 95 °C，最高工作压力 0.8 MPa；压差达到 0.15 MPa 时清洗滤芯。
Maximum operating temperature: 95 °C; maximum operating pressure: 0.8 MPa. Clean the element at a differential pressure of 0.15 MPa.
Maximum operating temperature: 95 °C; maximum operating pressure: 0.8 MPa. Clean the element at a differential pressure of 0.15 MPa.
技术资料 / Technical Data

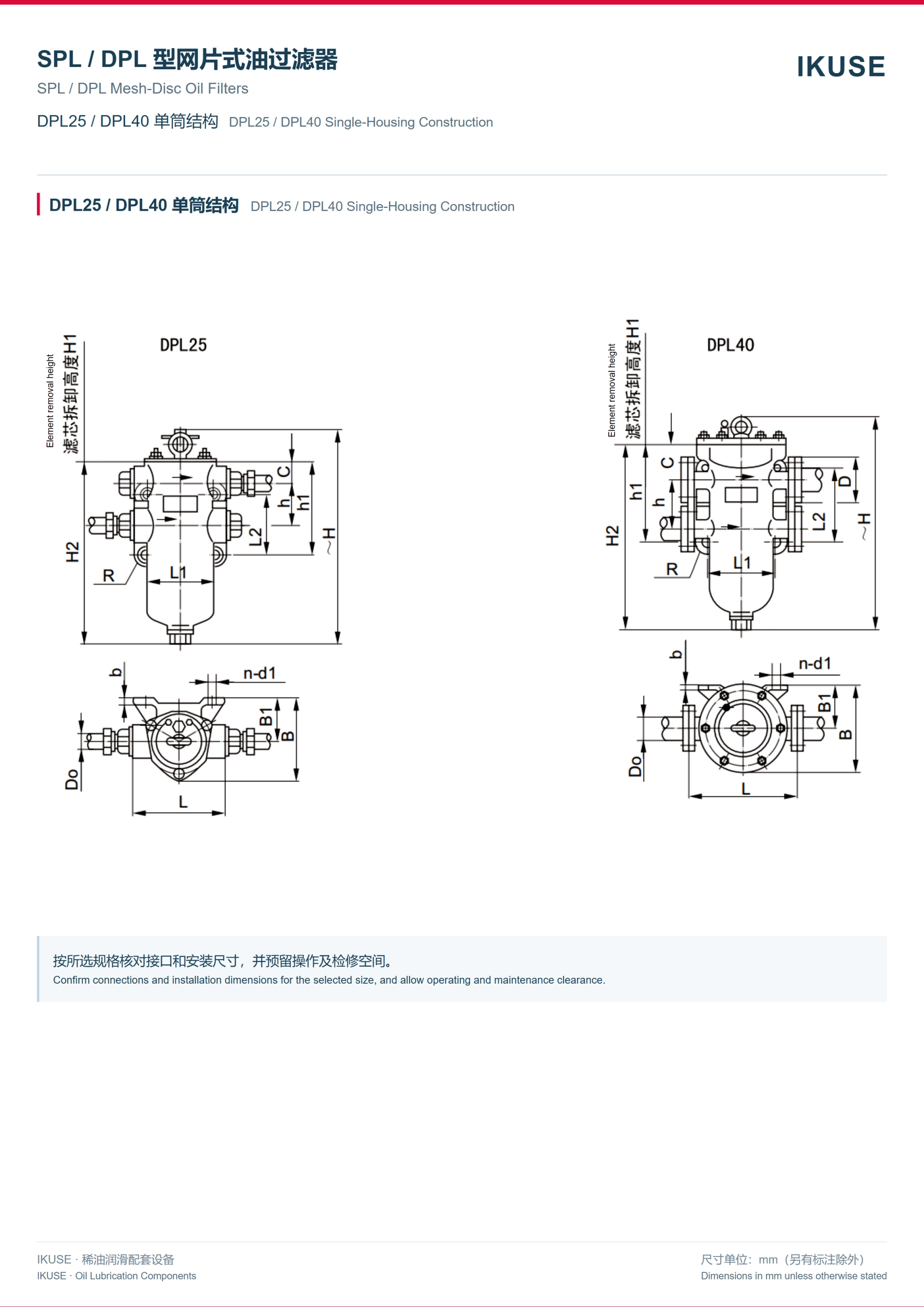

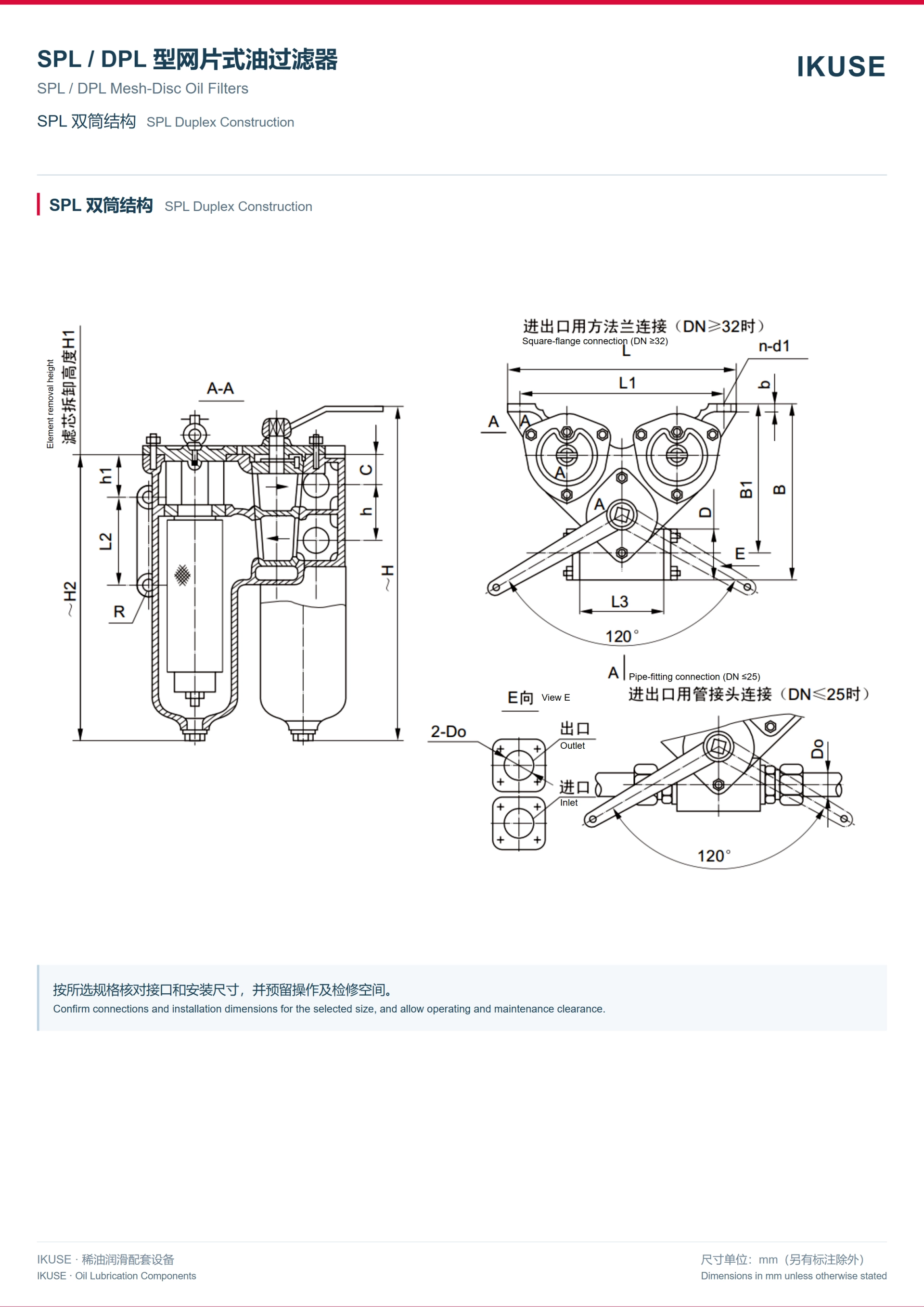

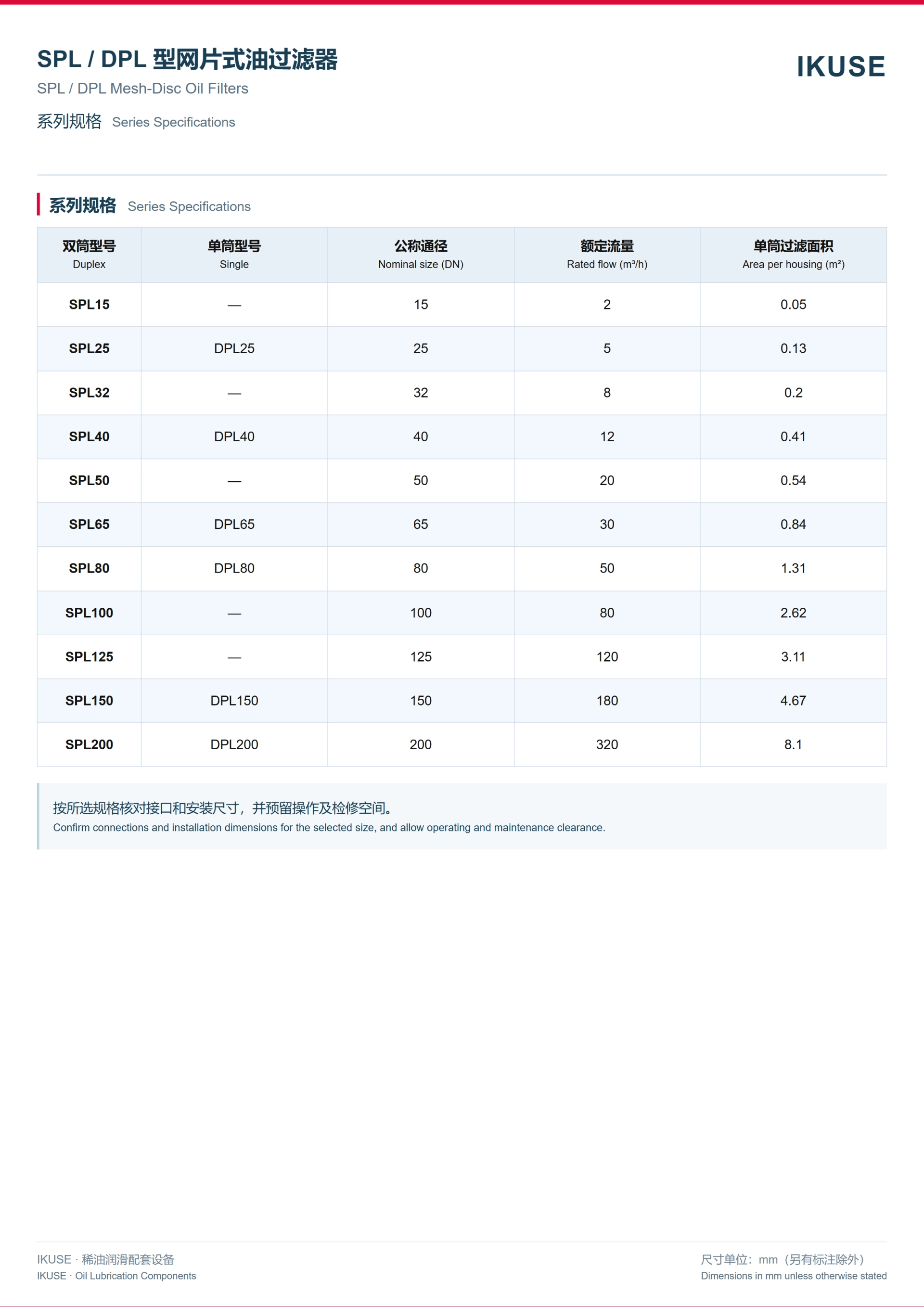

技术图表列出对应系列的规格与结构。按选定型号核对接口及安装尺寸，预留检修空间。产品展示图为示意。

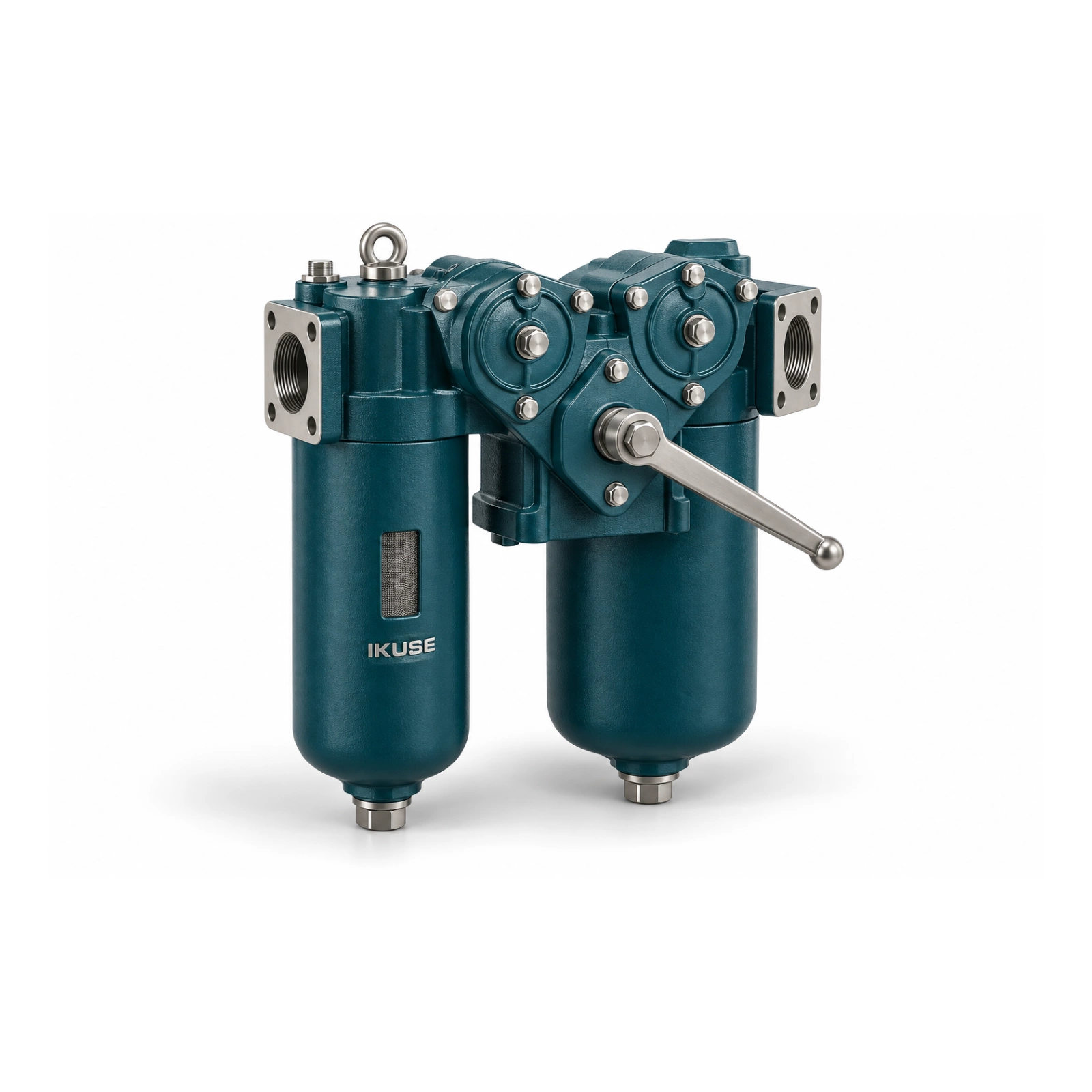

Technical sheets show the corresponding series specifications and construction. Confirm connections and installation dimensions for the selected model and allow maintenance clearance. Product rendering is illustrative.
Technical sheets show the corresponding series specifications and construction. Confirm connections and installation dimensions for the selected model and allow maintenance clearance. Product rendering is illustrative.
