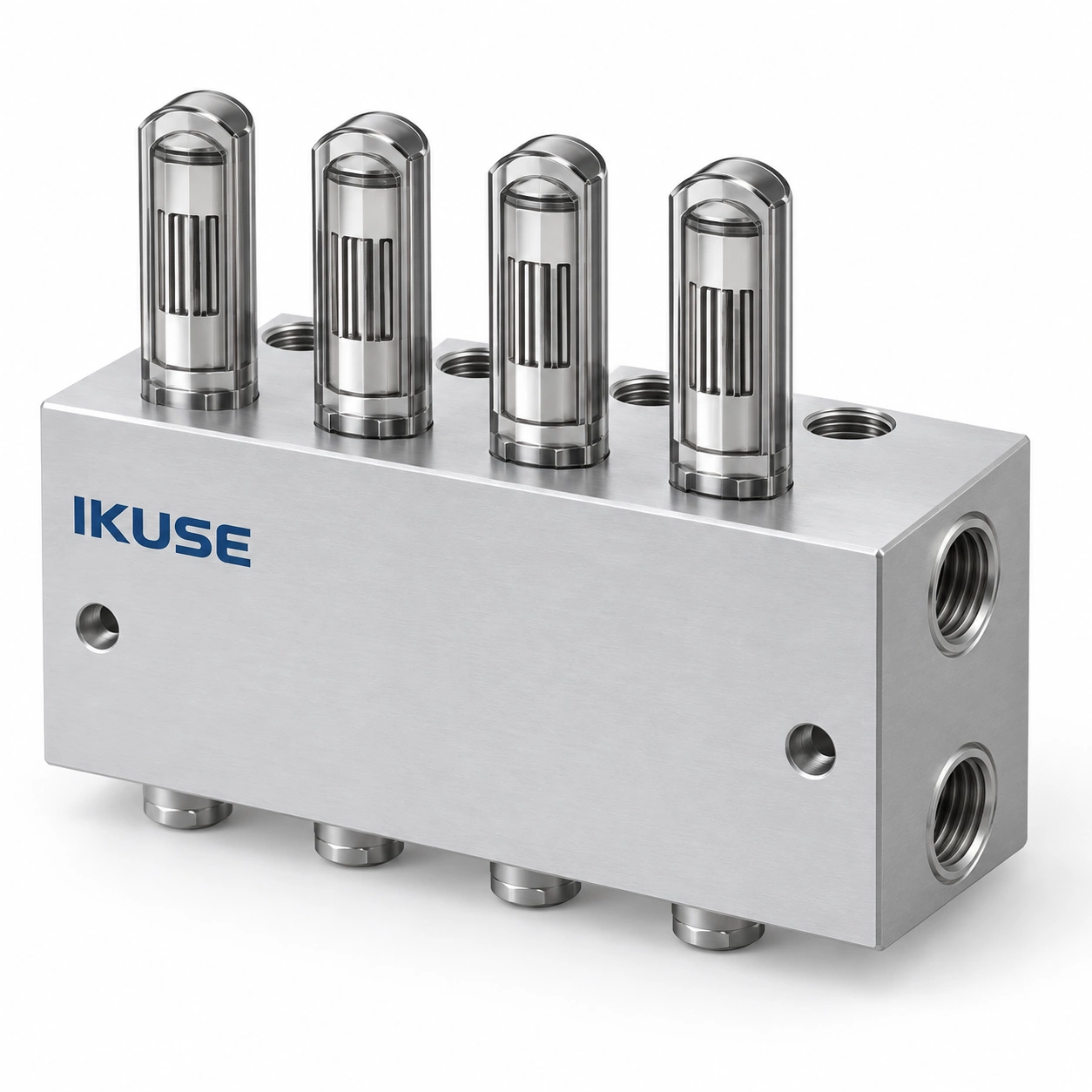

产品概述 / Overview
用于 40 MPa 双线集中润滑系统，主管交替加压驱动计量活塞，带动作指示及排量调节。
For 40 MPa dual-line centralized systems, with alternating main pressure driving metering pistons and with motion indication and adjustable delivery.
For 40 MPa dual-line centralized systems, with alternating main pressure driving metering pistons and with motion indication and adjustable delivery.

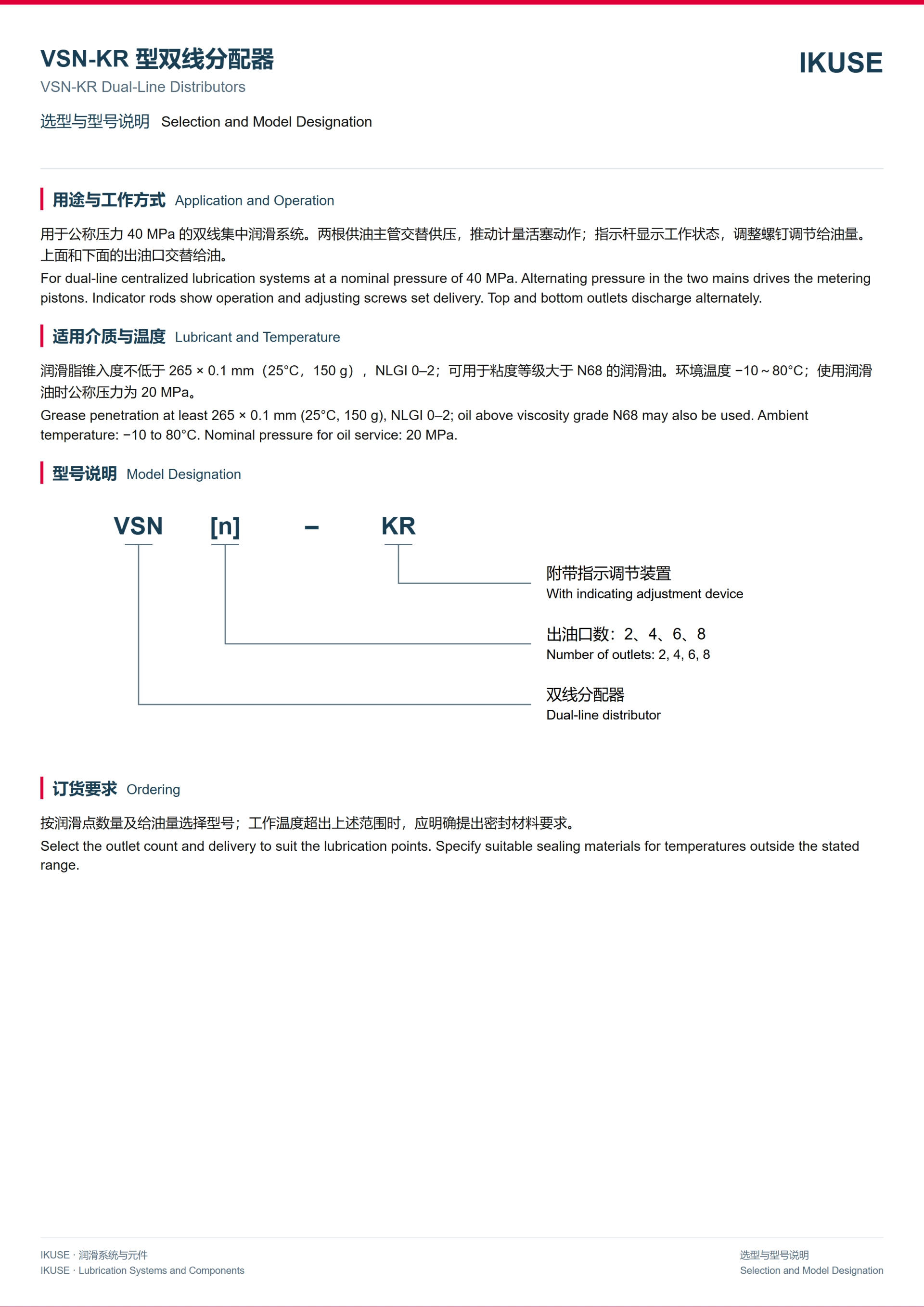

选型与使用 / Selection and Service
按出油口数量和单口排量选型，安装尺寸及出口布置见对应型号图。
Select by outlet count and dose per outlet; consult the model drawing for mounting dimensions and outlet arrangement.
Select by outlet count and dose per outlet; consult the model drawing for mounting dimensions and outlet arrangement.

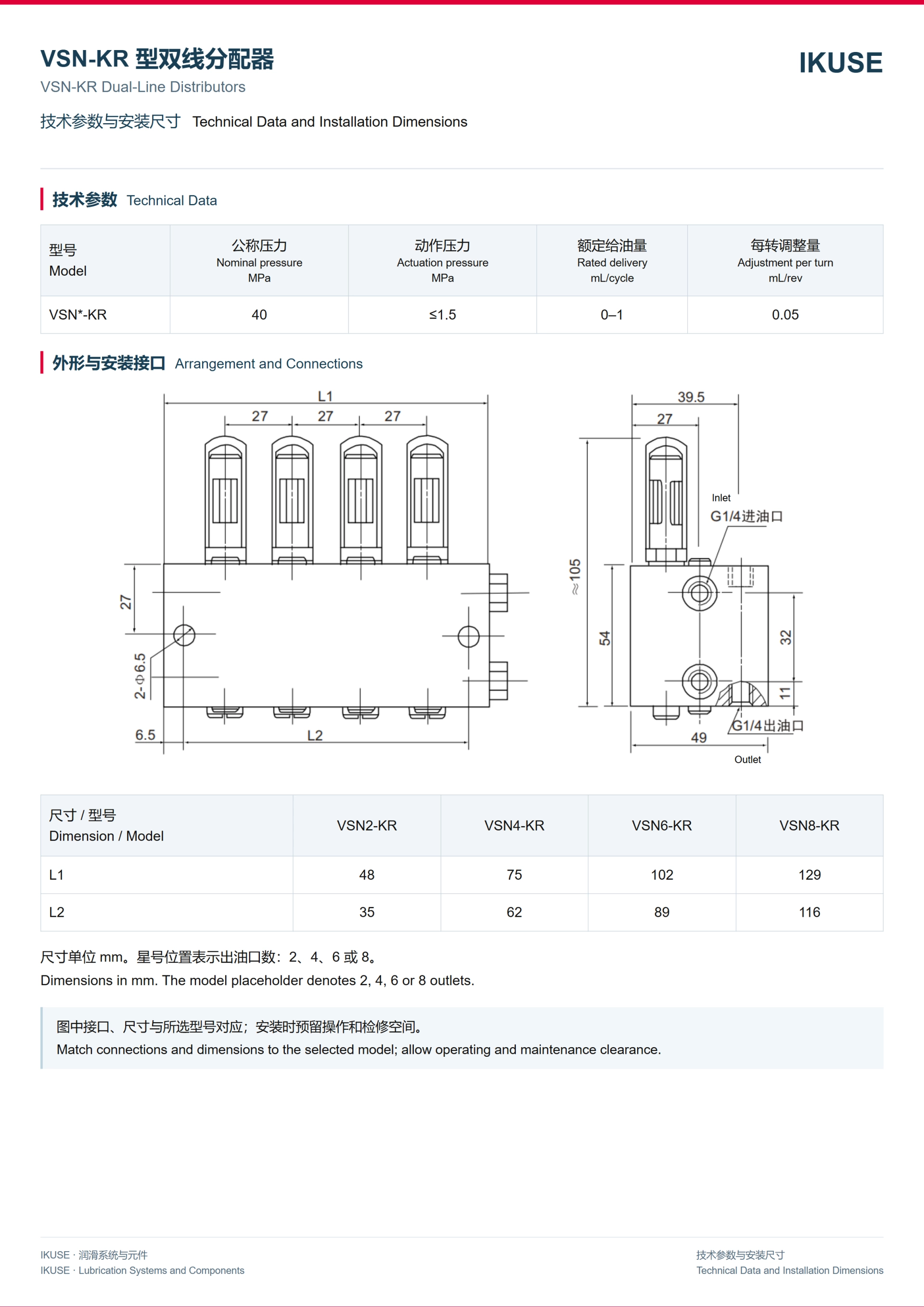

技术资料 / Technical Data
技术图表及安装尺寸按所选型号对应。接口形式、压力等级、适用介质及安装空间请结合对应规格确认。
Use the technical sheets and installation dimensions for the selected model. Check connection form, pressure rating, lubricant compatibility and installation clearance.
Use the technical sheets and installation dimensions for the selected model. Check connection form, pressure rating, lubricant compatibility and installation clearance.
