Overview

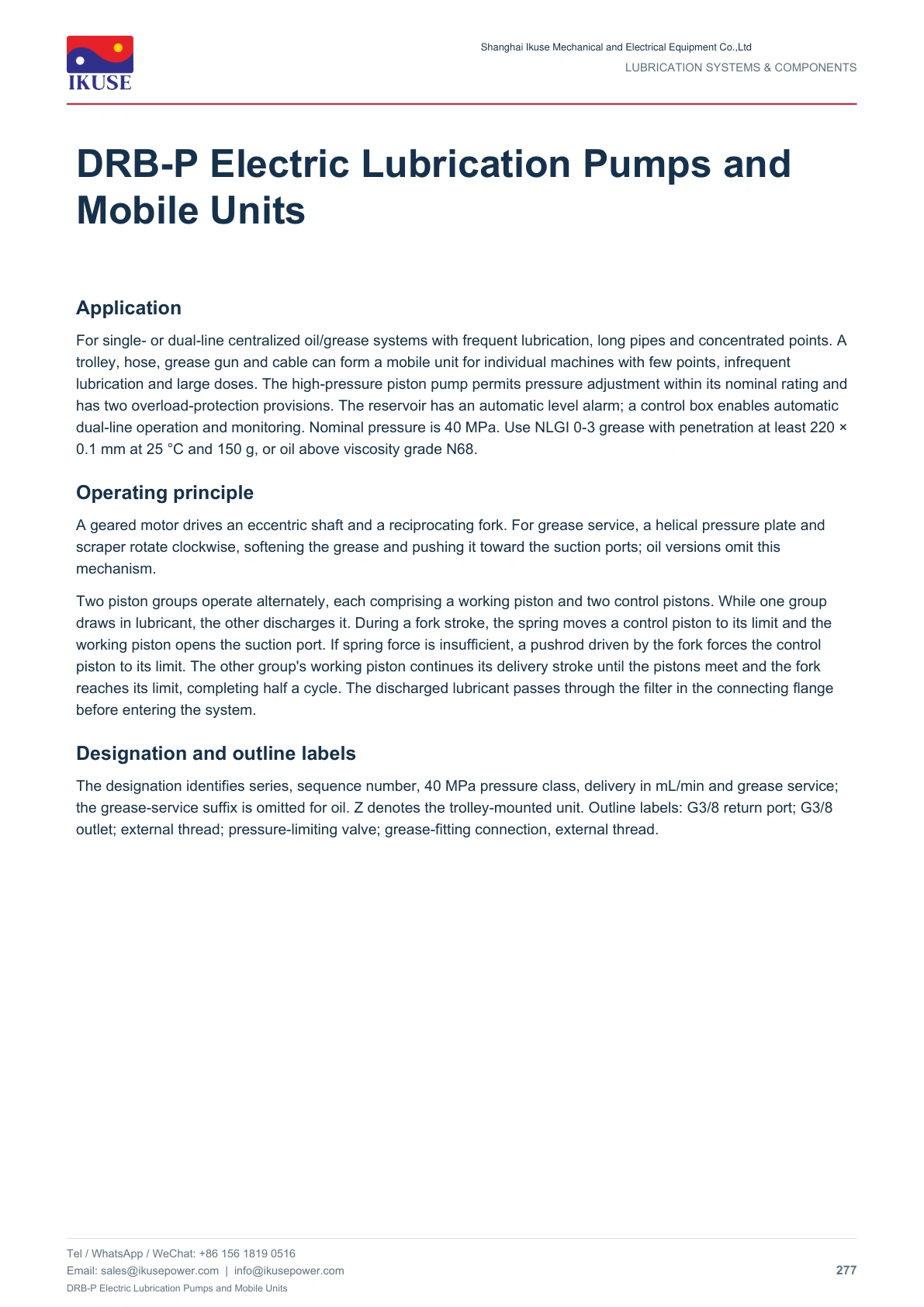

For single- or dual-line centralized oil/grease systems with frequent lubrication, long pipes and concentrated points. A trolley, hose, grease gun and cable can form a mobile unit for individual machines with few points, infrequent lubrication and large doses. The high-pressure piston pump permits pressure adjustment within its nominal rating and has two overload-protection provisions. The reservoir has an automatic level alarm; a control box enables automatic dual-line operation and monitoring. Nominal pressure is 40 MPa. Use NLGI 0-3 grease with penetration at least 220 × 0.1 mm at 25 °C and 150 g, or oil above viscosity grade N68.
Selection and operation
Use grease with a penetration of at least 220 (0.1 mm), or oil with a viscosity grade above N68. Check the reservoir capacity and motor for the selected model.
Technical documentation

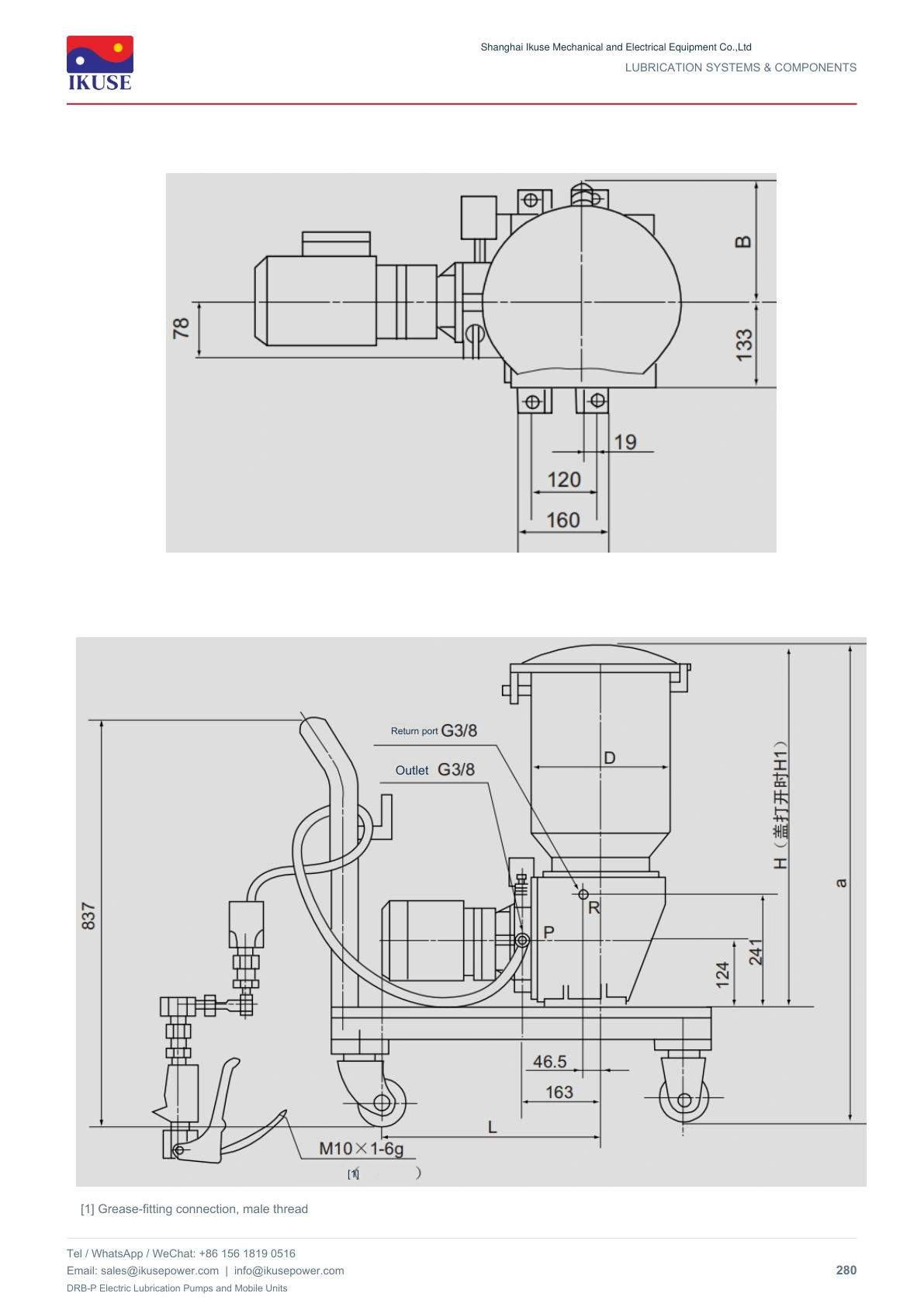

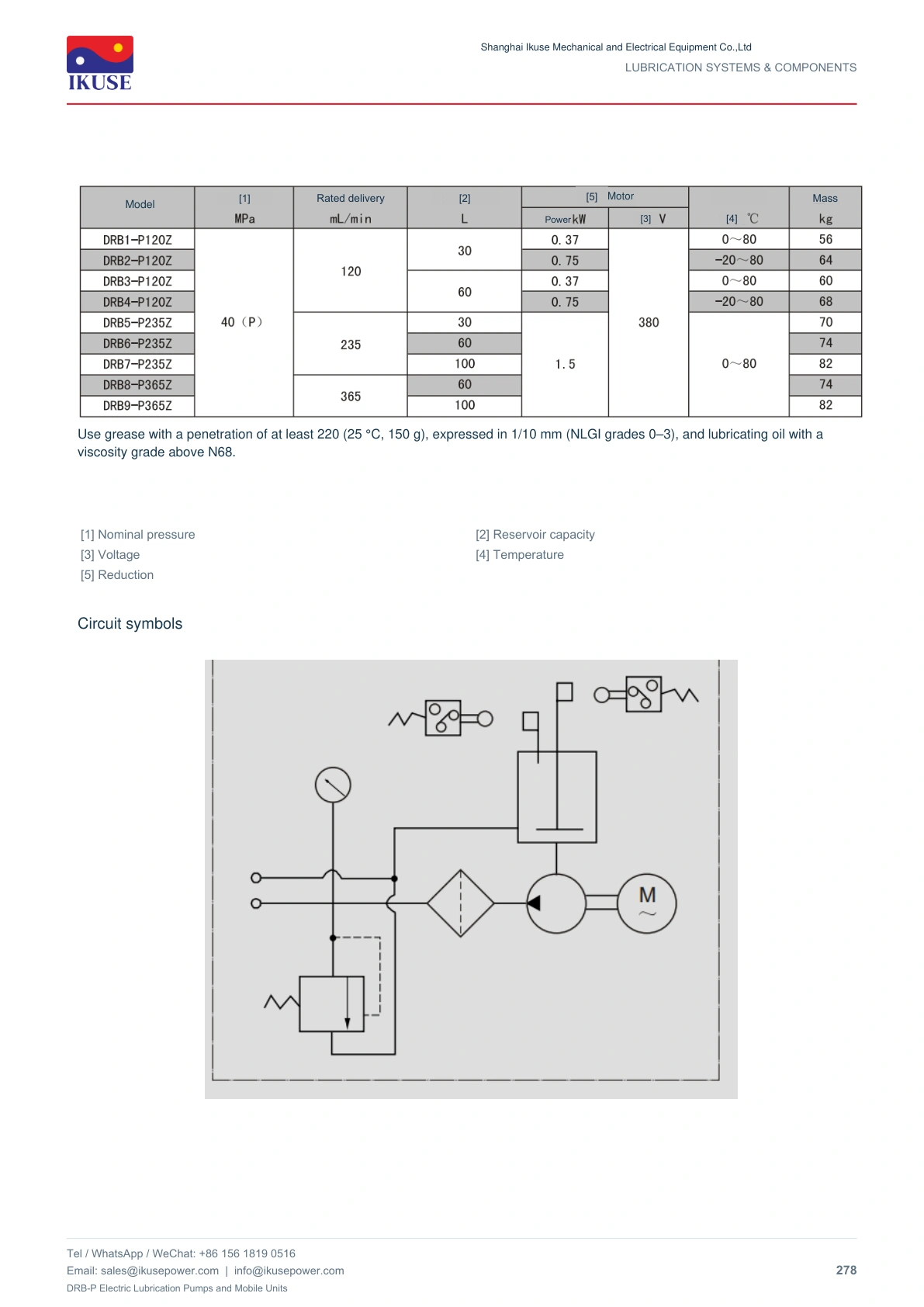

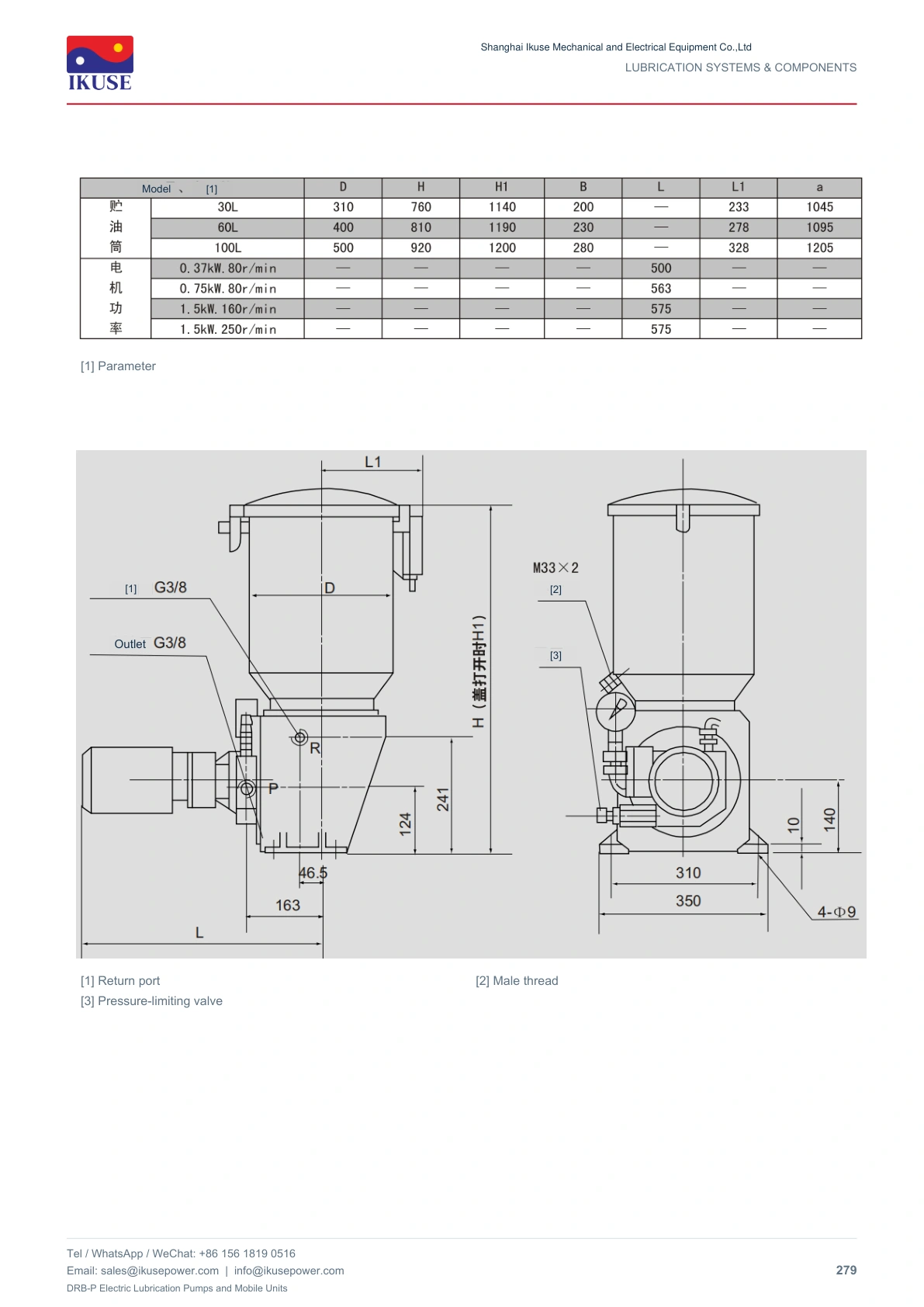

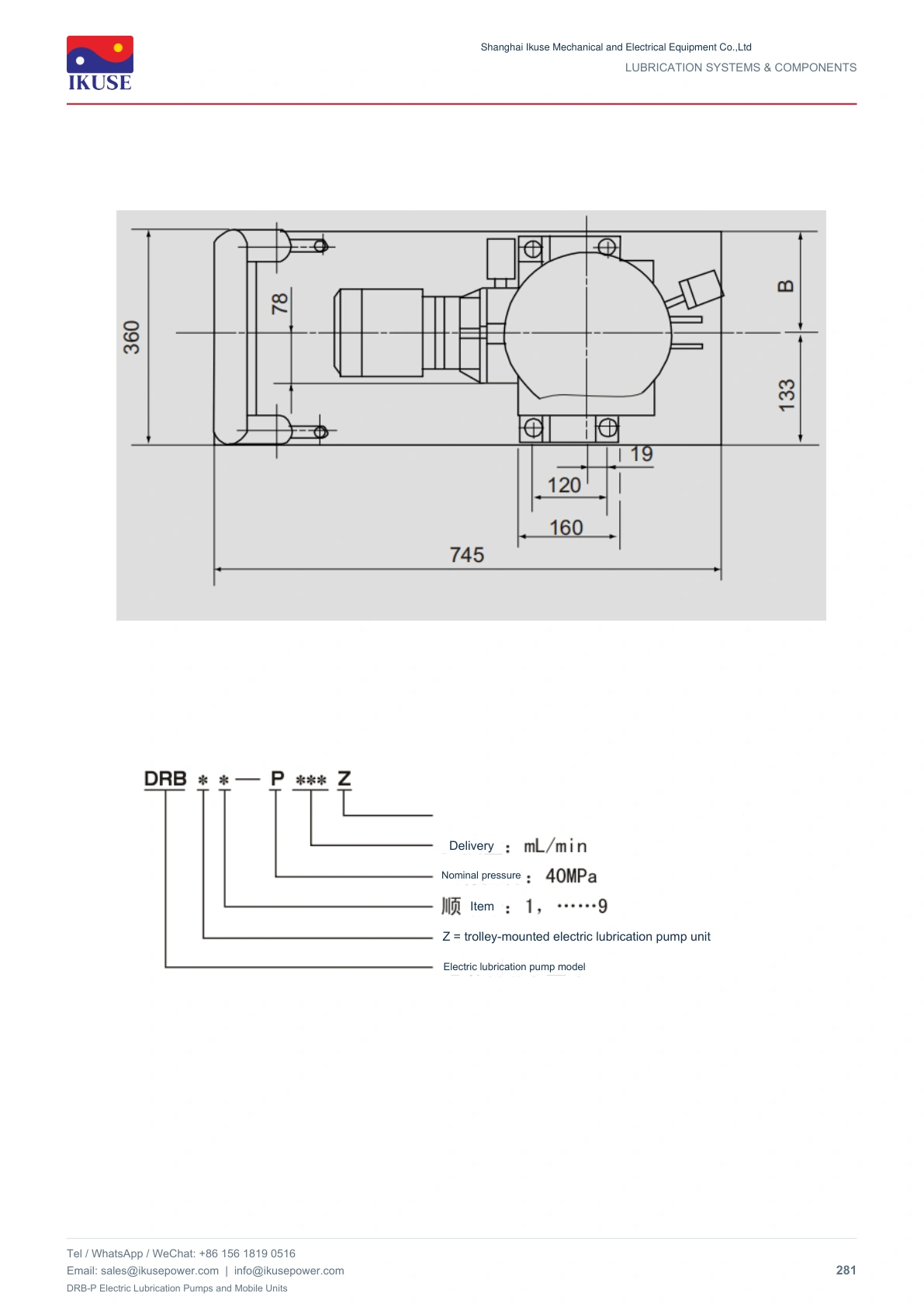

Specifications, installation dimensions and diagrams are provided in the following sheets and the attached PDF. Use the data for the selected model and configuration. Check the connections, operating medium and installation space before ordering.
