Overview
A single-outlet geared-motor pump offered in three delivery sizes for centralized grease systems at 40 MPa, with frequent lubrication, long lines and clustered points. A trolley, high-pressure hose, grease gun and cable can form a mobile unit for individual machines requiring infrequent large doses. Use NLGI 0-2 grease with penetration at least 265 × 0.1 mm at 25 °C and 150 g, or oil above grade N68.
Selection and operation
Intended for intermittent operation. A configuration for continuous operation must be agreed separately.
Technical documentation

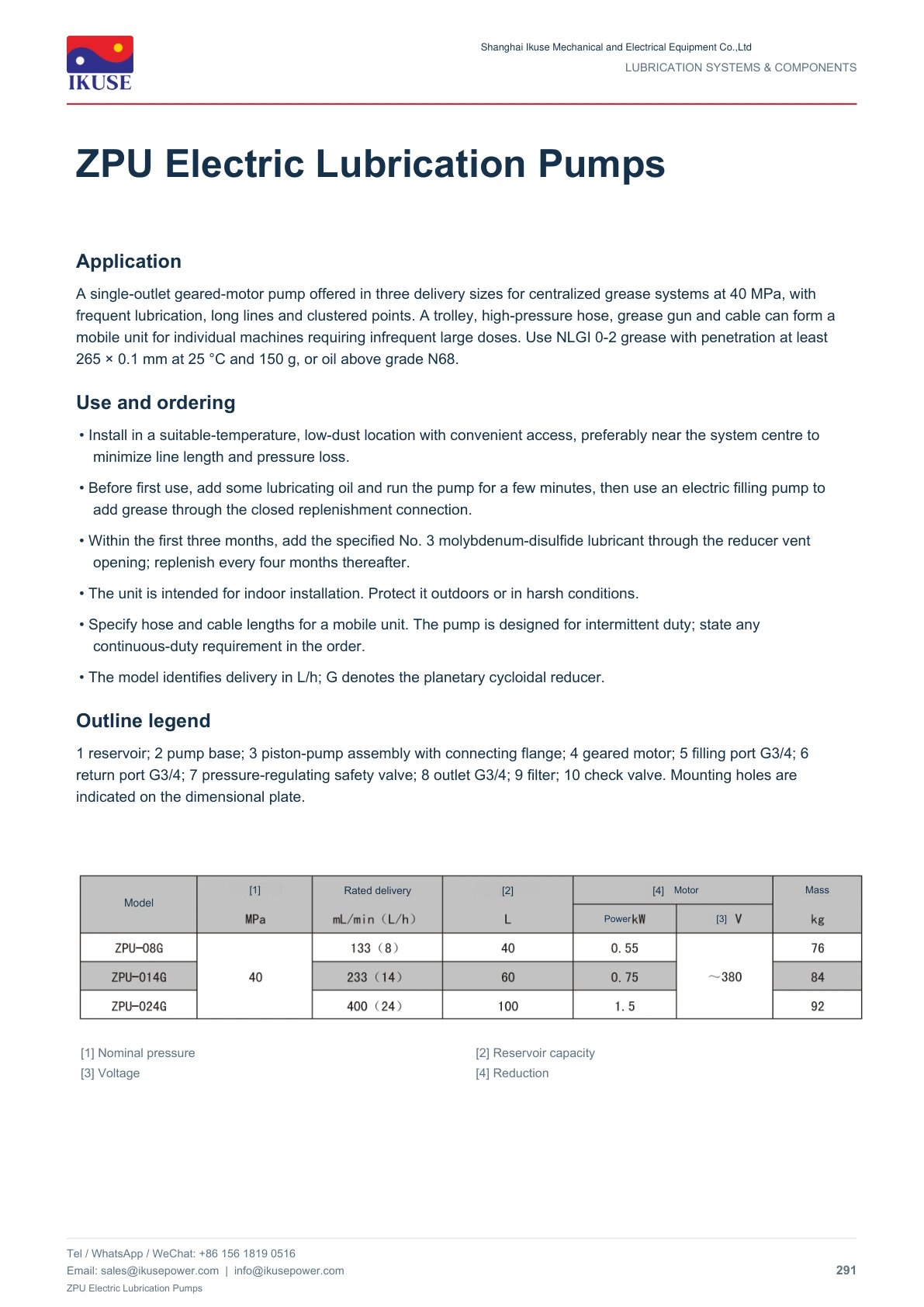

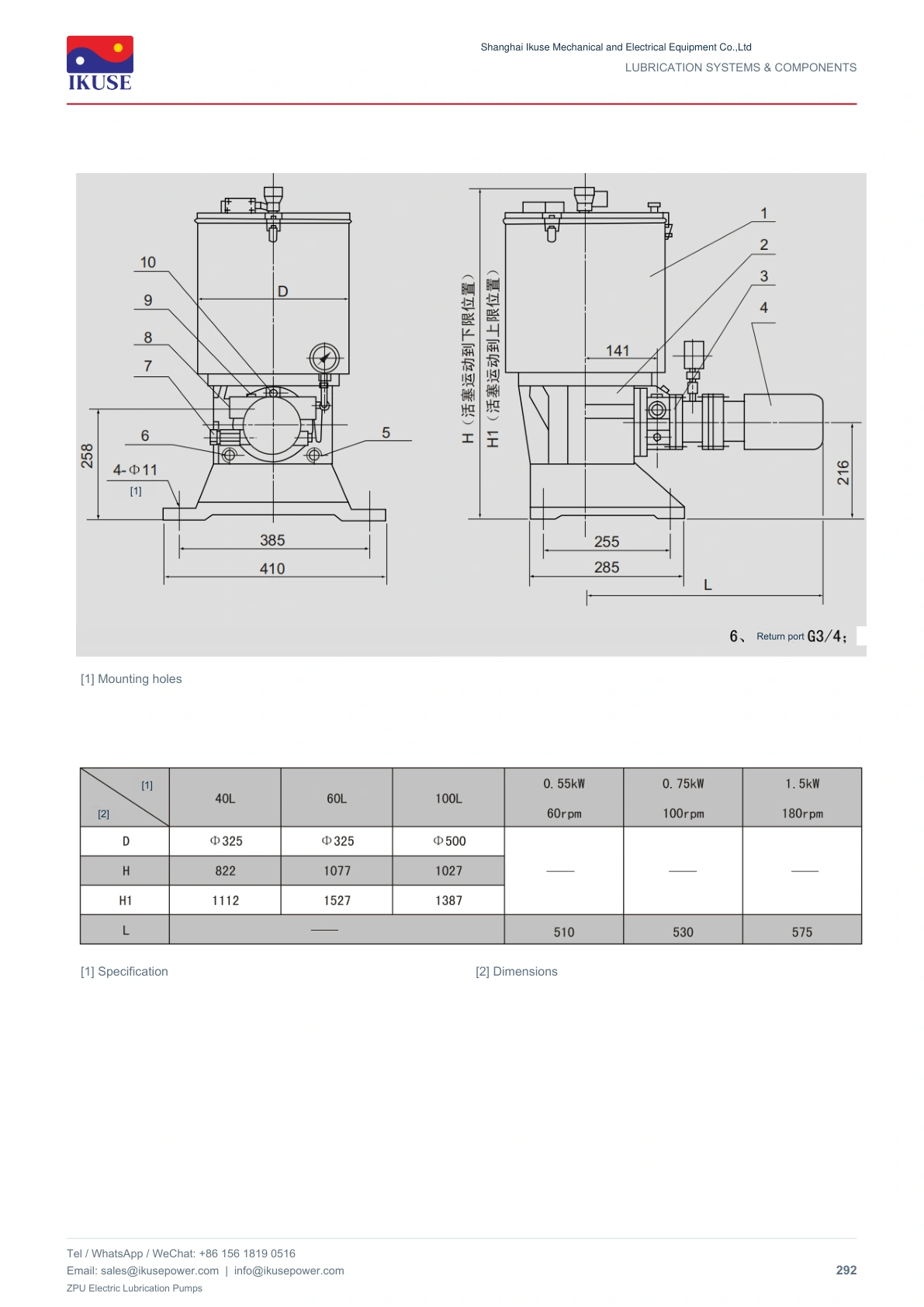

Specifications, installation dimensions and diagrams are provided in the following sheets and the attached PDF. Use the data for the selected model and configuration. Check the connections, operating medium and installation space before ordering.
