Overview

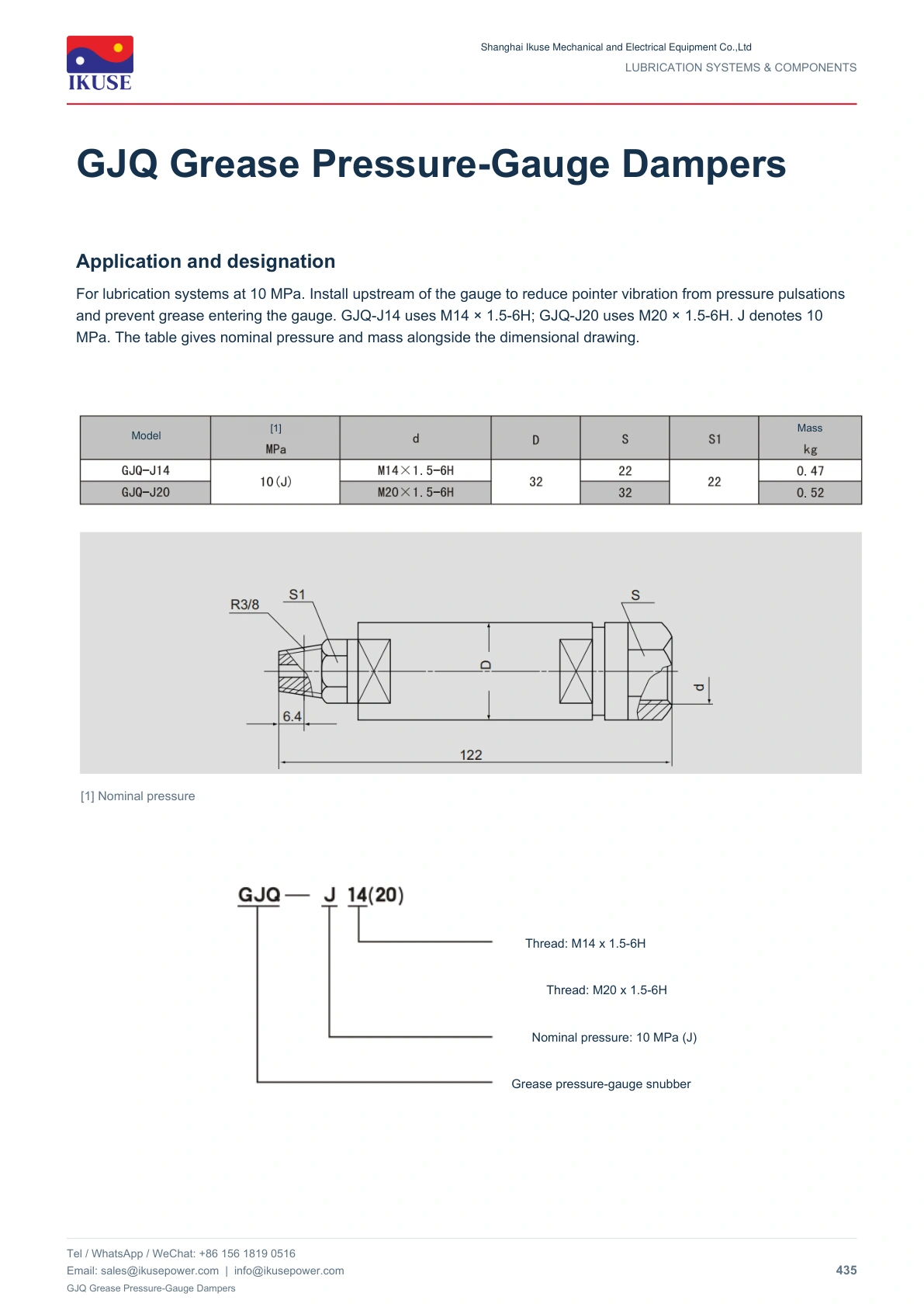

For lubrication systems at 10 MPa. Install upstream of the gauge to reduce pointer vibration from pressure pulsations and prevent grease entering the gauge. GJQ-J14 uses M14 × 1.5-6H; GJQ-J20 uses M20 × 1.5-6H. J denotes 10 MPa. The table gives nominal pressure and mass alongside the dimensional drawing.
Selection and operation
Select GJQ-J14 or GJQ-J20 according to the pressure-gauge connection and thread.
Technical documentation
Specifications, installation dimensions and diagrams are provided in the following sheets and the attached PDF. Use the data for the selected model and configuration. Check the connections, operating medium and installation space before ordering.
