IKUSE · Industrial Valves
Ball, gate, globe, check, control and butterfly valves.
Jacketed Valves

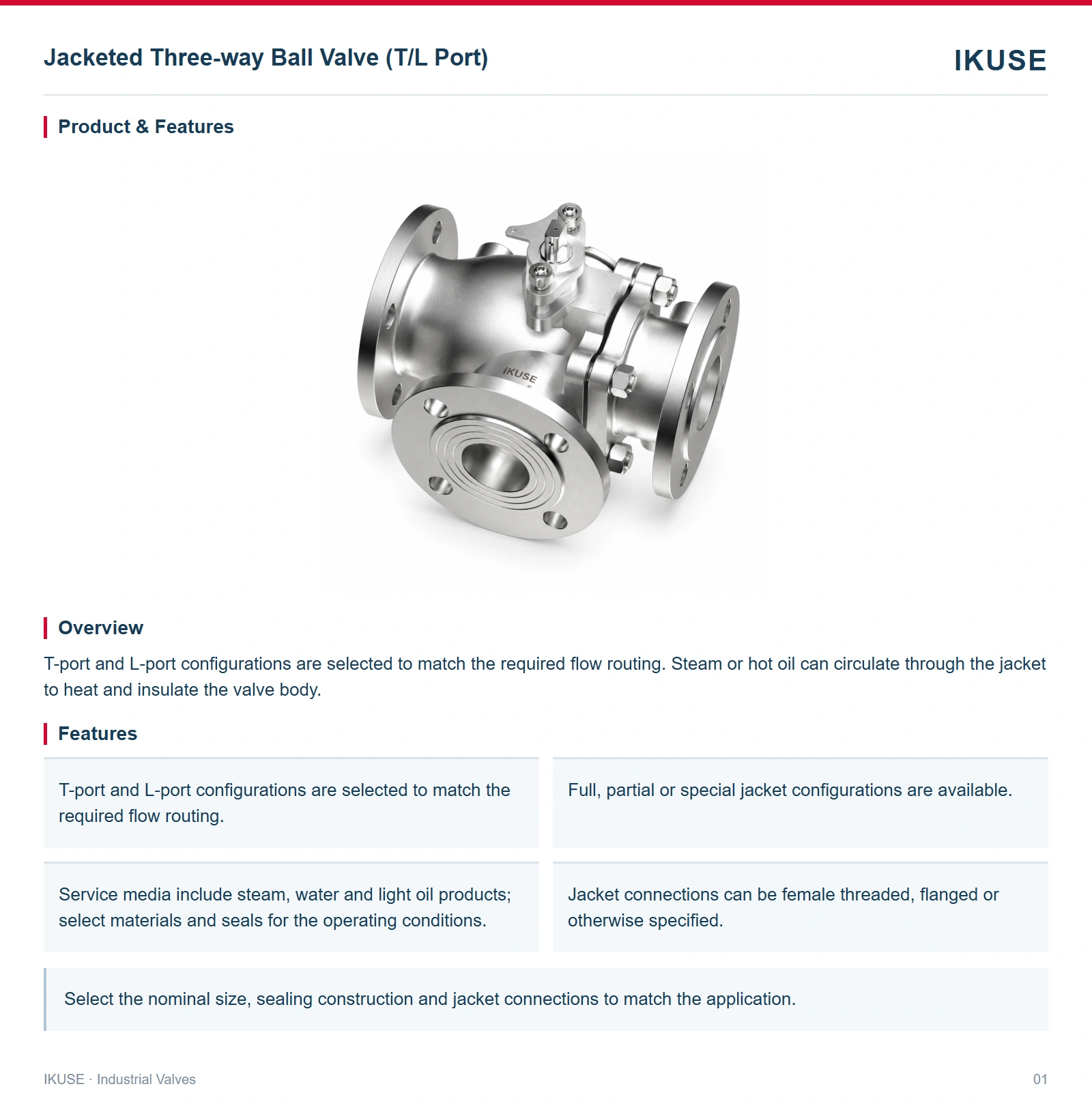

IKUSE Jacketed Three-way Ball Valve (T/L Port)
T-port and L-port configurations are selected to match the required flow routing. Steam or hot oil can circulate through the jacket to heat and insulate the valve body.
Price
Price on request
Submit requirements for a customized quote
PN
1.6 MPa
Seal
PPL
Size
DN15–200
Brand
IKUSE
Body material
304 / 316L
Service Hotline
+86 156 1819 0516

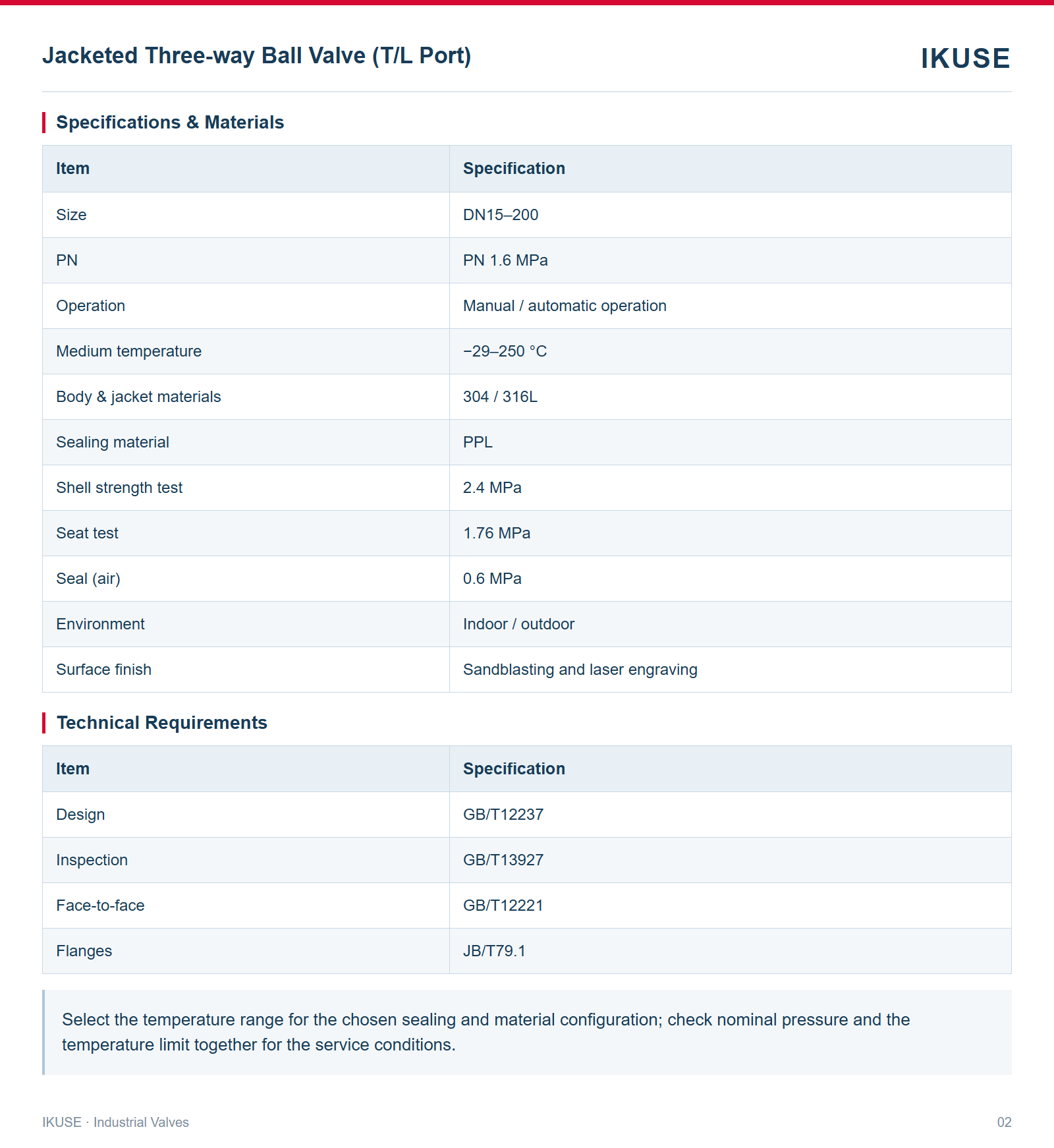

Technical Parameters
Technical Specifications
| PN | 1.6 MPa |
| Seal | PPL |
| Size | DN15–200 |
| Brand | IKUSE |
| Body material | 304 / 316L |
Product Details
Product Details
