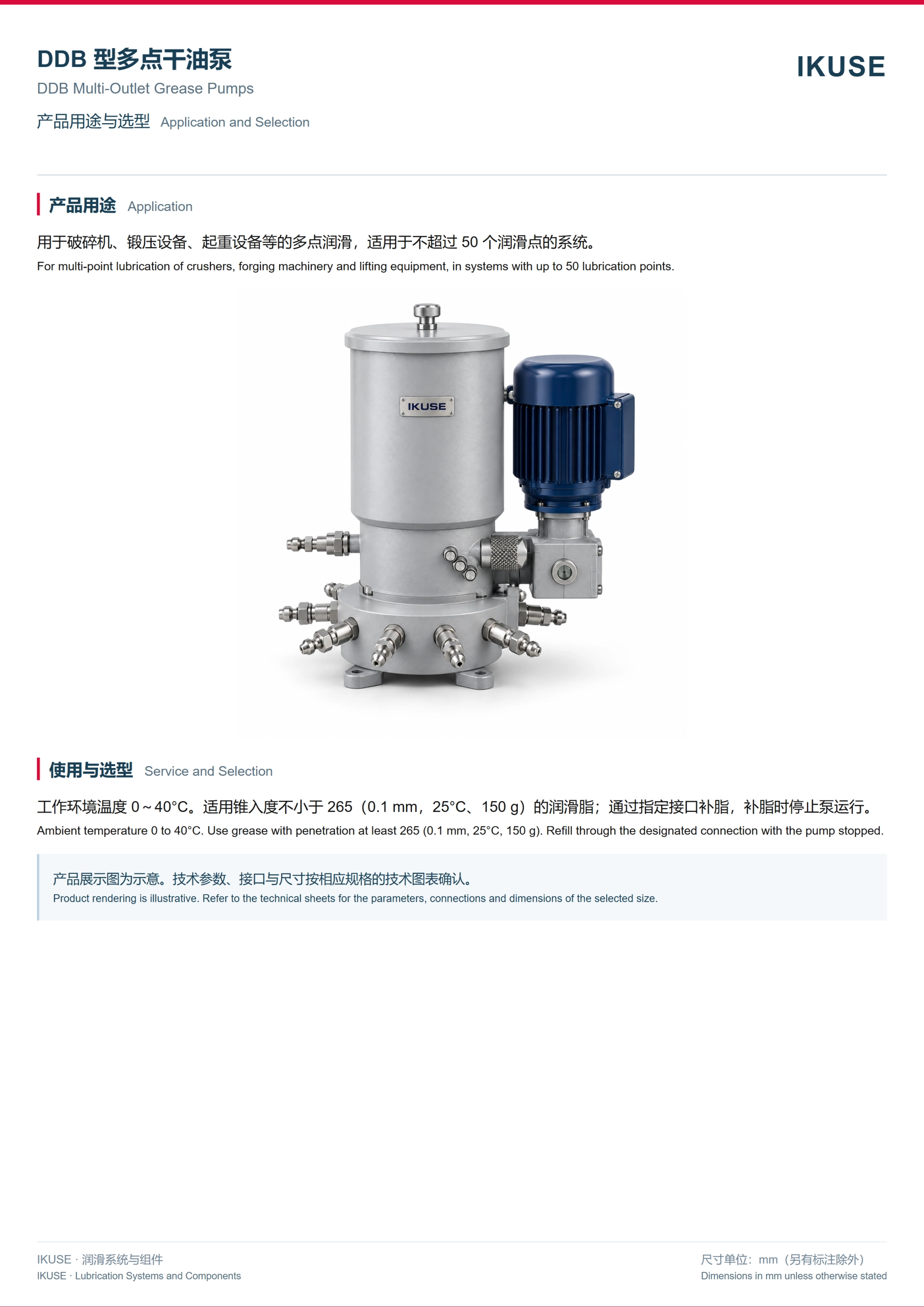

产品概述 / Overview
用于破碎机、锻压设备、起重设备等的多点润滑，适用于不超过 50 个润滑点的系统。
For multi-point lubrication of crushers, forging machinery and lifting equipment, in systems with up to 50 lubrication points.
For multi-point lubrication of crushers, forging machinery and lifting equipment, in systems with up to 50 lubrication points.
使用与选型 / Service and Selection
工作环境温度 0～40°C。适用锥入度不小于 265（0.1 mm，25°C、150 g）的润滑脂；通过指定接口补脂，补脂时停止泵运行。
Ambient temperature 0 to 40°C. Use grease with penetration at least 265 (0.1 mm, 25°C, 150 g). Refill through the designated connection with the pump stopped.
Ambient temperature 0 to 40°C. Use grease with penetration at least 265 (0.1 mm, 25°C, 150 g). Refill through the designated connection with the pump stopped.

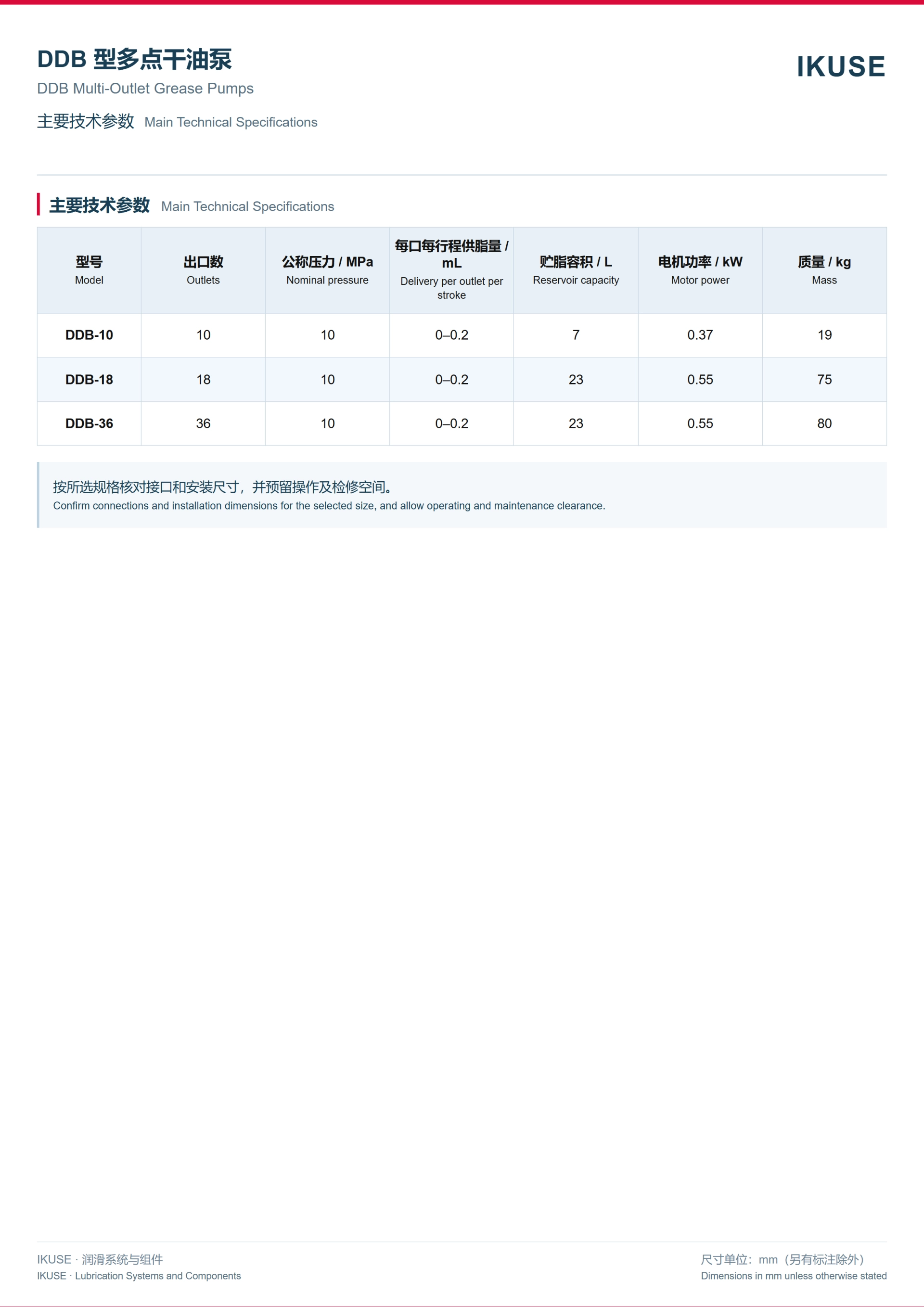

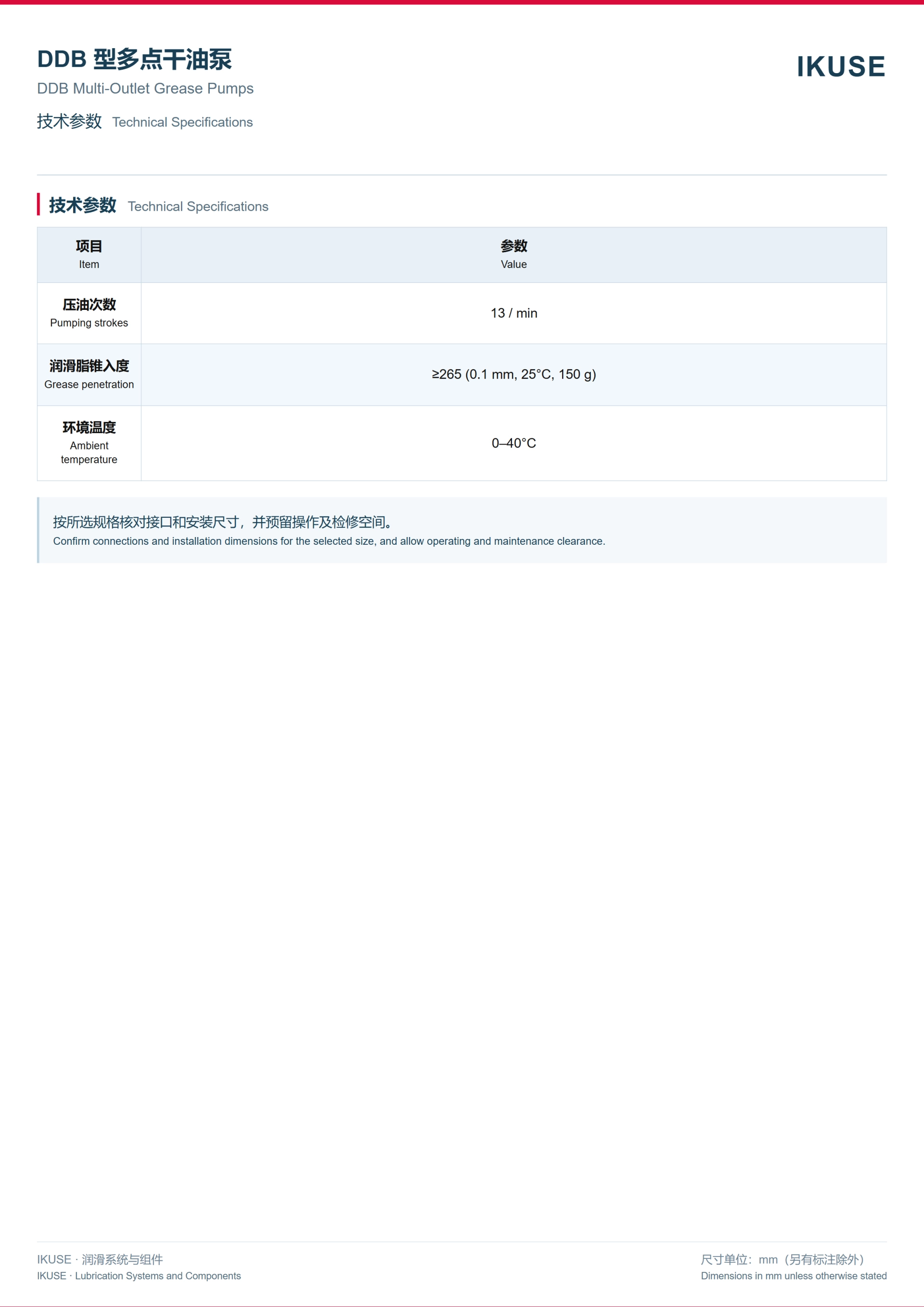

技术资料 / Technical Data

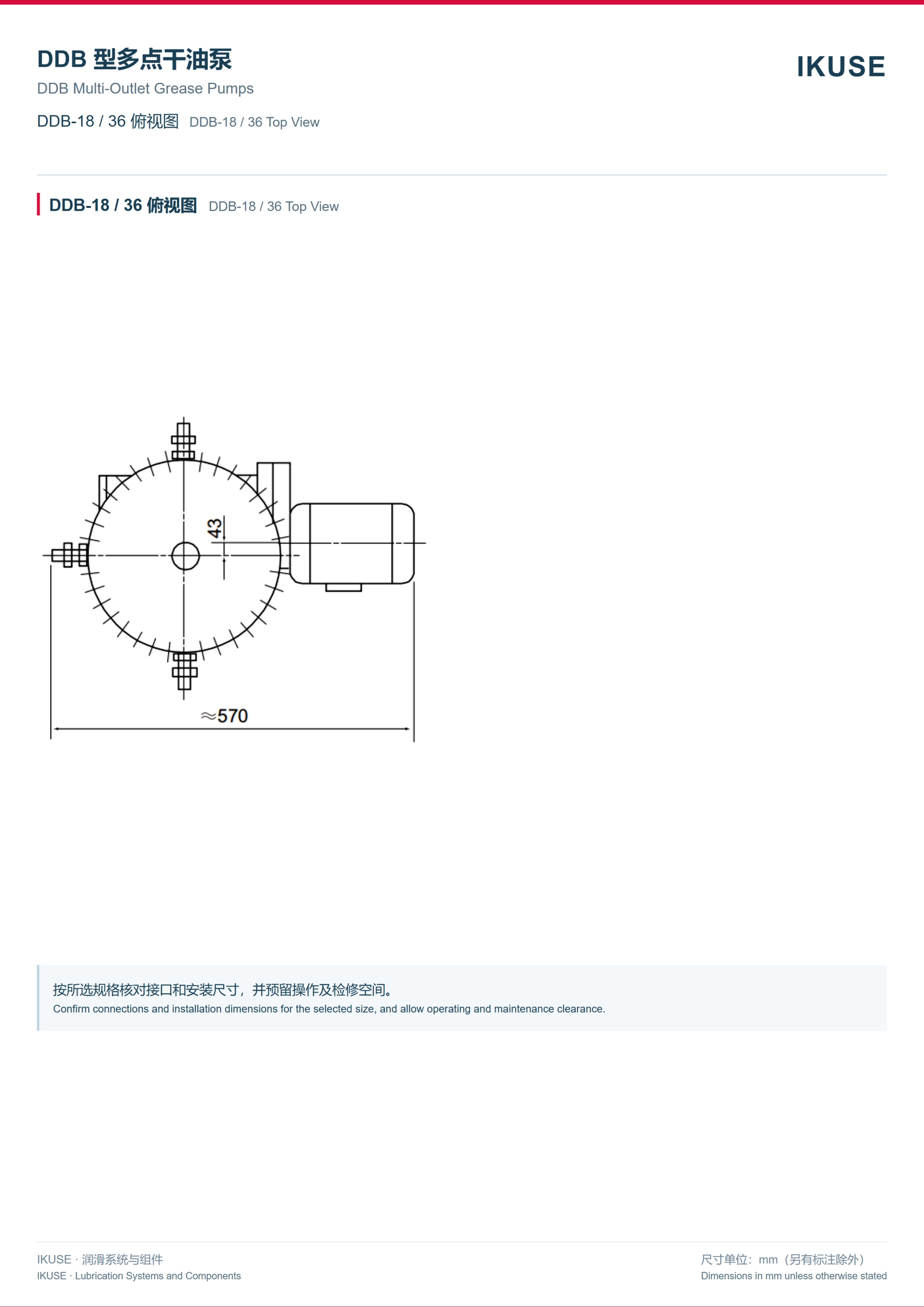

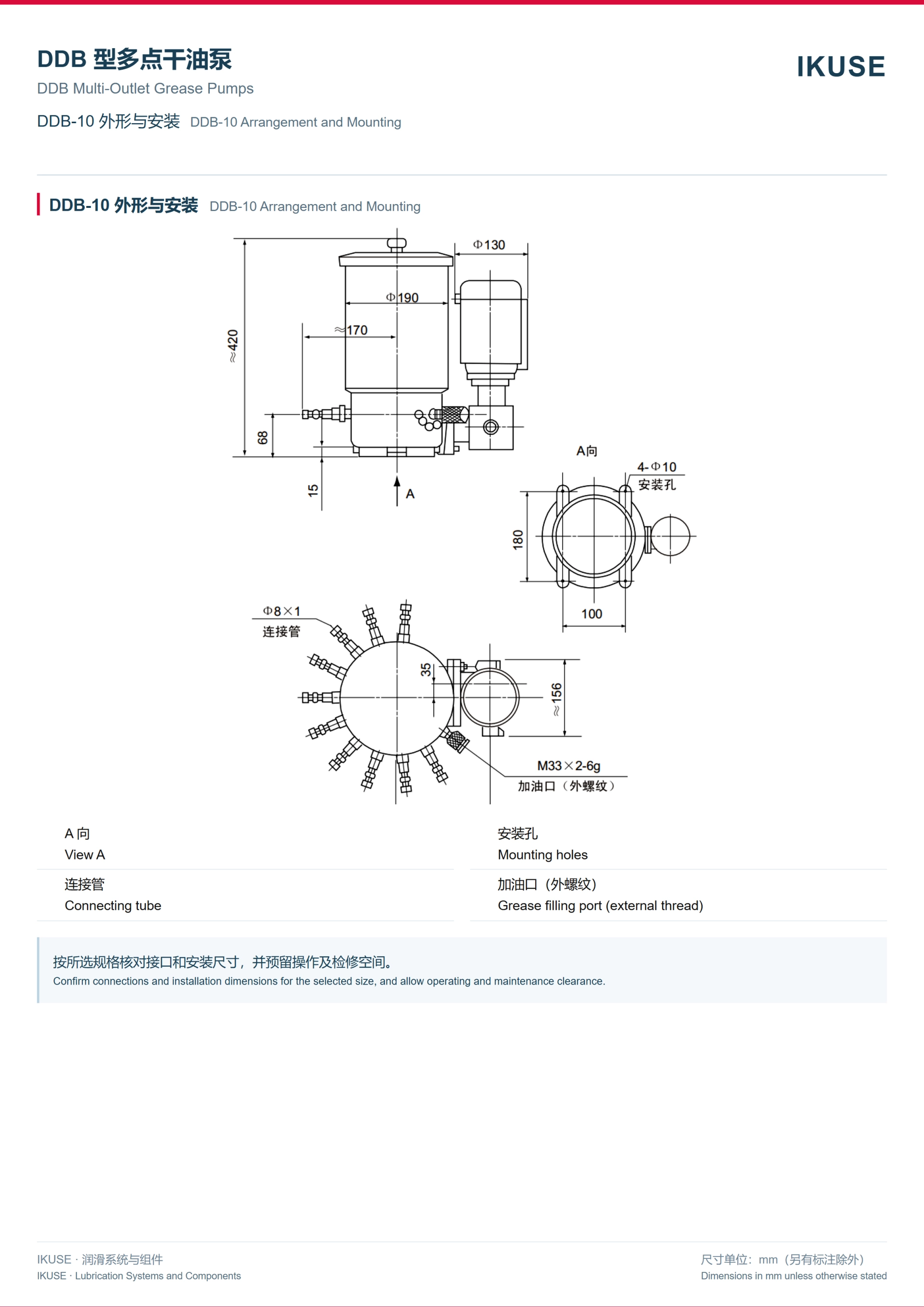

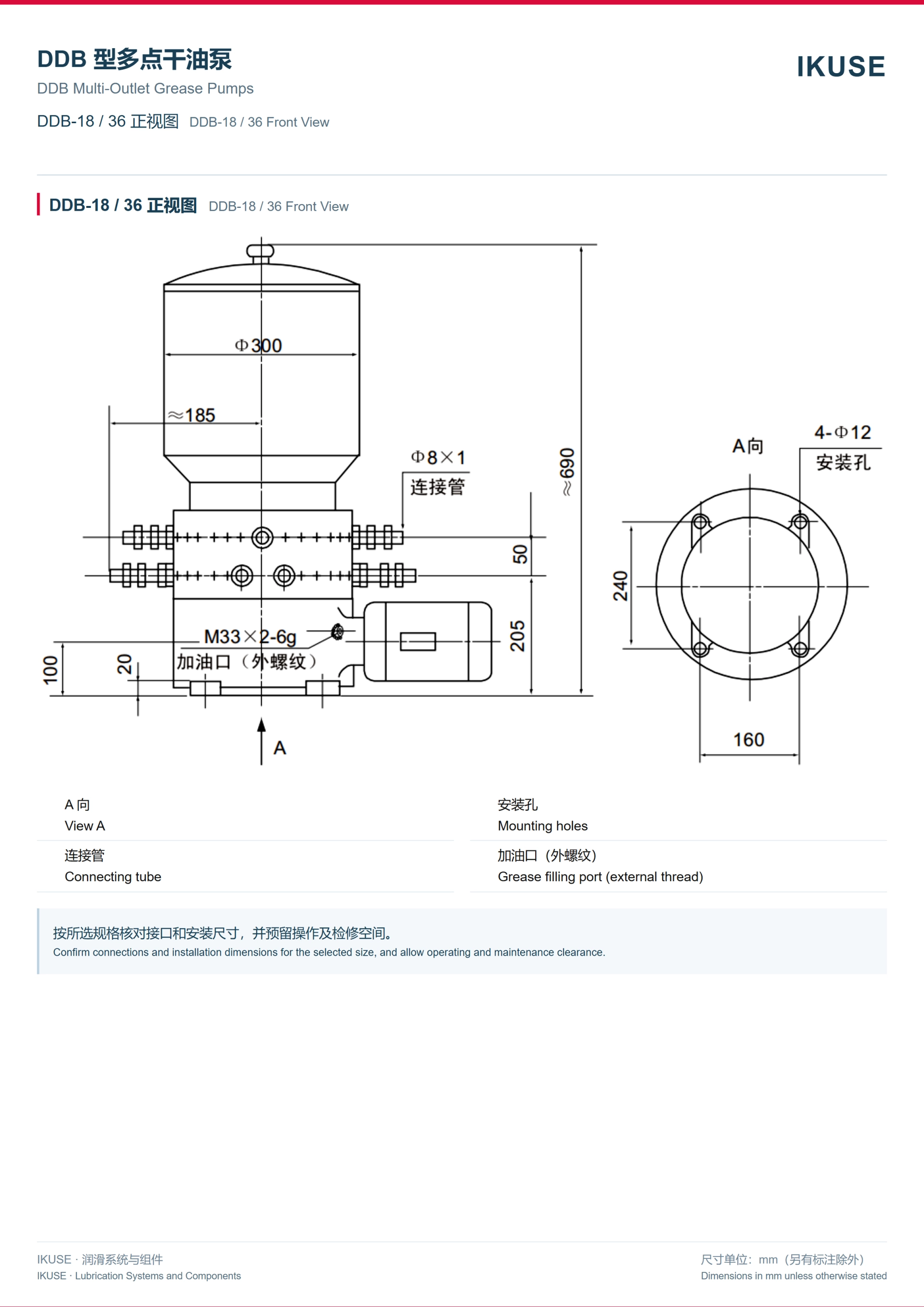

技术图表列出对应系列的规格与结构。按选定型号核对接口及安装尺寸，预留检修空间。产品展示图为示意。

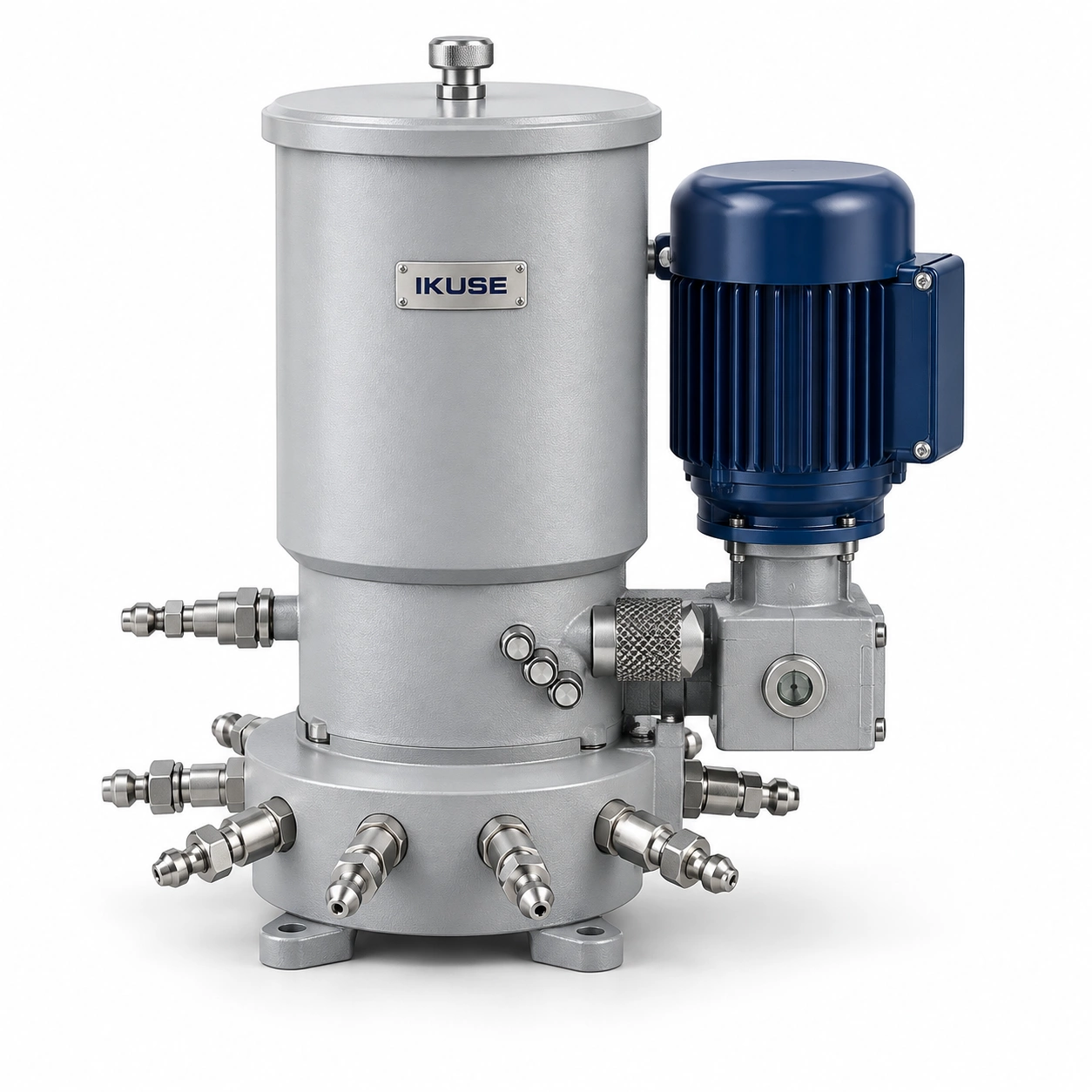

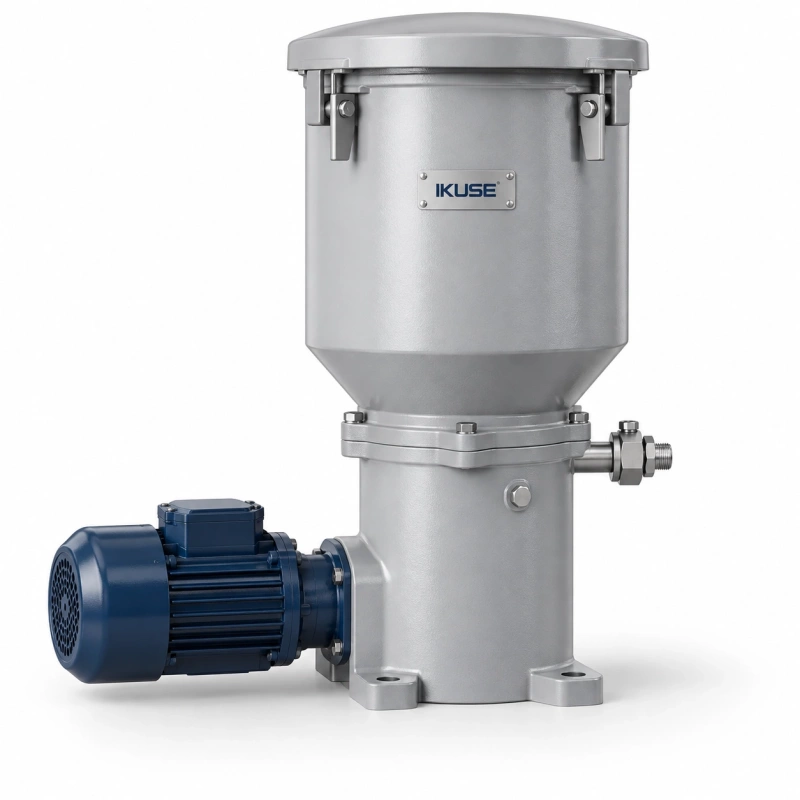

Technical sheets show the corresponding series specifications and construction. Confirm connections and installation dimensions for the selected model and allow maintenance clearance. Product rendering is illustrative.
Technical sheets show the corresponding series specifications and construction. Confirm connections and installation dimensions for the selected model and allow maintenance clearance. Product rendering is illustrative.
