产品概述 / Overview
用于 40 MPa 双线集中润滑系统，主管两端形成 5 MPa 压差时发出换向或监测电信号。
For 40 MPa dual-line systems, signalling changeover or monitoring when a 5 MPa differential develops between the mains.
For 40 MPa dual-line systems, signalling changeover or monitoring when a 5 MPa differential develops between the mains.
选型与使用 / Selection and Service
安装于干燥通风、便于观察的位置，下游设置双线分配器以更新内部润滑剂。
Install in a dry, ventilated and visible location with a downstream dual-line distributor to renew internal lubricant.
Install in a dry, ventilated and visible location with a downstream dual-line distributor to renew internal lubricant.
技术资料 / Technical Data

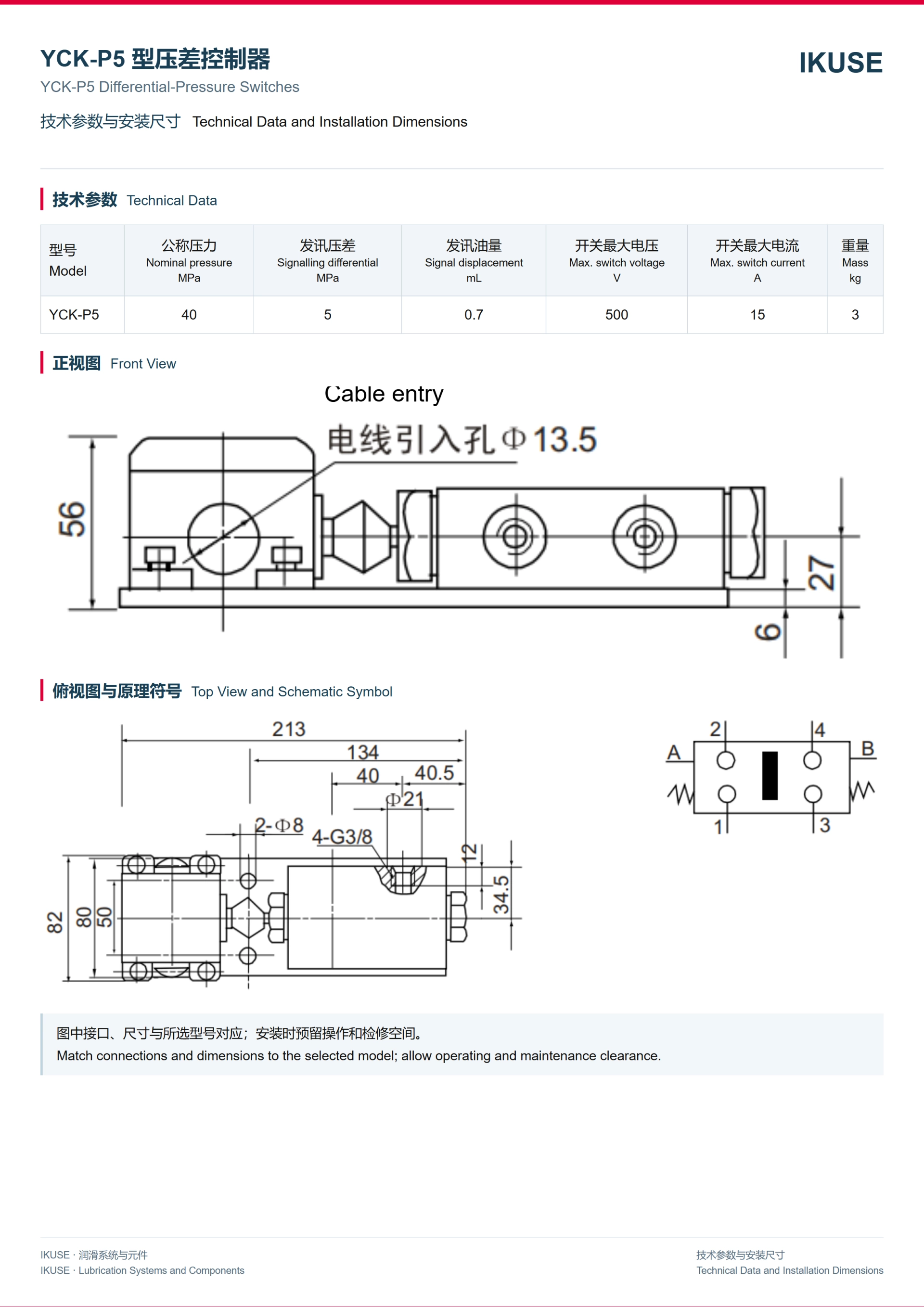

技术图表及安装尺寸按所选型号对应。接口形式、压力等级、适用介质及安装空间请结合对应规格确认。
Use the technical sheets and installation dimensions for the selected model. Check connection form, pressure rating, lubricant compatibility and installation clearance.
Use the technical sheets and installation dimensions for the selected model. Check connection form, pressure rating, lubricant compatibility and installation clearance.
